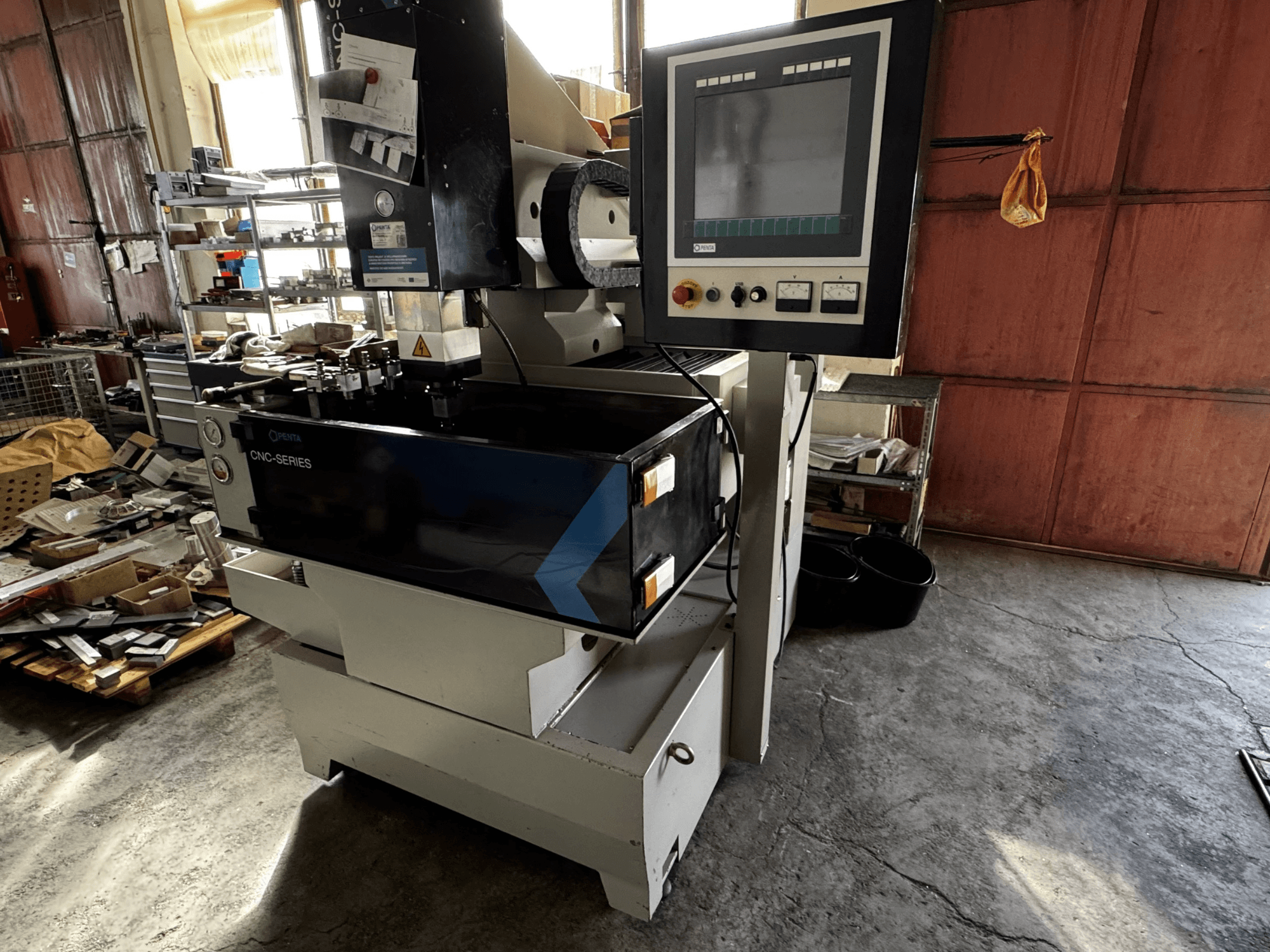

This 4-axis PENTA 433GS CNC was manufactured in 2013. It features a working area of 1000 × 550 × 320 mm and a maximum workpiece weight of 700 kg. The machine is equipped with an automatic electrode changer and a controlled rotary axis (C-axis). If you are looking to get high-quality die-sinking capabilities, consider the PENTA 433GS CNC die-sinking EDM machine we have for sale. Contact us for further details.
Overview
- brand: PENTA
- year: 2013
- MODEL: 433GS CNC
- application type: EDM
- Location: Czech Republic
- machine type: Die-Sinking EDM Machine
Technical Information - PENTA 433GS CNC
Dimensions
- Machine Height: 2300 mm
- Machine Length: 1800 mm
- Machine Weight: 2100 kg
- Table Width: 1700 mm
Movement
- Number of Axes: 4
- X-axis Travel: 400 mm
- Y-axis Travel: 300 mm
- Z-axis Travel: 300 mm
Additional Information
Tank working area X×Y×Z: 970×550×350 mm
Clamping table: 700 × 350 mm
Distance table–quill (min–max): 150–450 mm
Max. workpiece weight: 700 kg
Dielectric volume: 380l
Additional equipment
Automatic electrode changer 5 positions
Integrated C-axis Standard
Automatic dielectric level control
EROWA head
Filtration unit
Central lubrication
High-speed AC drives
Accessories: set of clamps
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
