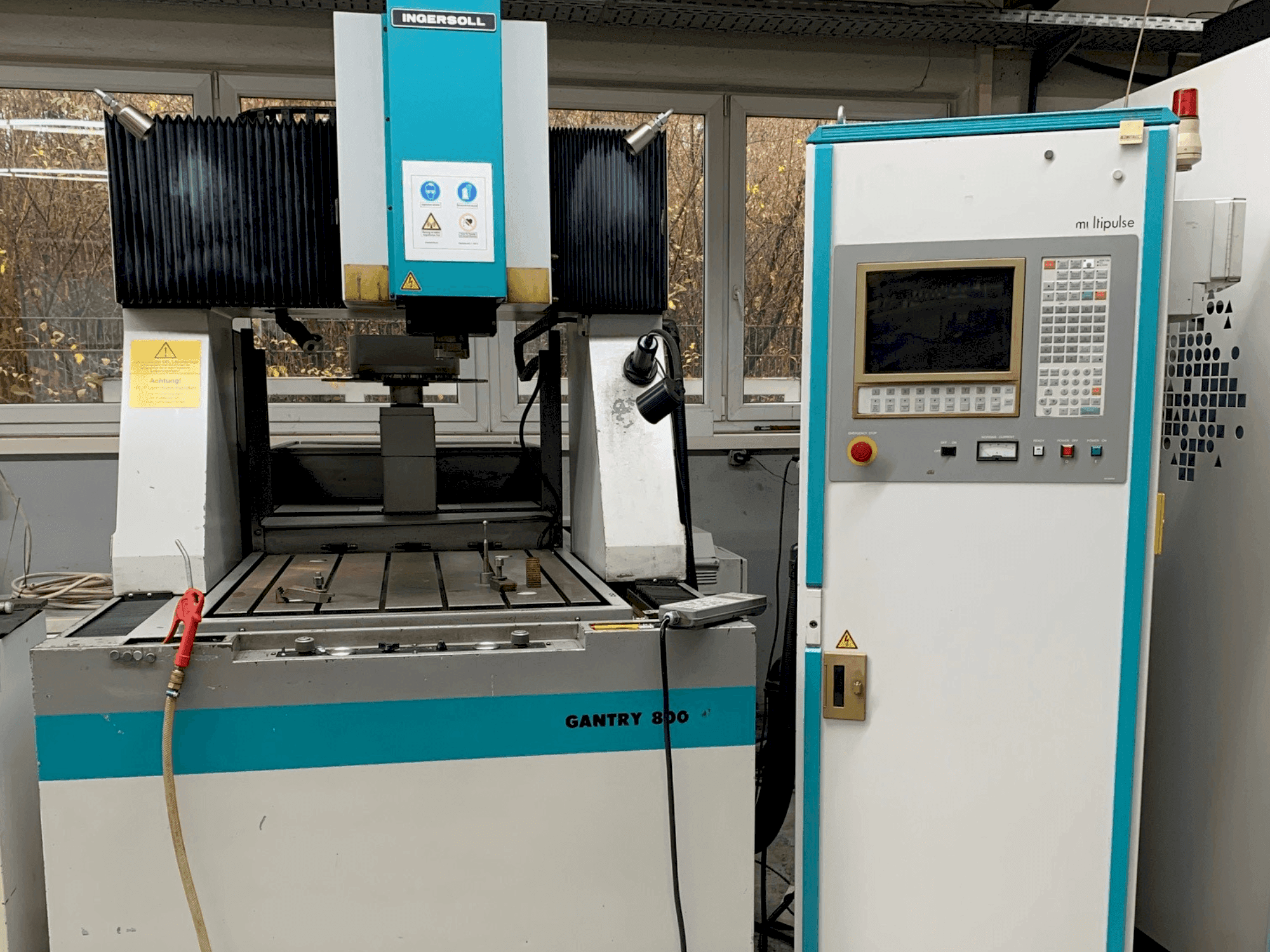

Front view of OPS INGERSOLL Ingersoll Gantry 800  machine

OPS INGERSOLL - Ingersoll Gantry 800DE-EDM-OPS-1998-00001

£ 14,950
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis OPS INGERSOLL Ingersoll Gantry 800 die-sinking EDM machine was manufactured in 1998. It features a robust 5600kg frame, a worktable supporting up to 2000kg, and travels of 550x850x450mm within the work container. The integrated C-axis offers a speed of 1-20 min-1 with a load capacity of 50/15kg. If you are looking to get high-quality die-sinking capabilities, consider the OPS INGERSOLL Ingersoll Gantry 800 machine we have for sale. Contact us for more information.

Overview

  • brand: OPS INGERSOLL
  • year: 1998
  • MODEL: Ingersoll Gantry 800
  • application type: EDM
  • Location: Germany
  • machine type: Die-Sinking EDM Machine
  • availability: Immediately

Technical Information - OPS INGERSOLL Ingersoll Gantry 800

General Data

  • Measurements width: 2650 mm
  • Measurements depth: 2400 mm
  • Measurements height: 2680 mm
  • Machine weight: 5600 kg

Main drive

  • Number of axis: 4

Movement

  • X-AXIS Movement: 550 mm
  • Y-AXIS Movement: 850 mm
  • Z-AXIS Movement: 450 mm

Table

  • Table load: 2000 kg

    Additional Equipment

    • - Training Folder
    • - Operating Instructions
    • - Machine Documentation
    • - Programming Instructions
    • - Recooling System
    • - Diskette for the Software
    • - 20 Holders Equipped with the REF System
    • - 2 Holders with Collets
    • - Push Button

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Connected load: 12 kva
        • - Fuse protection: 25 a
        • - Control unit system: cnc dialog 32bit cnc // control unit drive type: digital ac servo motors
        • - Control unit travel speed max. (x, y, z): 2000 mm/min
        • - Y travel for electrode change and loading position: 1180 mm
        • - Working tank internal dimensions: 800x1100x480 mm
        • - Electric height programmable/automatic max: 450 mm
        • - Support surface: 760x1000 mm
        • - Max. Distance between tool carrier plate and worktable: 585 mm
        • - Electrode weight permissible: single electrode 15 kg / changer total load 60 kg

      Extra information

      • - Machine History NC Working: 1284 hours Program 2 Works: 540 hours In Progress 3: 500 hours

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
