CHARMILLES - Roboform 2000 AT-EDM-CHA-1995-00002

£ 10,297
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

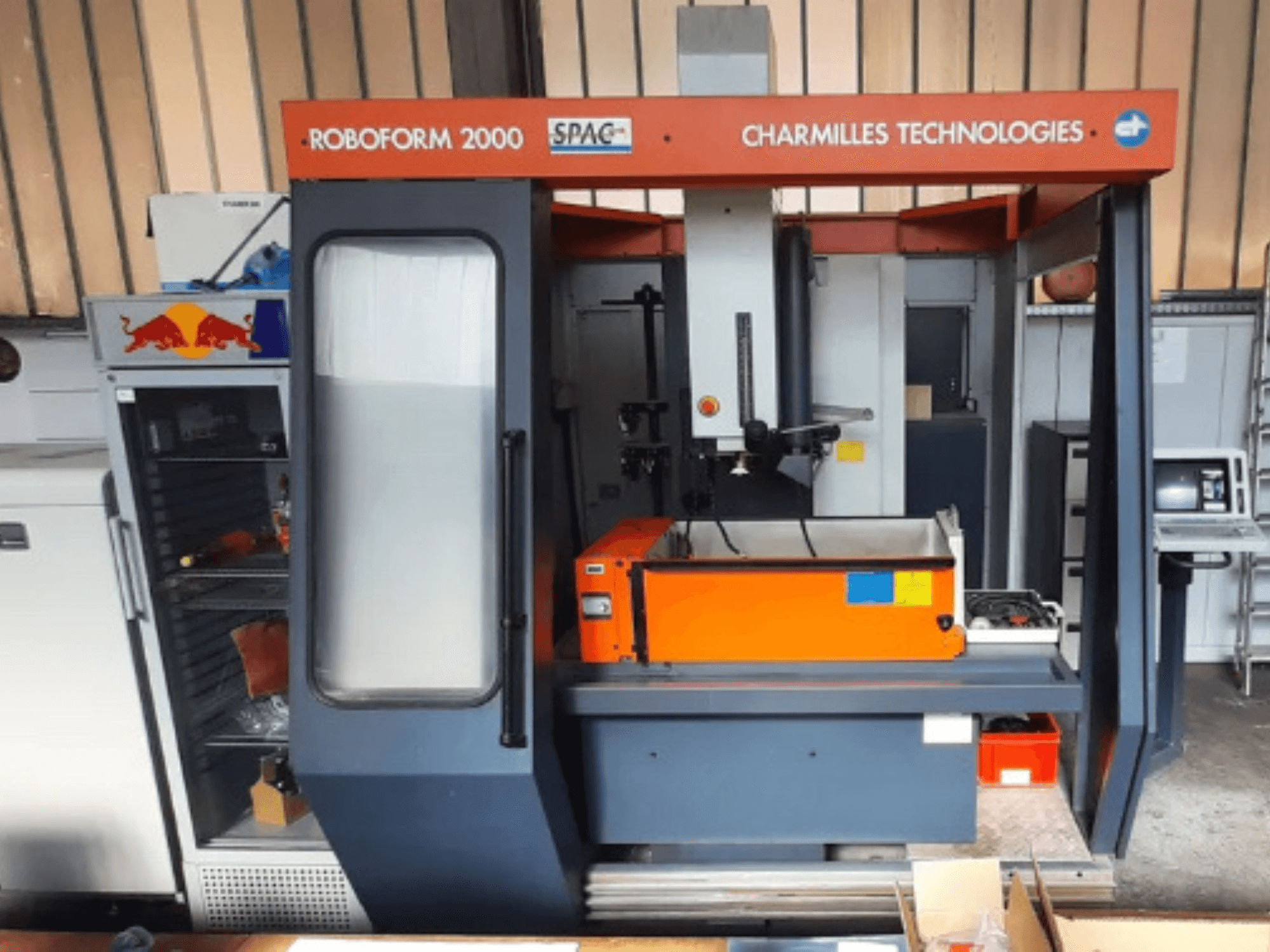

This 3-axis CHARMILLES Roboform 2000 was manufactured in 1995. It features a maximum workpiece dimension of 880 × 550 × 225 mm and operates with a maximum machining current of 64 A. With only 1,497 operating hours, this machine has been used primarily for training purposes. If you are looking to get high-quality die-sinking capabilities, consider the CHARMILLES Roboform 2000 CNC Die-Sinking EDM machine we have for sale. Contact us for further details.

Overview

  • brand: CHARMILLES
  • year: 1995
  • MODEL: Roboform 2000
  • production hours: 1497
  • application type: EDM
  • Location: Austria
  • machine type: Die-Sinking EDM Machine

Technical Information - CHARMILLES Roboform 2000

Dimensions

  • Machine Weight: 3450 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 320 mm

Additional Information

  • Operating Hours: Only 1,497 h (used as a training machine)

  • Measuring Resolution: 0.5 µm

  • Machine Weight: 3,450 kg

  • Max. Workpiece Dimensions (L × W × H): 880 × 550 × 225 mm

  • Max. Machining Current: 64 A

  • Phases: 3

  • Frequency: 50 Hz

  • Voltage: 380/400 V

  • Current: 16 A

  • Power: 5 kVA

  • CE Marking: Yes

  • With accesories as shown in the pictures

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
