- ➤ Used ONA AE 400 - Wire EDM For Sale | gindumac.com

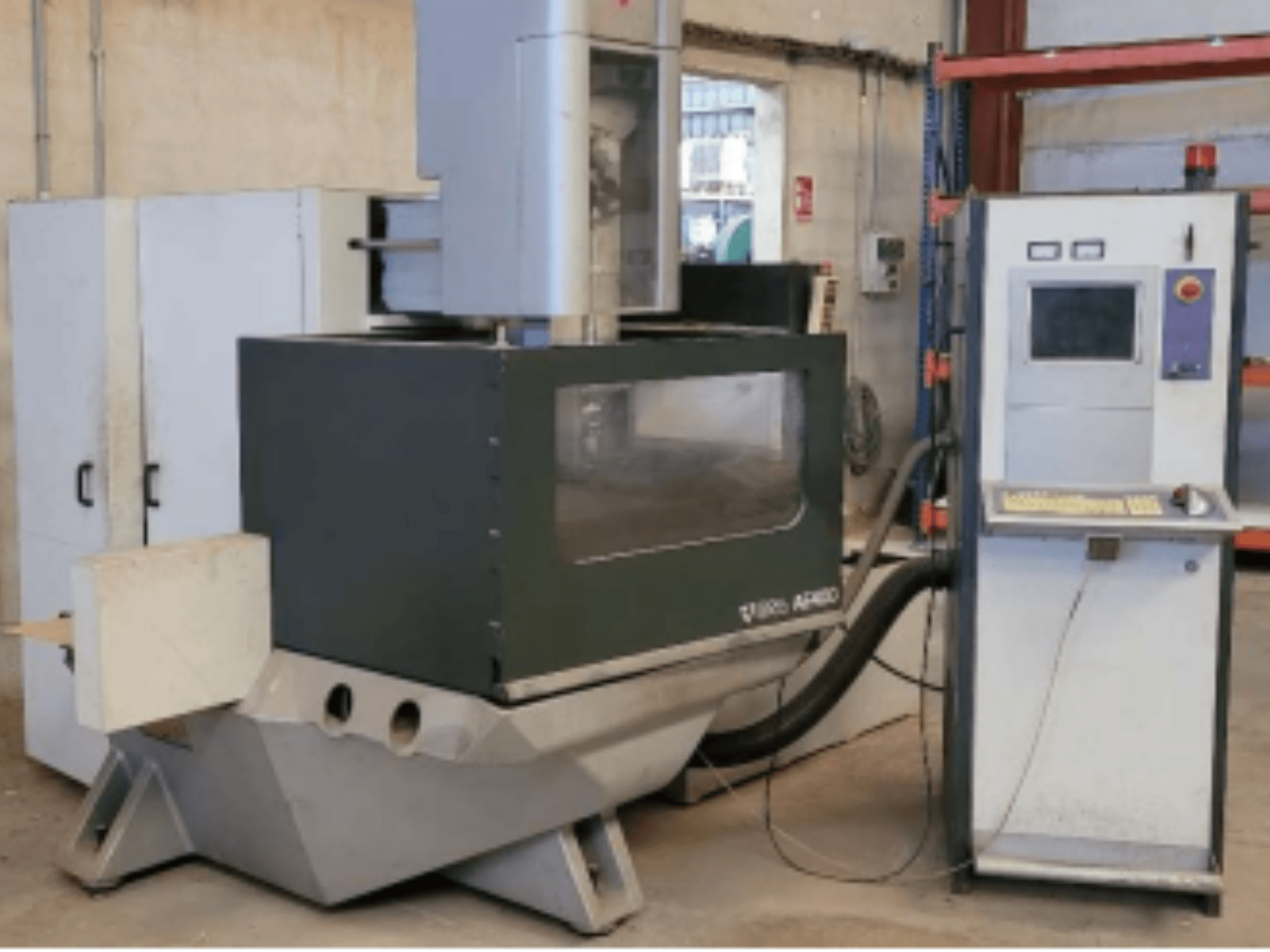

This 5-axis ONA AE 400 wire EDM machine was manufactured in 2005. It features a maximum workpiece dimension of 800 x 500 x 250 mm and can handle a maximum workpiece weight of 500 kg. The machine also includes a dielectric tank capacity of 600 liters. If you are looking to get high-quality wire EDM capabilities, consider the ONA AE 400 machine we have for sale. Contact us for further details.
Overview
- brand: ONA
- year: 2005
- MODEL: AE 400
- application type: EDM
- Location: Spain
- machine type: Wire EDM Machine
Technical Information - ONA AE 400
Dimensions
- Machine Weight: 2300 kg
Movement
- Number of Axes: 5
- X-axis Travel: 400 mm
- Y-axis Travel: 300 mm
- Z-axis Travel: 250 mm
Technical Specification
- Max. Wire Diameter: 0.3 mm
- Min. Wire Diameter: 0.1 mm
Additional Information
U/V axis travel: 80 x 80 mm
Max. workpiece dimensions: 800 x 500 x 250 mm
Max. workpiece weight: 500 kg
Max. taper angle: ±20° (at 100 mm height)
Dielectric tank capacity: 600 liters
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
