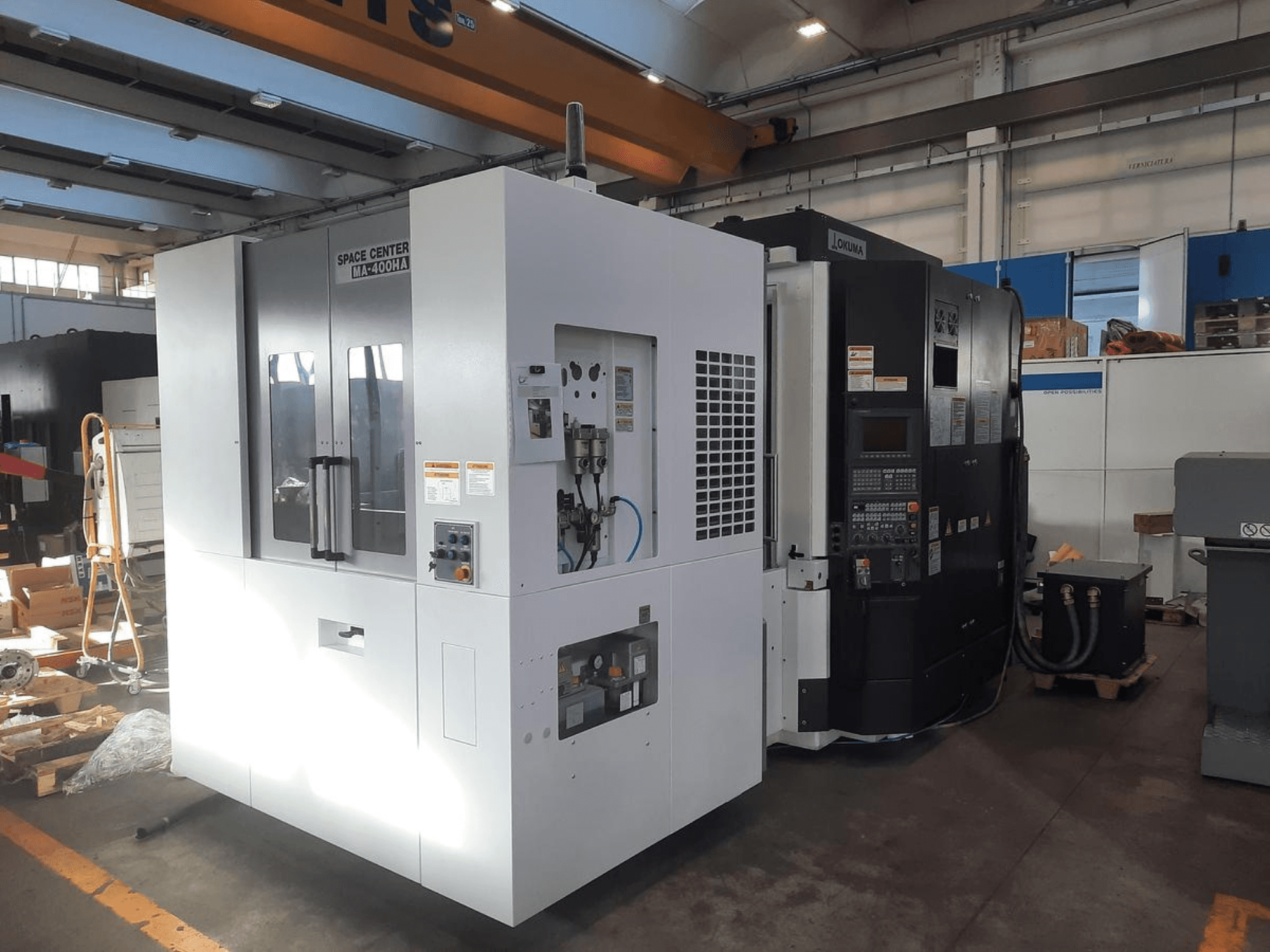

Front view of SPACE CENTER IM-400HAA and OKUMA CNC machines, showcasing various controls and manufacturer labels.
Front view of SPACE CENTER IM-400HAA and OKUMA CNC machines, showcasing various controls and manufacturer labels.

Okuma - MA 400 HAIT-MIL-OKU-1992-00001

£ 87,661
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis Okuma MA 400 HA horizontal machining center was manufactured in 2005. It features a 400 × 400 mm working surface, 560 mm X-axis travel, 610 mm Y-axis travel, and 625 mm Z-axis travel. The machine supports a maximum table load of 400 kg and offers rapid feeds up to 60 m/min. Consider the opportunity to buy this Okuma MA 400 HA horizontal machining center. Contact us for more information about this machine.

Overview

  • brand: Okuma
  • year: 2005
  • MODEL: MA 400 HA
  • application type: Milling
  • Location: Italy
  • machine type: Horizontal Machining Centre

Technical Information - Okuma MA 400 HA

Dimensions

  • Machine Weight: 10000 kg

Movement

  • X-axis Travel: 560 mm
  • Y-axis Travel: 610 mm
  • Z-axis Travel: 625 mm

Additional Information

  • Rapid feed X/Y/Z: 60 m/min

  • Maximum cutting feed: 60000 mm/min

  • Positioning accuracy X/Y/Z: ±0.004 mm (Std JIS)

  • Repeatability X/Y/Z: ±0.0015 mm / 100 mm (Std JIS)

  • Working surface: 400 × 400 mm

  • Maximum table load: 400 kg

  • Maximum workpiece rotation dimensions (Ø × H): 600 × 710 mm

  • Pallet change time: 7 s

  • Tool holder type: DIN 40

  • Tool magazine stations (option): 40

  • Tool position management: Fixed > 100 positions

  • Tool change time (tool/tool): 1.3 s

  • Tool change time (chip/chip): 3.0 s

  • Maximum tool diameter adjacent: 100 mm

  • Maximum tool diameter non-adjacent: 150 mm

  • Maximum tool length: 300 mm

  • Maximum single tool weight: 10 kg

  • Maximum spindle speed (standard/option): 8000 rpm

  • Maximum spindle power (option): 18/22 kW

  • Maximum spindle torque (option): 270 Nm

  • Floor space (2-pallet version): 2.40 × 4.45 m

  • Maximum machine height: 2.78 m

  • Compressed air pressure: 4–6 bar

  • Total installed power: 38 kVA

  • Condition: Machine revised completely, like new

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
