Okuma - GENOS M560-V-eLT-MIL-OKU-2021-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Used Vertical Machining centre Okuma GENOS M560-V-e - 2021 - for sale | gindumac.com

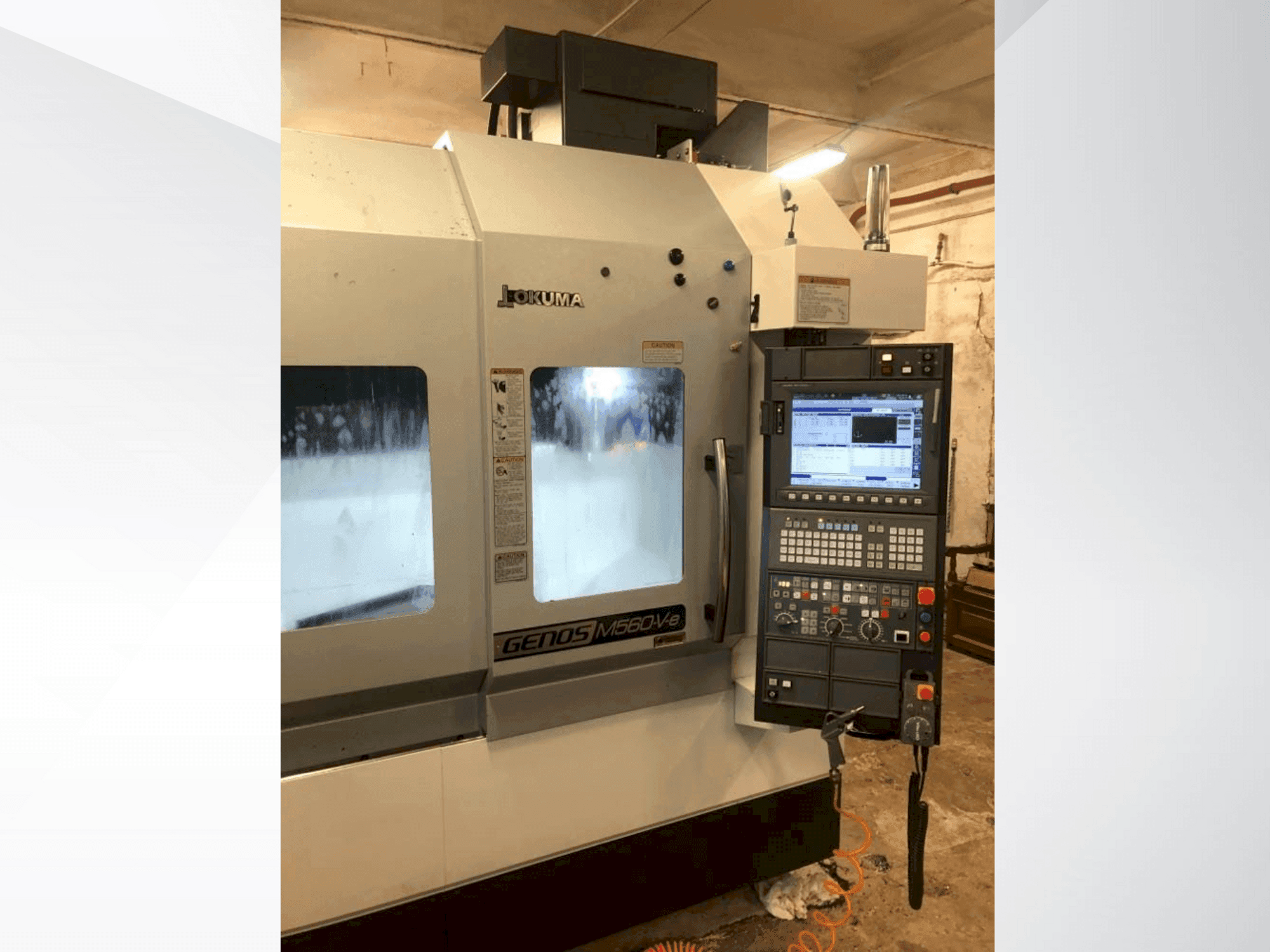

This 4-axis OKUMA vertical machining centre was manufactured in 2021. It features an impressive travel range with X-axis at 1,050 mm, Y-axis at 560 mm, and Z-axis at 460 mm. The spindle can reach speeds up to 15,000 min^-1 and supports a maximum load capacity of 900 kg. Rapid traverse rates are 40 m/min for X and Y axes and 32 m/min for Z-axis, enhancing productivity. The machine accommodates 32 tools with a max tool diameter of 125 mm when adjacent slots are vacant. Reach out for further details regarding this vertical machine center.
Overview
- brand: Okuma
- year: 2021
- MODEL: GENOS M560-V-e
- application type: Milling
- Location: Lithuania
- machine type: Vertical Machining Centre
Technical Information - Okuma GENOS M560-V-e
Dimensions
- Machine Height: 2746 mm
- Machine Weight: 8.3 kg
Movement
- Number of Axes: 4
- X-axis Travel: 1050 mm
- Y-axis Travel: 560 mm
- Z-axis Travel: 460 mm
Technical Specification
- Spindle Power: 22 kW
- Spindle Speed: 15000 RPM
Additional Information
Additional equipment
- Feedrate
- Tool shank: MAS BT.40 [DIN No.40]
- Pull stud: JIS
- NC unit: OSP-P300M-e
Machine Benefits
Technical Machine Benefits
- Table top to spindle nose: 150 to 610 mm
- Max work dimension: 1,300 x 560 mm
- Distance from floor to table top: 800 mm
- Max load capacity: 900 kg
- Speed ranges: infinitely variable
- Tapered bore: 7/24 taper no. 40
- Bearing dia: ø70 mm
- Cutting feedrate: 32,000 m/min
- Max tool dia (with adjacent tools): ø90 mm // max tool dia (without adjacent tools): ø125 mm // max tool length: 300 mm // max tool mass: 8 kg // max tool mass moment: 7,8 (8 kg x 100 mm) n·m // tool selection: memory random
- Axis feed: x·y·z: 3. 5 kw
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
