OKAMOTO - ACC 208exIT-GRI-OKA-2008-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- OKAMOTO ACC 208ex Grinding machine
Show in original language

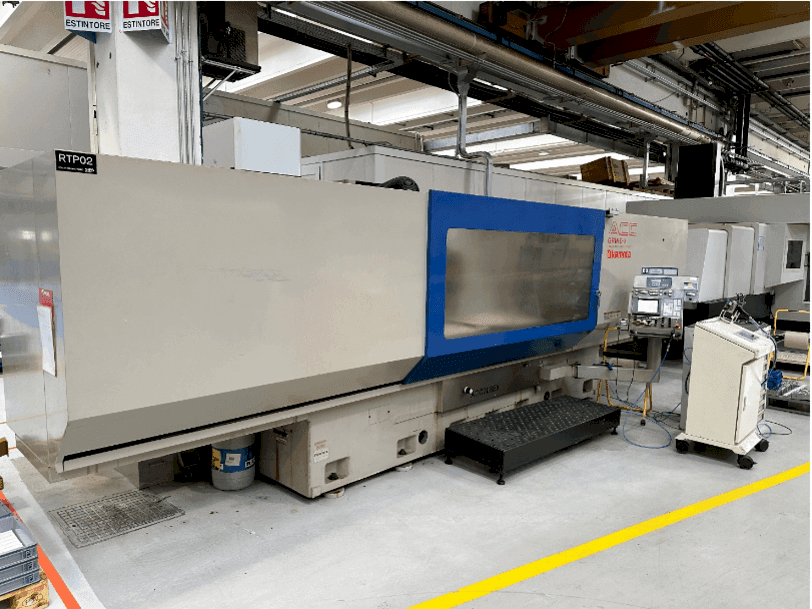

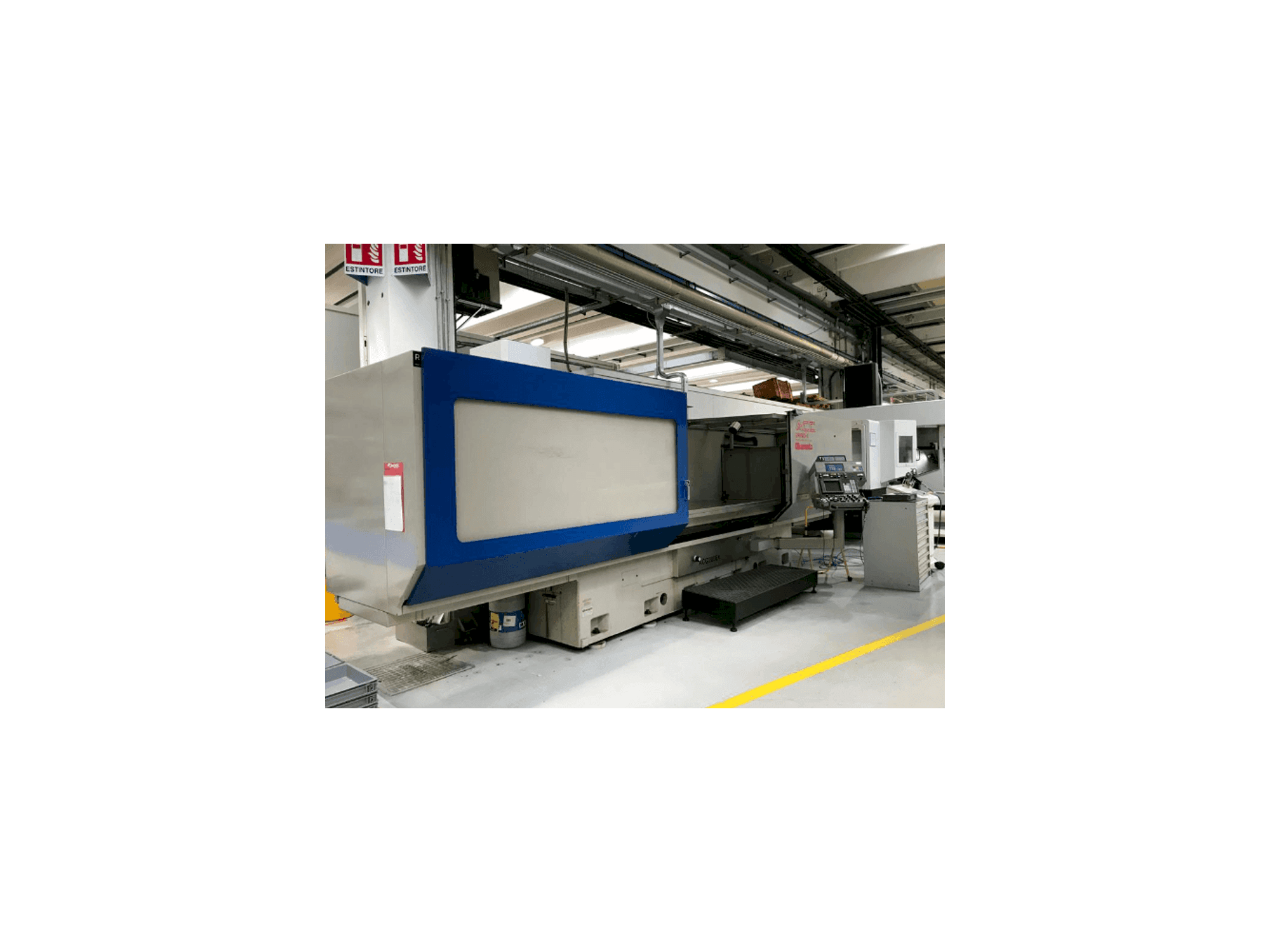

This OKAMOTO ACC 208ex Grinding machine was manufactured in the year 2008. The machine has a spindle speed of 1400 rpm.
Overview
- brand: OKAMOTO
- year: 2008
- MODEL: ACC 208ex
- application type: Grinding
- Location: Italy
- machine type: Surface Grinding Machine
Technical Information - OKAMOTO ACC 208ex
Dimensions
- Machine Depth: 3920 mm
- Machine Height: 2550 mm
- Machine Weight: 11500 kg
- Table Length: 2000 mm
- Table Width: 800 mm
Technical Specification
- Spindle Speed: 1400 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Hand feed per turn (x1/x10/x50) mm. 0. 1/1/5
- Graduations from handwheel (x1/x10/x50) mm. 0. 001/0. 01/0. 05
- Intermittent feeding: 0. 5 – 40 mm.
- Continuous feeding speed:. 0 – 1000 mm/min
- Hand feed per revolution:(x1/x10/x10). 0. 01/0. 1/1 mm
- Graduations from handwheel : x1/x10/x10). 0. 0001/0. 001/0. 01 mm
- Coarse pass depth. 0-0. 5 (16 steps) mm
- Fine pass depth. 0-0. 04 mm (11 steps)
- Fine grinding tolerance. 0-0. 05 mm (9 steps)
- Feeding with air cutting ((coarse/fine) mm. 0-9999. 9, hydraulic oil pump (for the sharpener) kw 0. 2/4, vertical feeding (ac servomotor) kw 0. 9, transversal feed kw 0. 9, 380/400/415. 3p 50hz, 31kva, grinding holder flange with hole dia. 127 mm.
Technical Machine Benefits
- Max distance to the table surface under the wheel 400 mm. 685 mm.
- Average weight of the vise: 1152 kg
- Load capacity of the table (weight of the vice included): 2000 kg
- T-slots (width x n. ) 20x3 mm.
- Longitudinal advance
- Max stroke 2150 mm.
- Longitudinal feed speed m/min. 3 – 30
- Max stroke 760 mm.
- Automatic advance stroke 760 mm.
- Rapid feeding speed: 4000mm/min.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
