OKAMOTO - ACC64 DXHU-GRI-OKA-2018-00002

£ 17,995
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

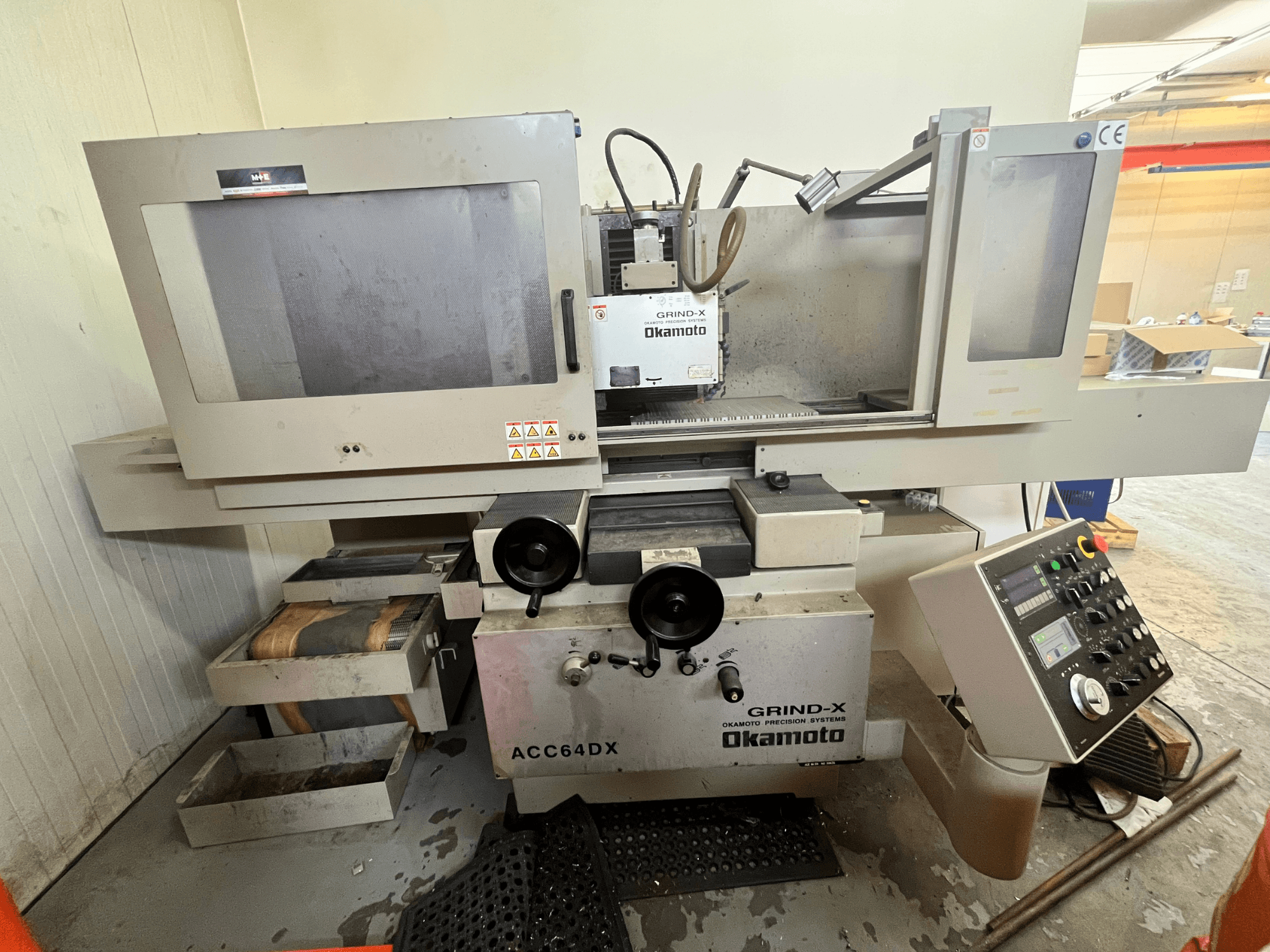

This 3-axis OKAMOTO ACC64 DX was manufactured in 2018. It features a table size of 650 × 440 mm and a maximum workpiece weight capacity of 420 kg. The grinding wheel size is Ø305 × 38 × Ø127 mm, with a speed of 1,800 rpm. If you are looking to get high-quality grinding capabilities, consider the OKAMOTO ACC64 DX surface grinding machine we have for sale. Contact us for further details.

Overview

  • brand: OKAMOTO
  • year: 2018
  • MODEL: ACC64 DX
  • application type: Grinding
  • Location: Hungary
  • machine type: Surface Grinding Machine

Technical Information - OKAMOTO ACC64 DX

Dimensions

  • Machine Weight: 2900 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 750 mm
  • Y-axis Travel: 440 mm

Additional Information

  • Table size: 650 × 440 mm

  • Magnetic chuck size: 600 × 400 mm

  • Maximum workpiece weight: up to 420 kg

  • Grinding wheel size: Ø305 × 38 × Ø127 mm

  • Grinding wheel speed: 1,800 rpm

  • Automatic vertical feed: servo-controlled, with fine infeed increments

  • Hydraulic longitudinal and cross table feed

  • Automatic grinding cycles

  • Automatic vertical downfeed

Additional equipment

  • Magnetic chuck

  • Coolant system (depending on machine configuration)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
