Nicolas Correa - CF-22ES-MIL-NIC-1998-00002

£ 16,289
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

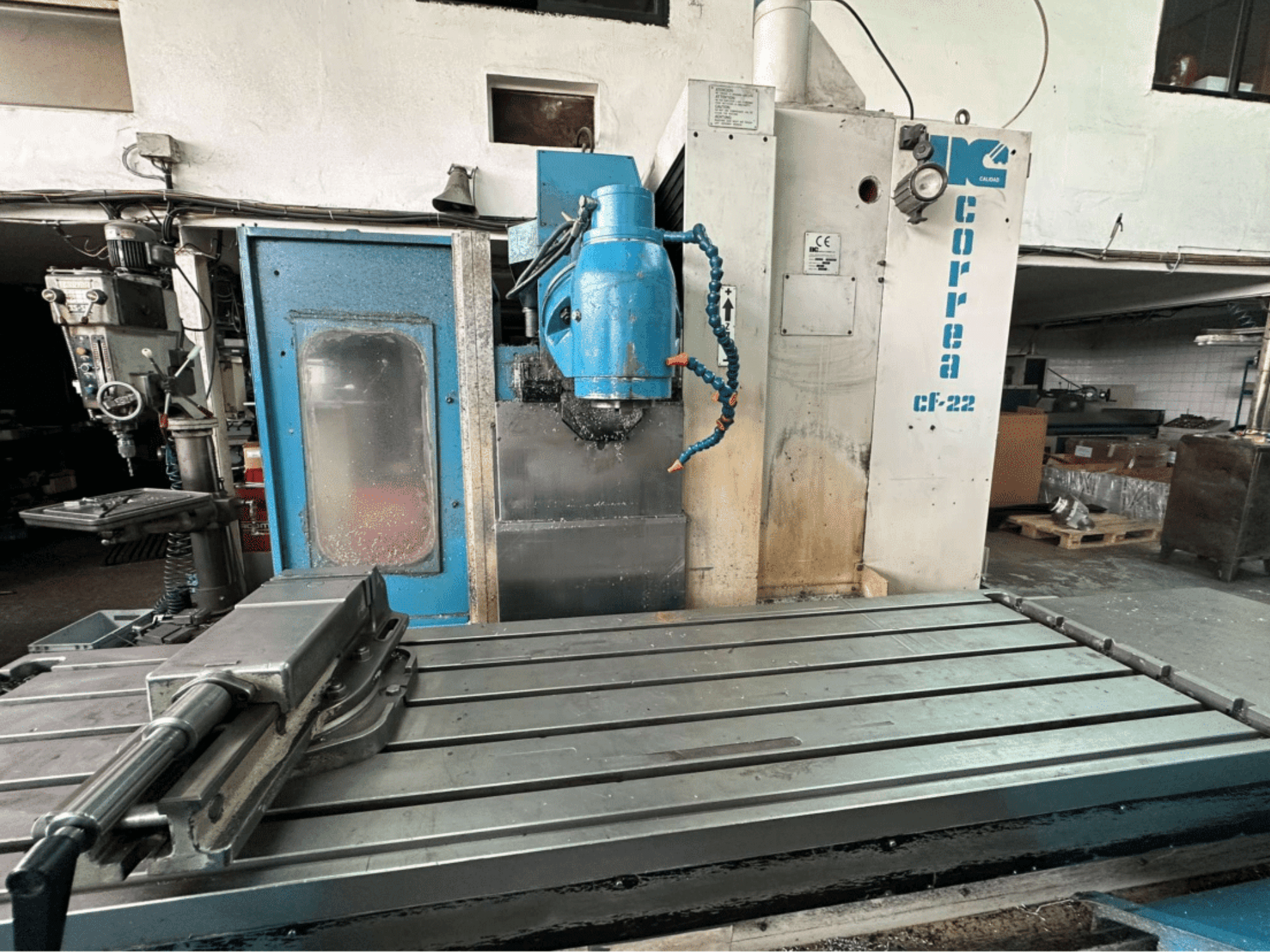

This 3-axis Nicolas Correa CF-22 Bed Type Milling Machine was manufactured in 1998. It features a universal manual U22 head with dual orientation, hydraulic tool clamping, and an ISO 50 tool taper. The table dimensions are 2,500 × 700 mm, supporting a maximum load of 4,000 kg. Spindle speeds range up to 4,000 rpm, powered by a 29 kW motor. Reach out for further details regarding this machine.

Overview

  • brand: Nicolas Correa
  • year: 1998
  • MODEL: CF-22
  • application type: Milling
  • Location: Spain
  • machine type: Bed Type Milling Machine

Technical Information - Nicolas Correa CF-22

Dimensions

  • Machine Height: 2760 mm
  • Machine Length: 6600 mm
  • Machine Weight: 9500 kg
  • Table Load: 4000 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 2500 mm
  • Y-axis Travel: 800 mm
  • Z-axis Travel: 800 mm

Technical Specification

  • Spindle Power: 29 kW
  • Spindle Speed: 4000 RPM
  • Taper Size: ISO 50

Additional Information

  • Table dimensions: 2,500 × 700 mm

  • T-slots: 5

  • T-slot width: 22 mm

  • Head type: Universal manual U22 (dual orientation)

  • Indexing: Manual in 2 planes

  • Tool clamping: Hydraulic

  • Feed rates:

    • Working feed (X/Y/Z): 5 – 5,000 mm/min

    • Rapid traverse (X/Y/Z): 12,000 mm/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
