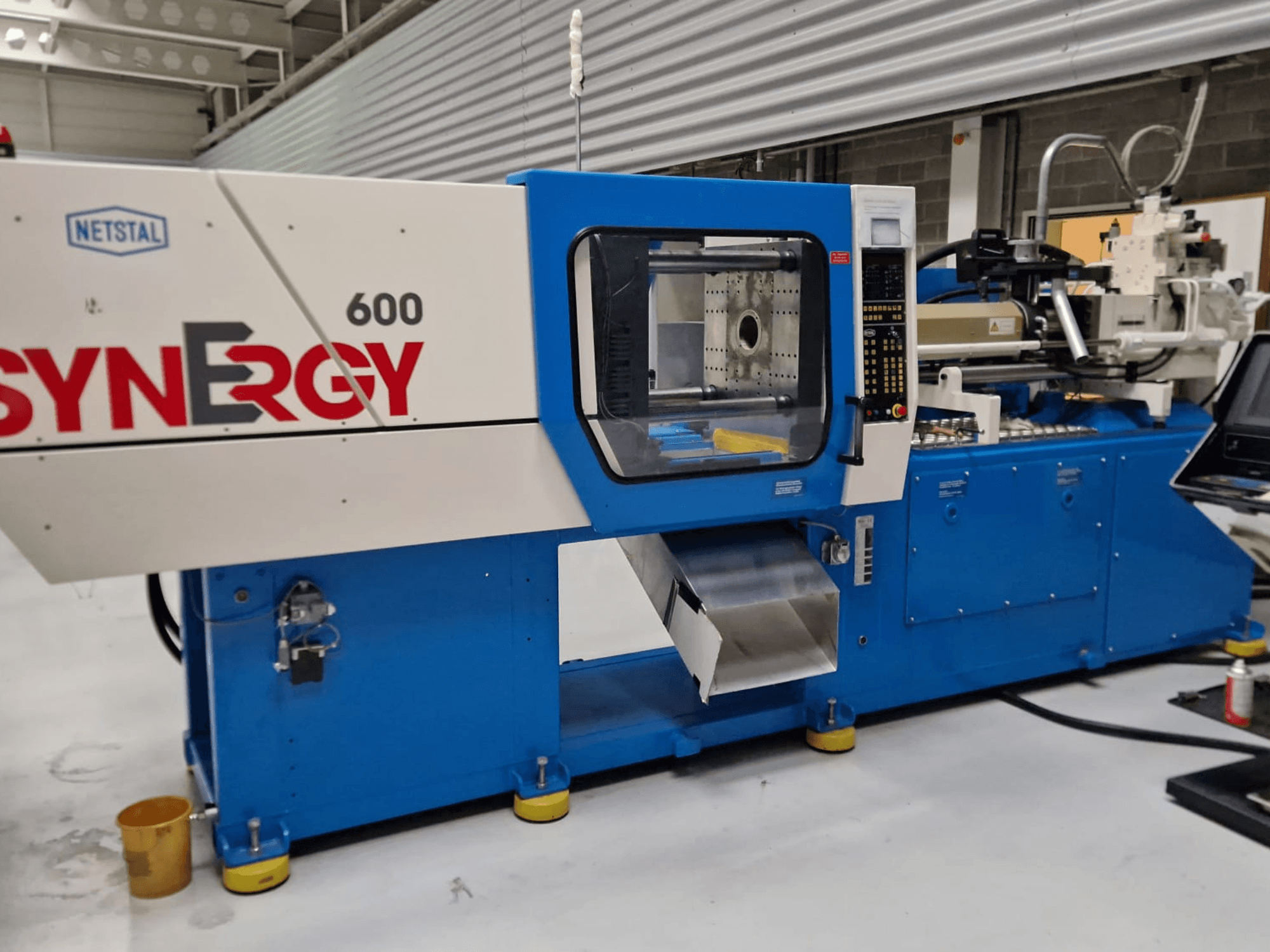

Hydraulic injection moulding machine manufactured in 2016. This Netstal Synergy 600-230 features a clamping force of 600 kN and an injection force of 182 kN. It has an operating pressure of 210 bar and an opening stroke of 0-350 mm. If you are looking to get high-quality injection moulding capabilities, consider the Netstal Synergy 600-230 machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: Netstal
- year: 2016
- MODEL: Synergy 600-230
- production hours: 600230
- application type: Injection Moulding
- Location: Switzerland
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Netstal Synergy 600-230
Dimensions
- Machine Weight: 6300 kg
Technical Specification
- Clamping Force: 600 kN
Additional Information
Operating pressure: 210 bar
Injection pressure: 150 bar
Injection force: 182 kN
Opening stroke: 0–350 mm
Mould installation height: 200–500 mm
Protection class: IP54
Power supply 1: 3PH+E, 400 V, 50 Hz
Nominal current supply 1: 29 A
Short circuit current (supply 1): 20 kA
Power supply 2: 3PH+MP+E, 400 V, 50 Hz
Nominal current supply 2: 120 A
Short circuit current (supply 2): 20 kA
Pump motor power: 15 kW
Heating power: 13.66 kW
Total connected load: 65.1 kW
Total connected load (alternative): 62.4 kW
Socket F11: 400 V, 9 A
Socket F12: 230 V, 20 A
Socket F110: 230 V, 10 A
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
