➤ Used Netstal S-1500-900 For Sale | gindumac.com

Show in original language

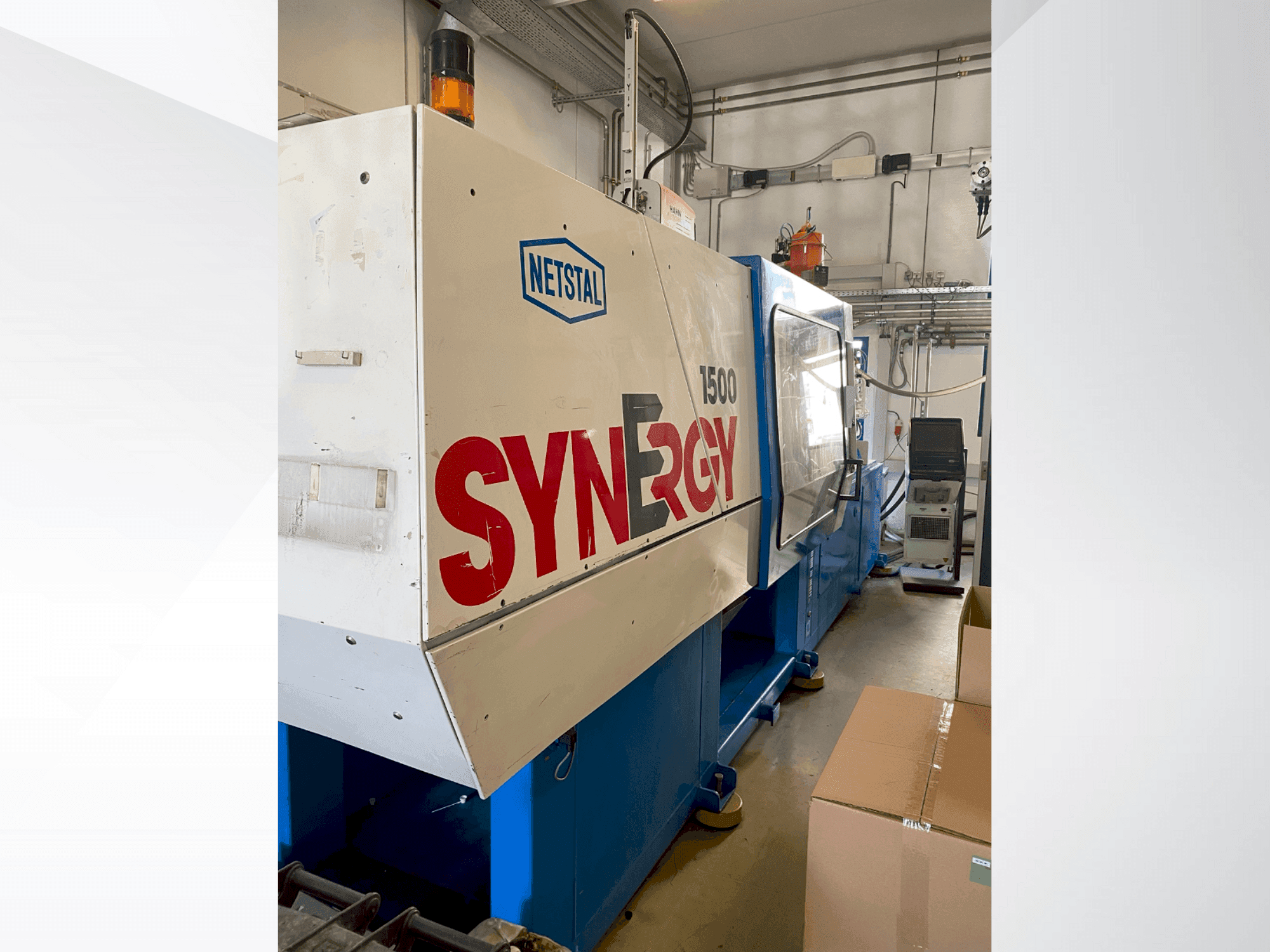

This Netstal S-1500-900 was manufactured in 2001. A robust hydraulic injection moulding machine featuring a clamping force of 1500 KN and an opening stroke of 450 mm. It has a screw diameter of 50 mm and can achieve an injection pressure of 1487 bar. Dimensions are 6962 mm in length, 1870 mm in width, and 2271 mm in height, with a machine weight of approximately 12.10 tons. For more information about this hydraulic injection moulding machine, please reach out to us.

Overview

brand: Netstal
year: 2001
MODEL: S-1500-900
application type: Injection Moulding
Location: Switzerland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Netstal S-1500-900

General Data

Measurements width: 1870 MM
Measurements depth: 6962 MM
Measurements height: 2271 MM
Machine weight: 12100 KG

Injection Unit

Screw diameter: 50 mm
Shot weight: 580 g (PS)
Injection pressure: 1487 bar
Heating capacity: 30.3 kW

Clamping unit

Clamping force: 1500 kn
Opening stroke: 450 mm
Distance between bars: 510 x 510 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max metering stroke: 200 mm
- - Max shot volume: 201 cm³
- - Injection flow rate: 3925 cm³/s
- - Opening force: 412 kn
- - Tie bar diameter: 85 mm
- - Dry cycle stroke: 1. 3 s
- - Nozzle contact force: 88 kn

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
