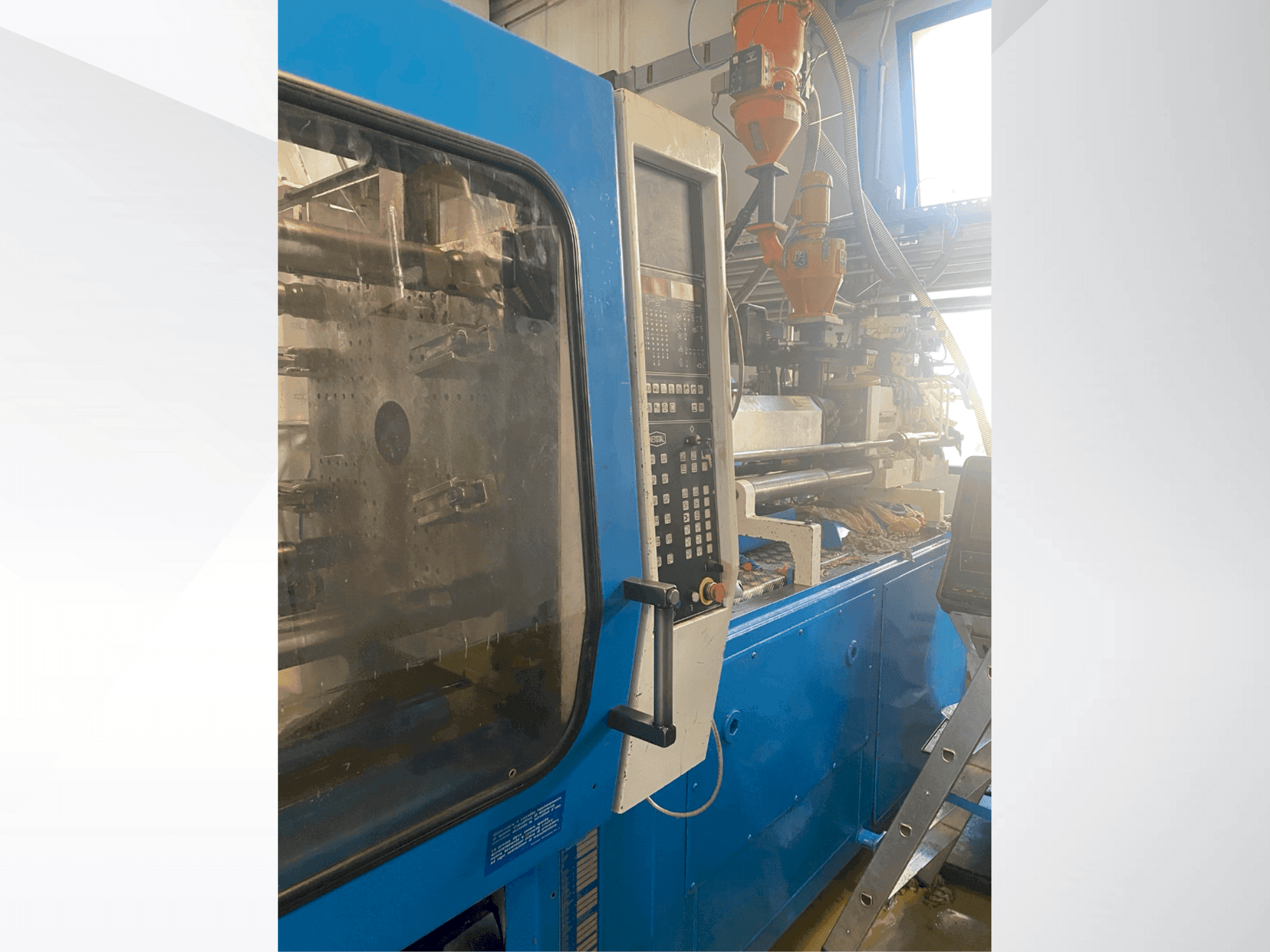

This hydraulic injection moulding machine was manufactured in 1998. The Netstal S-1000-460 features a closing force of 1000 KN, an opening stroke of 400 mm, and a screw diameter of 40 mm. It has a shot weight capacity of 193 grams and an injection pressure of 2218 bar. Ideal for precision molding, the machine we have for sale is robust and efficient. Contact us for more information about this hydraulic injection moulding machine.
Overview
- brand: Netstal
- year: 1998
- MODEL: S-1000-460
- application type: Injection Moulding
- Location: Switzerland
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - Netstal S-1000-460
General Data
- Measurements width: 1724 MM
- Measurements depth: 5988 MM
- Measurements height: 2262 MM
- Machine weight: 12100 KG
Injection Unit
- Screw diameter: 40 mm
- Shot weight: 193 g (PS)
- Injection pressure: 2218 bar
- Heating capacity: 19.9 kW
Clamping unit
- Clamping force: 1000 kN
- Opening stroke: 400 mm
- Distance between bars: 460 x 460 mm
Additional Information
- Technical Machine Benefits:
- - Max metering stroke: 160 mm
- - Max shot volume: 201 cm³
- - Injection flow rate: 1382 cm³/s
- - Opening force: 270 kn
- - Column diameter: 70 mm
- - Dry cycle stroke: 1. 1 s
- - Nozzle contact force: 57 kn
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
