➤ Used Netstal ELION 1200-530 PM For Sale | gindumac.com

Show in original language

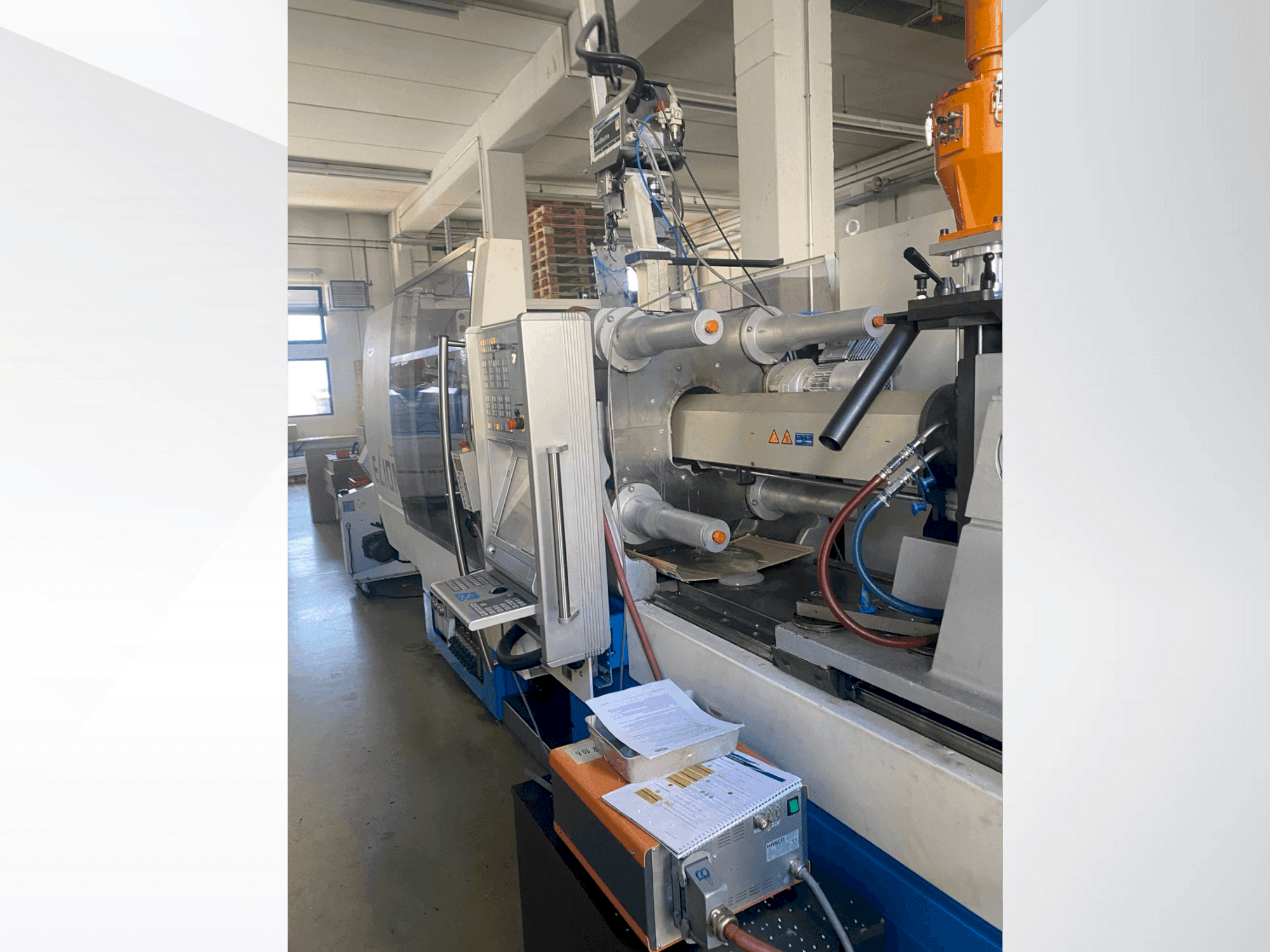

This Netstal ELION 1200-530 PM hydraulic injection moulding machine was manufactured in 2021. It features a clamping force of 1200 KN, a screw diameter of 45 mm, and a maximum injection speed of up to 450 mm/s. With a shot weight capacity of 244.1 g and a heating capacity of 20.9 kW, this machine is ideal for precision molding tasks. For more information about this hydraulic injection moulding machine, please reach out to us.

Overview

brand: Netstal
year: 2021
MODEL: ELION 1200-530 PM
application type: Injection Moulding
Location: Switzerland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Netstal ELION 1200-530 PM

General Data

Measurements width: 1780 mm
Measurements depth: 5330 mm
Measurements height: 2044 mm
Machine weight: 10100 kg

Injection Unit

Screw diameter: 45 mm
Shot weight: 244.1 g (PS)
Injection pressure: 2086 bar
Screw speed: 525 rpm
Heating capacity: 20.9 kW

Clamping unit

Clamping force: 1200 kN
Opening stroke: 400 mm
Distance between bars: 460 x 460 mm
Mould height min: 250 – 550 mm
Mould height max: 450 – 750 mm
Ejector stroke: 120 mm
Ejector force for / back: 33 kN

Additional Equipment

- Core pull: 0 units

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max metering stroke: 160 mm
- - Max shot volume: 254. 5 cm³
- - Standard injection flow rate: 397. 6 cm³/s // power injection flow rate: 715. 7 cm³/s
- - Max injection speed standard/power: 250 / 450 mm/s // max screw speed force/speed/master: 350 / 525 / 550 rpm
- - Max torque force: 700 nm // max torque speed: 490 nm // max torque master: 700 nm
- - Opening force: 1200 kn
- - Max mold weight: 1556 kg
- - Dry cycle stroke: 1. 3 – 322 seconds per mm
- - Nozzle contact force: 25 / 50 kn
- - Nozzle retraction stroke: 510 mm
Qualitative Machine Benefits:
- - High injection pressure: 2086 bar
- - High injection flow rate: 397. 6 cm³/s (standard), 715. 7 cm³/s (power)

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
