Negri Bossi 15000 H - 15200

Photo Gallery

Negri Bossi - 15000 H - 15200DE-INJ-NEG-2000-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Used Injection Moulding Machine NEGRI BOSSI 15000 H - 15200 - 2000 - for sale | gindumac.com

Show in original language

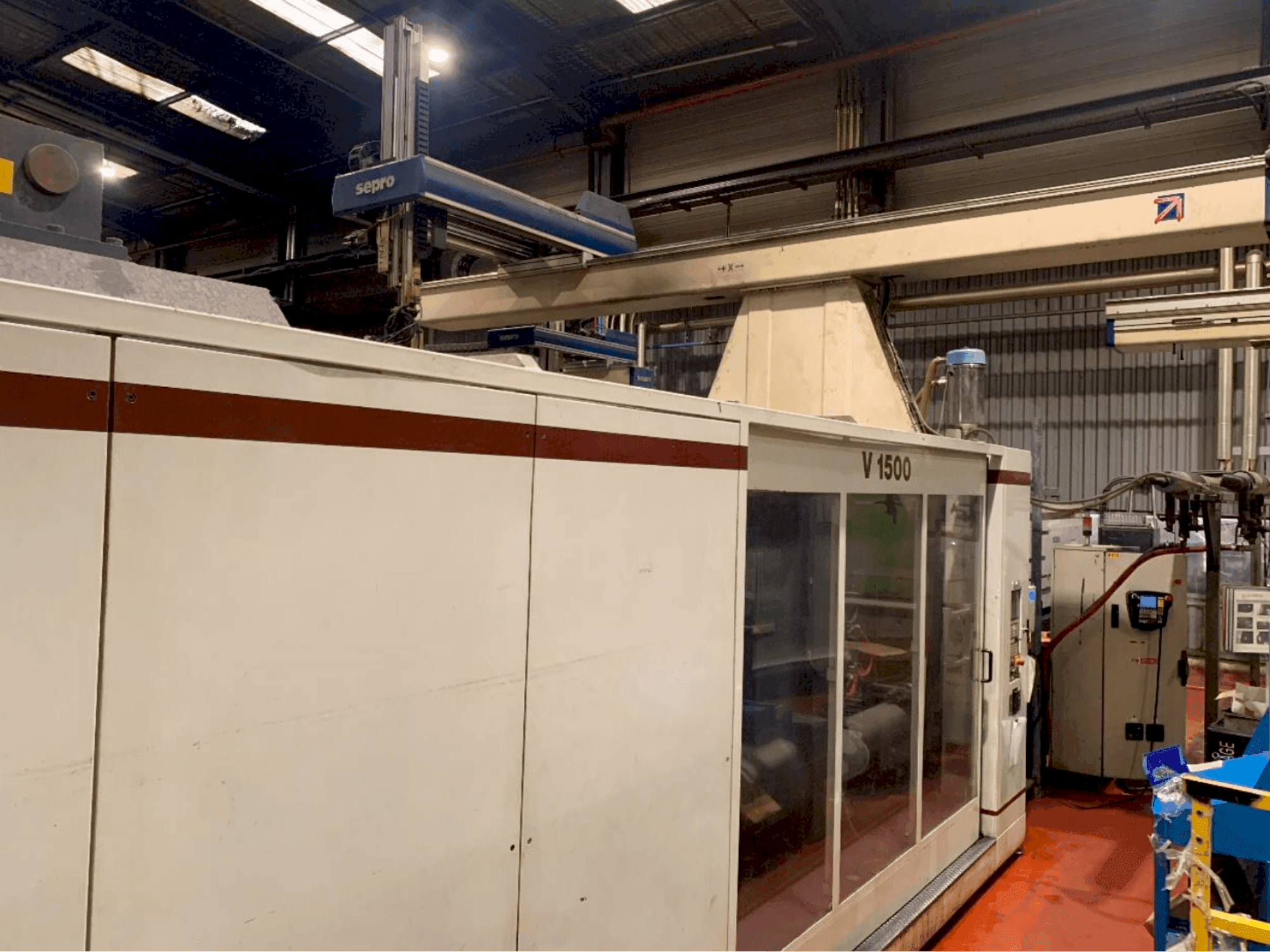

This injection moulding machine was manufactured in 2000. The Negri Bossi 1500 boasts a closing strength of 15000 Kn and a screw diameter of 135 mm, optimized for precise performance. Key features include a maximum injectable volume of 9660 cm³ and robust space between columns measuring 1400x1290 mm. Its advanced SEPRO robot and magnetic clamping system enhance operational efficiency, making the Negri Bossi 1500 machine we have for sale a reliable choice for high-volume production environments. For more details and to discuss your specific needs, please contact us directly.

Overview

brand: Negri Bossi
year: 2000
MODEL: 15000 H - 15200
production hours: 71785
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Negri Bossi 15000 H - 15200

Technical Specification

Clamping Force: 15000 kN

Additional Information

Machine Benefits

Technical Machine Benefits

Type of closure kneepad
Minimum & maximum moule thickness: 600 - 1500mm
Space between columns hv 1400x1290 mm
Flat dimensions hv: 2060x1950mm
Thread for clamping: m24
Centring d pf: 250 mm
Maximum injectable volume: 9660 cm3
Central ejection type
Max ejection stroke: 500
Max ejection pressure: 180 kn

Extra Information

TYPE OF SCREW/FLANGE AND MAGNETIC CLAMPING - SEPRO ROBOT

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
