MORI SEIKI NZ2000 T3Y3
MORI SEIKI - NZ2000 T3Y3
2007
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- MORI SEIKI NZ2000 T3Y3 Lathe

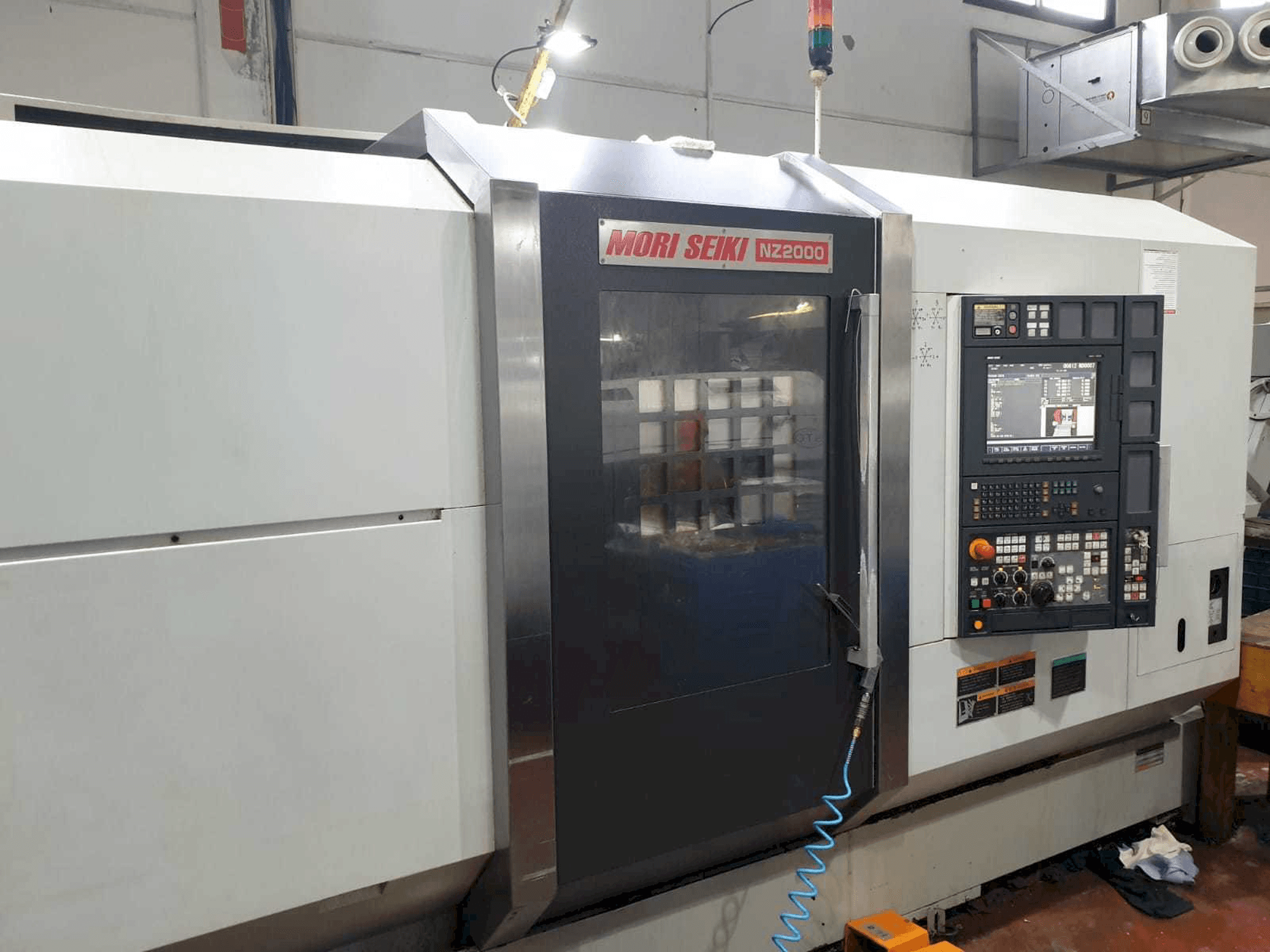

This MORI SEIKI NZ2000 T3Y3 Lathe machine was manufactured in the year 2007 in Japan. This machine counts with a total of 46673 hours, of which 3837 are cutting time. This 3 Y axis machine it is equipped with a MORI SEIKI MSX-701 III control unit. This machine comes with 3 turrets, and 2 spindles. Both spindles can perform with a spindle speed up to 5000 rpm.
Overview
- brand: MORI SEIKI
- year: 2007
- MODEL: NZ2000 T3Y3
- production hours: 3837
- application type: Turning
- Location: Israel
- machine type: Lathe
- availability: Sold
- control unit brand: MORI SEIKI
- GINDUMAC ID: IL-TUR-MOR-2007-00001
Technical Information
Control Unit
- Brand: MORI SEIKI
- Model: MSX-701 III
Main drive
- Spindle speed range: 5000 1/MIN
- Spindle motor power: 25 kW
Turret
- Number of turrets: 3
Additional Equipment
- - Bar feeder
- - Tool holders
Additional Information
- Technical Machine Benefits:
- - Turning diameter max. 320 mm
- - Turning length 810 mm
- - Circumference diameter over bed 800 mm
- - Circumference diameter over slide 800 mm
- - Standard turning diameter 200 mm
- - Distance main spindle - counter spindle max. 1130 mm
- - Main spindle bore 73 mm
- - Counter spindle speed 5000 rpm, counter spindle bore 73 mm, counter spindle motor 25 kw
- - Bar diameter max. 65 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
