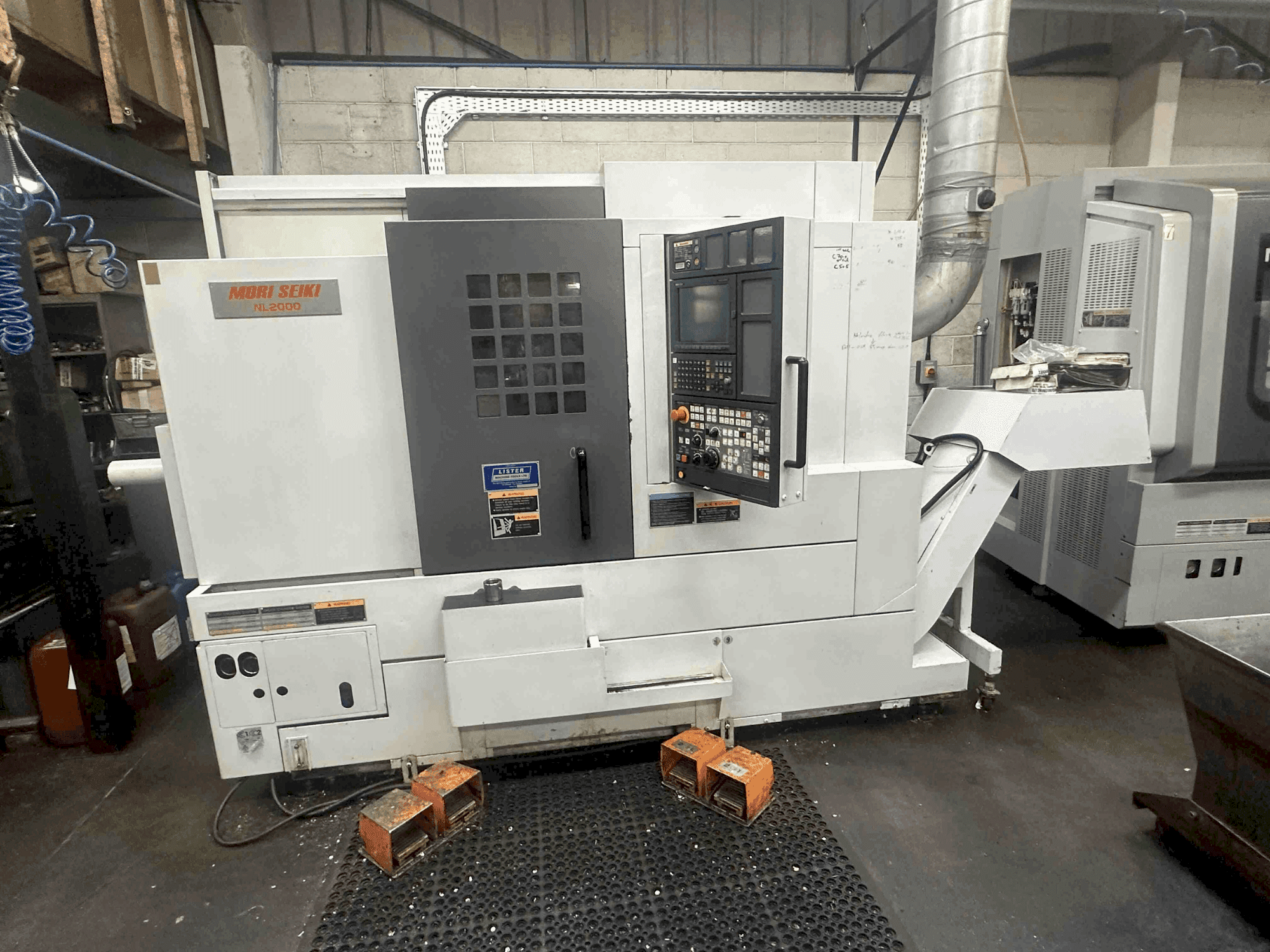

Front view of MORI SEIKI NL2000SY/500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MORI SEIKI NL2000SY/500

Photo Gallery

MORI SEIKI - NL2000SY/500IE-TUR-MOR-2006-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MORI SEIKI NL2000SY/500 For Sale | gindumac.com

Show in original language

This MORI SEIKI NL2000SY/500 was manufactured in 2006. A robust CNC lathe with sub spindle and driven tools, it features a max turning diameter of 366mm and a length of 510mm. It supports bar work up to 65mm and includes a BMT tool turret and a swarf conveyor. Ideal for precision tasks, the machine we have for sale offers a swing over bed of 923mm and a main spindle speed up to 5000rpm. Contact us for more information.

Overview

brand: MORI SEIKI
year: 2006
MODEL: NL2000SY/500
application type: Turning
Location: Ireland
machine type: Turn-Mill Centre

Technical Information - MORI SEIKI NL2000SY/500

General Data

Measurements width: 2000 MM
Measurements depth: 2705 MM
Measurements height: 2120 MM
Machine weight: 5800 KG

Control Unit

Model: MSX-850III

Main drive

Spindle speed range: Main Spindle: 5000: Sub Spindle: 6000 1/MIN
Spindle motor power: 15kW

Movement

X-AXIS Movement: 260 mm
X-AXIS Rapid traverse: 30,000mm/min
Y-AXIS Movement: +/-50mm(100mm)
Y-AXIS Rapid traverse: 10,000mm/min
Z-AXIS Movement: 590mm
Z-AXIS Rapid traverse: 30,000mm/min
V-Axis Movement: 624mm
V-Axis Rapid traverse: 30,000mm/min

Workpiece

Workpiece drm: 366mm
Workpiece x: 510 mm

Additional Information

Additional equipment

Static Tool Holders
2 x Axial Driven Tool Holders
1 x Radial Driven Tool Holder
Barfeed Interface
Swarf Conveyor
Tool Presetter
Parts Catcher
BMT Tool Turret

Machine Benefits

Qualitative Machine Benefits

Swing over cross-slide: 755mm
Standard turning diameter: 275mm
Shank height for square tool: 25mm
Boring bar shank diameter: 50mm
Rotary tool shank diameter: 26mm
Electrical power supply: 35. 9kva
Very good condition

Technical Machine Benefits

Sub spindle motor power: 11kw
Rotary tool motor power: 5. 5kw
Min spindle indexing: 0. 001゜
Turret indexing time: 0. 25sec
Coolant tank capacity: 235l
Distance between centres: 500mm
Standard chuck size - spindle 1: 8"
Standard chuck size - spindle 2: 6"
Bar work capacity: 65mm
Swing over bed: 923mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
