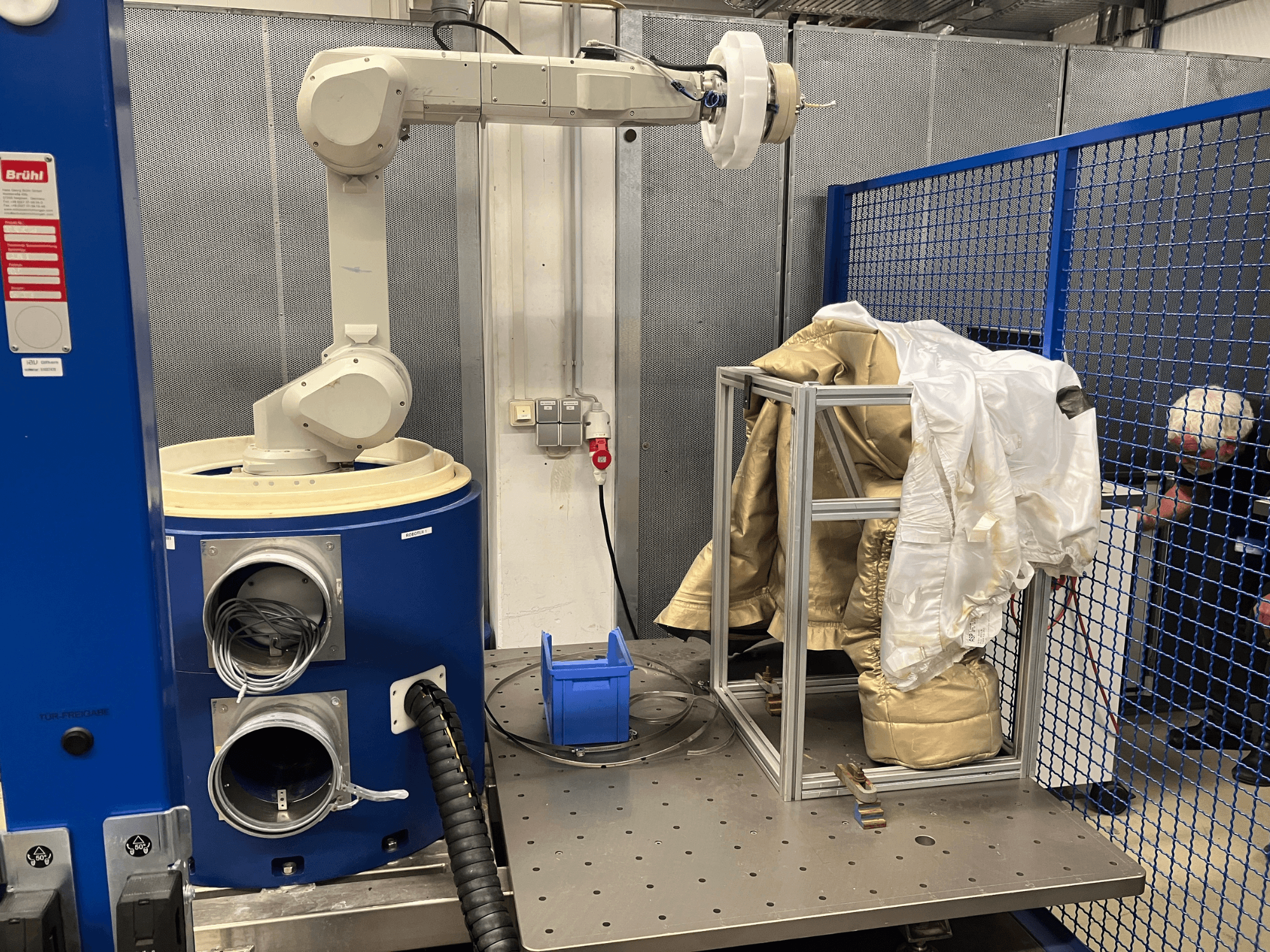

This 6-axis Mitsubishi RV-13FLM D1 S15 robot arm was manufactured in 2013, featuring a comprehensive operating range with base rotation of ±240° and wrist roll of ±360°. It's equipped with powerful motors, including 1500 W for both the base and shoulder. If you are looking to get high quality robotic arm capabilities consider the Mitsubishi RV-13FLM D1 S15 machine we have for sale. Contact us for more information.
Overview
- brand: Mitsubishi
- year: 2013
- MODEL: RV-13FLM D1 S15
- application type: Robotics
- Location: Germany
- machine type: Robot Arm
- control unit brand: MITSUBISHI
Technical Information - Mitsubishi RV-13FLM D1 S15
Control Unit
- Control Brand: MITSUBISHI
Movement
- Number of Axes: 6
Technical Specification
- Max. Handling Weight: 13 kg
Additional Information
Axis Operating Range:
J1 (Base Rotation): ±240° (Total 480°)
J2 (Shoulder): -150° to +90° (Total 240°)
J3 (Elbow): -72.5° to +95° (Total 167.5°)
J4 (Wrist Yaw): ±200° (Total 400°)
J5 (Wrist Pitch): ±120° (Total 240°)
J6 (Wrist Roll): ±360° (Total 720°)
Axis Power:
J1 (Base): 1500 W
J2 (Shoulder): 1500 W
J3 (Elbow): 750 W
J4 (Wrist Yaw): 400 W
J5 (Wrist Pitch): 200 W
J6 (Wrist Roll): 100 W
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
