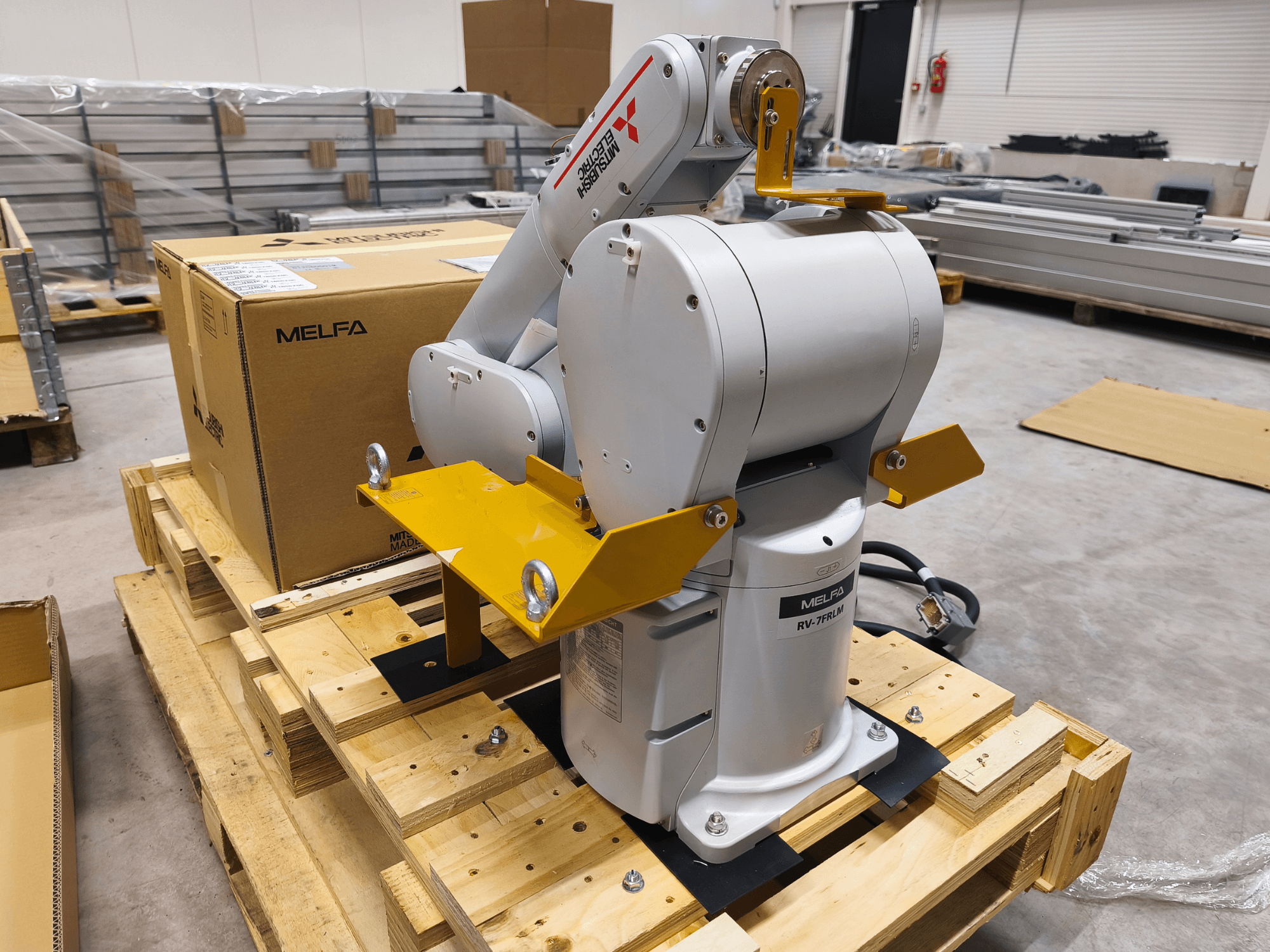

MELFA RV-7FLM industrial robot arm on wooden pallet, front view, with yellow support brackets and gray packing box.
MELFA RV-7FLM industrial robot arm on wooden pallet, front view, with yellow support brackets and gray packing box.

Mitsubishi - RV-7FRLM-D EE-ROB-MIT-2011-00001

£ 19,219
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 6-axis Mitsubishi RV-7FRLM-D robot arm was manufactured in 2011. It features a vertical multiple-joint structure, capable of handling a maximum load of 7 kg with a reach radius of 908 mm. The robot is equipped with an AC servo motor and can be installed on floors, ceilings, or walls. It operates efficiently with a cycle time of 0.35 seconds and has an IP67 protection degree. Consider the opportunity to buy this Mitsubishi RV-7FRLM-D robot arm. Contact us for more information.

Overview

  • brand: Mitsubishi
  • year: 2011
  • MODEL: RV-7FRLM-D
  • application type: Robotics
  • Location: Estonia
  • machine type: Robot Arm

Additional Information

  • Structure: Vertical multiple-joint type

  • Environmental Specifications: Oil mist

  • Protection Degree: IP67

  • Installation: Floor / Ceiling / Wall-mounted

  • Degrees of Freedom: 6

  • Drive System: AC servo motor (all axes with brake)

  • Position Detection: Absolute encoder

  • Load Capacity Maximum: 7 kg/ Rated: 7 kg

  • Upper Arm: 435 mm

  • Forearm: 470 mm

  • Maximum Reach Radius: 908 mm

  • J1: −240° to +240°

  • J2: −110° to +130°

  • J3: 0° to +162°

  • J4: −200° to +200°

  • J5: −120° to +120°

  • J6: −360° to +360°

  • J1: 288 deg/sec

  • J2: 321 deg/sec

  • J3: 360 deg/sec

  • J4: 337 deg/sec

  • J5: 450 deg/sec

  • J6: 720 deg/sec

  • Maximum Composite Speed: 11000 mm/sec

  • Cycle Time: 0.35 sec

  • Position Repeatability: ±0.02 mm

  • Environmental Conditions Ambient Temperature: 0–40°C /Robot Mass: 67 kg

  • Allowable Torque

    • J4: 16.2 Nm

    • J5: 16.2 Nm

    • J6: 6.86 Nm

    Allowable Inertia

    • J4: 0.45 kg·m²

    • J5: 0.45 kg·m²

    • J6: 0.10 kg·m²

    • Tool Interfaces Tool Wiring:

      • 8 inputs / 8 outputs for gripper

      • Multi-function gripper & sensor signal cable

      • LAN × 1 (100BASE-TX)

      Tool Pneumatic Pipes:

      • Primary: Ø6 × 2

      • Secondary: Ø4 × 8

      Controller Connected Controller Type: CR800-07VD /Control Type: Standalone

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
