MIKRON WF 21 C
MIKRON - WF 21 C
1984
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- MIKRON WF 21 C Milling Machine

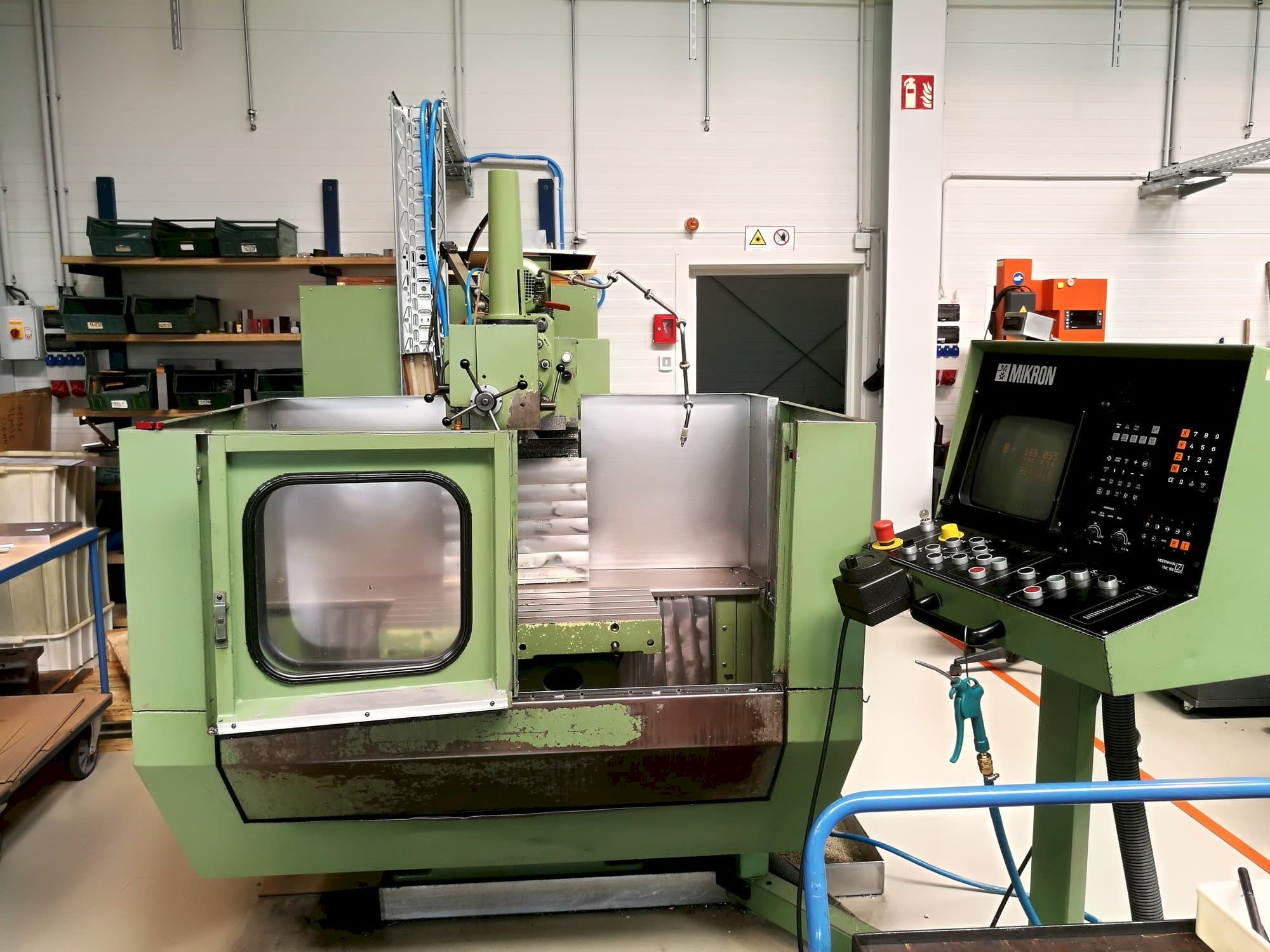

This MIKRON WF 21 C Milling Machine was made in 1984 in Germany. It has a production history of approximately 45000 working hours. It is operated through a Heidenhain TNC151 control unit. This model counts with a spindle speed up to 4000 rpm. During the past, has mainly worked with steel.
Overview
- brand: MIKRON
- year: 1984
- MODEL: WF 21 C
- production hours: 45000
- application type: Milling
- Location: Austria
- machine type: Milling Machine
- availability: Sold
- control unit brand: Heidenhain
- GINDUMAC ID: AT-MIL-MIK-1984-00001
Technical Information
General Data
- Measurements width: 3000 mm
- Measurements depth: 4000 mm
- Measurements height: 2000 mm
- Machine weight: 3000 kg
Control Unit
- Brand: Heidenhain
- Model: TNC151
- CNC main language: German
- CNC language customizable: Yes
Main drive
- Number of spindles: 1
- Spindle speed range: 4000 1/MIN
Movement
- X-AXIS Movement: 400 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 400 mm
Workpiece
- Workpiece weight: 350 kg
Table
- Outer length: 700 mm
- Outer width: 350 mm
Tools
- Slots in storage: no
- Type of tool holder: SK40
Media
- Main electronic connection: 400 V
- Power consumption: 15 kVA
Additional Information
- Material type: Steel
- End product: Mould and die parts
- Industries: Mould and die
Machine history
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
