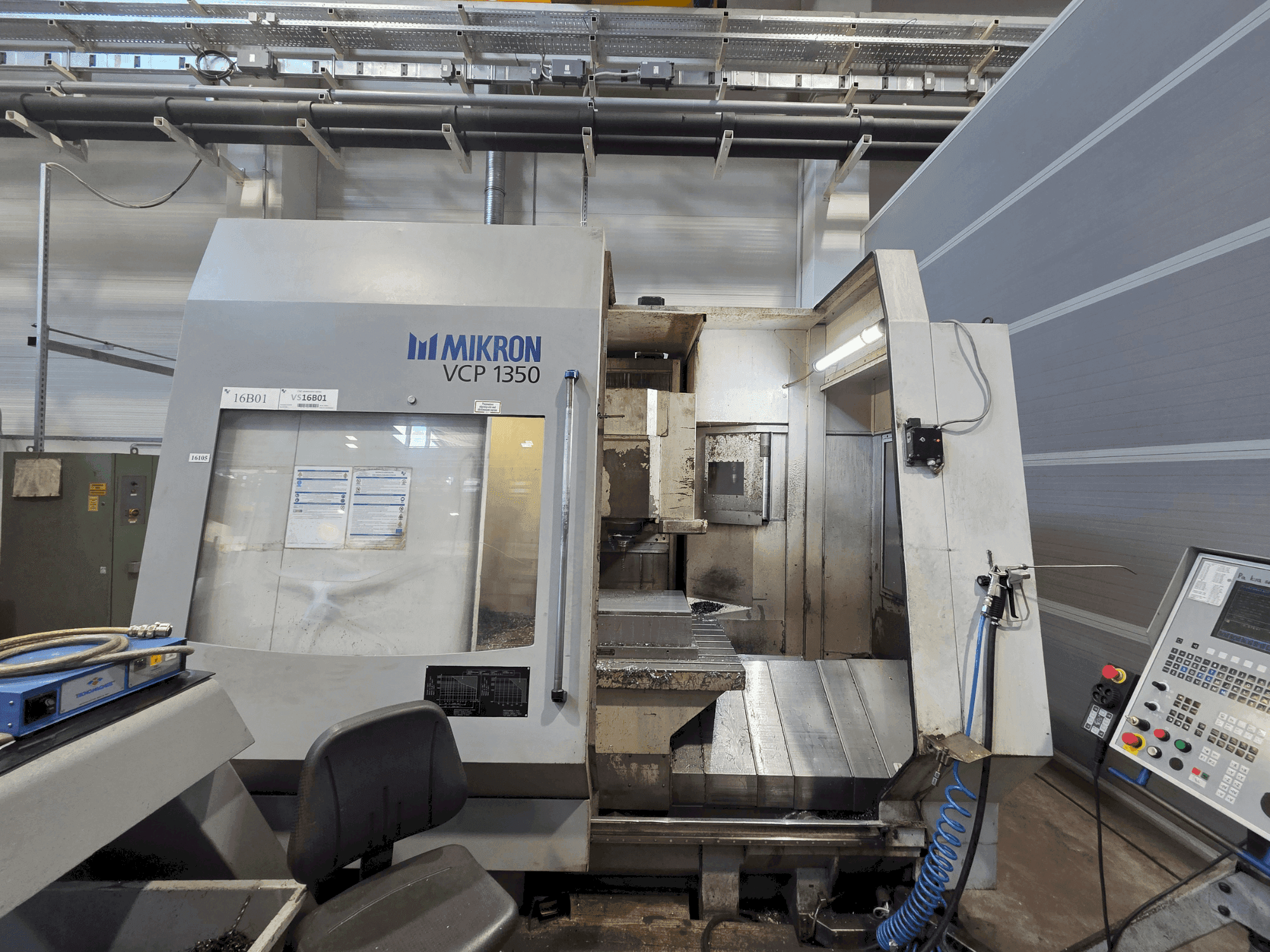

This 3-axis MIKRON VCP 1350 was manufactured in 2000. It features a Heidenhain TNC 426 M control system, X-axis travel of 1350 mm, Y-axis of 900 mm, and Z-axis of 750 mm. The machine supports a maximum workpiece weight of 1,800 kg and includes a high-speed Step-Tec HSK-A63 spindle capable of 24,000 rpm. Ideal for precision machining with a tool magazine capacity of 46 tools. Contact us for more information about this machine.
Overview
- brand: MIKRON
- year: 2000
- MODEL: VCP 1350
- application type: Milling
- Location: Slovenia
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - MIKRON VCP 1350
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 426 M
Dimensions
- Machine Depth: 4130 mm
- Machine Height: 3150 mm
- Machine Weight: 10100 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1350 mm
- Y-axis Travel: 900 mm
- Z-axis Travel: 750 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Speed: 24000 RPM
Additional Information
Additional equipment
- High-speed precision machining capability
Machine Benefits
Technical Machine Benefits
- Equipped with a automatic spindle orientation and high-speed spindle (24000 rpm)
- Coolant system pressure: 30 bar (standard) / 40 bar (optional high pressure)
- Tank capacity: 180 l (optional 600 l)
- Direct drive ac motor
- Measuring system: direct linear scales on all axes
- Clamping surface: 1425 x 860 mm
- Magazine capacity: 46 tools (standard), 92 tools (optional)
- Max. Magazine load: 200 kg
- Tool-to-tool change time: approx. 12 sec
- Available for inspection
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
