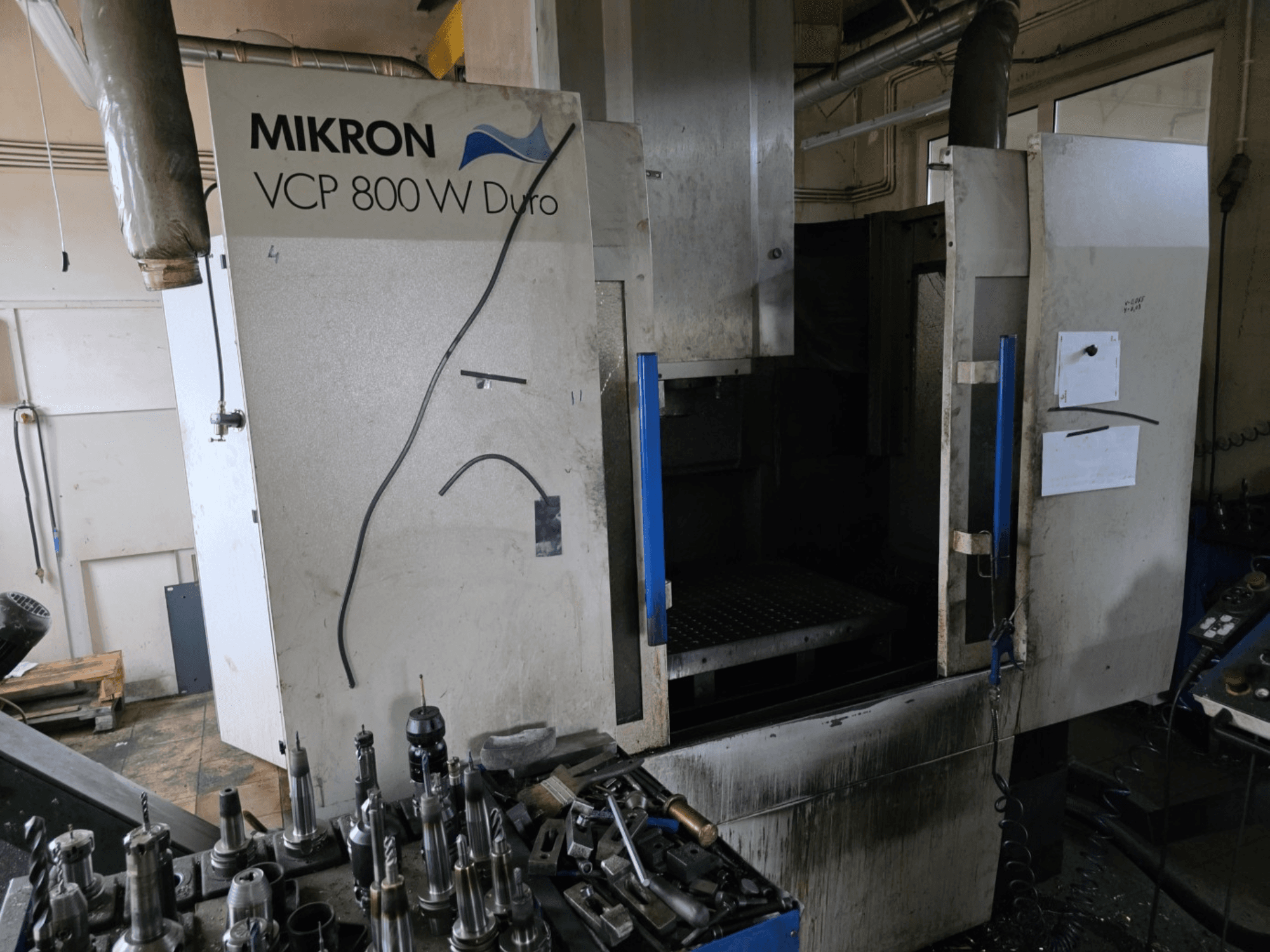

This 3-axis MIKRON VCP 800W Duro was manufactured in 2004. It features a Heidenhain iTNC 530 control system, with X, Y, Z travels of 800 mm, 650 mm, and 500 mm respectively. The machine includes a high-velocity spindle capable of 20,000 rpm and a 30-position tool magazine. Ideal for precision machining, consider the opportunity to buy this MIKRON VCP 800W Duro vertical machining centre. Contact us for more information about this machine.
Overview
- brand: MIKRON
- year: 2004
- MODEL: VCP 800W Duro
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - MIKRON VCP 800W Duro
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Weight: 9100 kg
Movement
- Number of Axes: 3
- X-axis Travel: 800 mm
- Y-axis Travel: 650 mm
- Z-axis Travel: 500 mm
Technical Specification
- Spindle Power: 12 kW
- Spindle Speed: 20000 RPM
Additional Information
Tool interface: HSK-A63
Tool magazine: 30 positions
Additional equipment
Chip conveyor
Complete set of tool holders and tools (as shown in photos)
BILZ ThermoGrip shrink-fit system with CoolDown (induction device for mounting/dismounting tools in shrink-fit holders; manufacturer: BILZ)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
