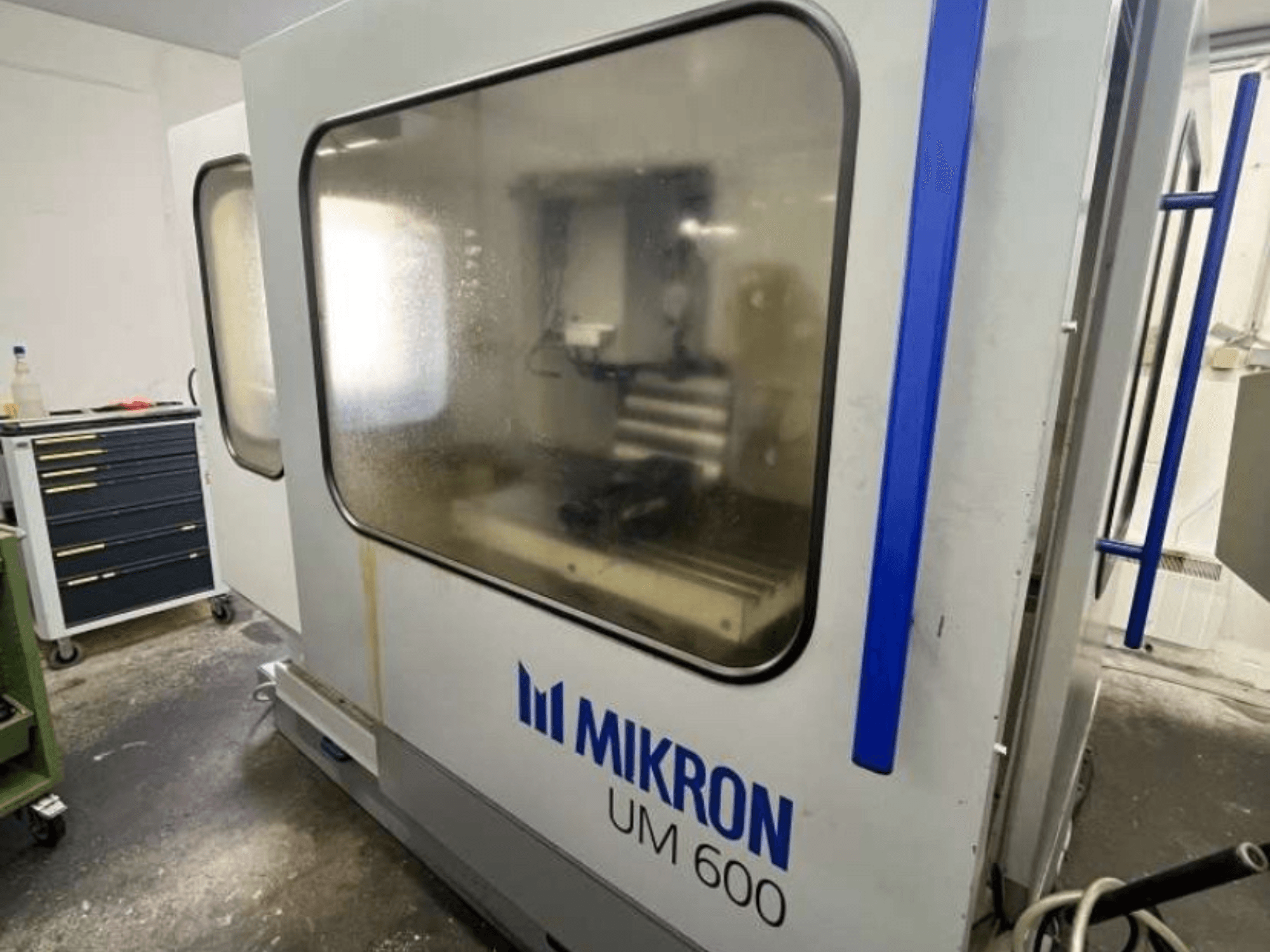

MIKRON UM 600 TNC 410/426 universal machining center, side view, with fogged glass and visible tool storage nearby.
MIKRON UM 600 TNC 410/426 universal machining center, side view, with fogged glass and visible tool storage nearby.

MIKRON - UM600 TNC 410/426AT-MIL-MIK-1998-00001

£ 13,932
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis MIKRON UM600 TNC 410/426 was manufactured in 1998. It features a maximum longitudinal movement of 600 mm, transverse movement of 500 mm, and vertical movement of 450 mm. The machine is equipped with a robust table size of 520 x 900 mm and a maximum table load capacity of 400 kg. If you are looking to get high-quality machining capabilities, consider the MIKRON UM600 TNC 410/426 universal machining centre we have for sale. Contact us for further details.

Overview

  • brand: MIKRON
  • year: 1998
  • MODEL: UM600 TNC 410/426
  • production hours: 11320
  • application type: Milling
  • Location: Austria
  • machine type: Universal Machining Centre

Technical Information - MIKRON UM600 TNC 410/426

Movement

  • Number of Axes: 3
  • X-axis Travel: 600 mm
  • Y-axis Travel: 500 mm
  • Z-axis Travel: 450 mm

Technical Specification

  • Max. Tool Weight: 13 kg
  • Spindle Power: 15 kW
  • Spindle Speed: 6000 RPM
  • Taper Size: SK 40

Additional Information

  • Machining spindles (vertical and horizontal)

    • Drive power (44% duty cycle): 15 kW

    • Drive power (100% duty cycle): 6 kW

    • Max. torque: 50 Nm

    • Max. torque at spindle (44% duty cycle): 800 Nm

    • Number of gear stages: 4

    • Max. tool diameter: 130 mm

    • Included options: in-machine measurement and fast spindle

  • Feed drives (AC)

    • Programmable feed rate X/Y: 0 – 15,000 mm/min

    • Programmable feed rate Z: 0 – 12,000 mm/min

    • Rapid traverse X/Y: 15,000 mm/min

    • Rapid traverse Z: 12,000 mm/min

  • Coolant system

    • Reservoir capacity: 150 l

    • Flow rate: approx. 20 l/min

  • Clamping table

    • Table size: 520 × 900 mm

    • Number of T-slots: 4

    • T-slot width: 14 H7

  • Tool changer TCD 44

    • Tool positions: 22

    • Tool diameter: 80 / 130 mm

    • Max. tool length: 350 mm

    • Max. tool weight: 6 kg

    • Max. workpiece weight in drum magazine: 200 kg

    • Chip-to-chip time: 20–25 s

    • Tool change time: 12–16 s

  • Electrical connection

    • Total installed rated power: 15.8 kW

    • Useful/connected power: 12.3 kW

    • Operating voltage/frequency: 3 × 400 V / 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
