➤ Used MICROCUT v-30 For Sale | gindumac.com

Show in original language

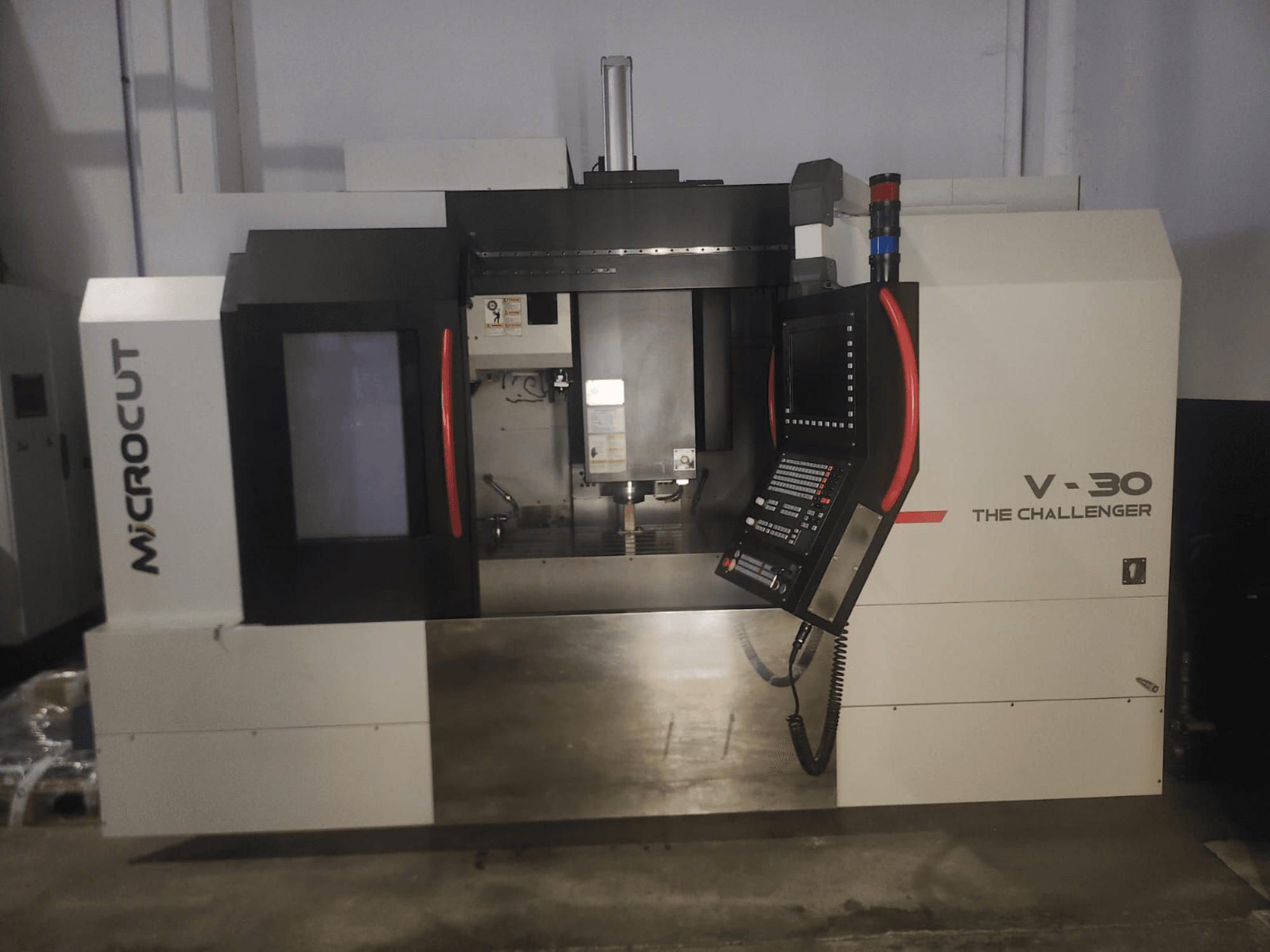

This 3-axis MICROCUT V-30 vertical machining center was manufactured in 2013. It features a table size of 1400 × 710 mm, capable of handling a maximum load of 1000 kg. The spindle operates at speeds up to 18,000 rpm with a power of 20 kW. Rapid feed rates reach 48,000 mm/min, enhancing productivity. If you are looking to get high-quality milling capabilities, consider the MICROCUT V-30 machine we have for sale. Contact us for more information.

Overview

brand: MICROCUT
year: 2013
MODEL: v-30
application type: Milling
Location: Italy
machine type: Vertical Machining Centre

Technical Information - MICROCUT v-30

Main drive

Spindle speed range: 50–18000 1/MIN
Tool taper: HSK-A63
Wire diameter: 70 mm
Number of axis: 3

Movement

X-AXIS Movement: 1200 mm
X-AXIS Rapid traverse: 48000 mm/min
Y-AXIS Movement: 730 mm
Y-AXIS Rapid traverse: 48000 mm/min
Z-AXIS Movement: 650 mm
Z-AXIS Rapid traverse: 48000 mm/min

Table

Number of tslots: 7
Table load: 1000 kg

Tools

Number of index: 24
Max weight: 8 kg
Max tool diameter: 75 mm
Max tool length: 300 mm

Additional Information

Table
- Table size: 1400 × 710 mm
Working capacity
- Distance spindle nose to table: 142–792 mm
- Distance spindle axis to column surface: 800 mm
Spindle
- Type: Electrospindle
- Power: 20 kW
Feed rates
- Working feed: 1–12,000 mm/min
Tool magazine
- Max tool diameter (without adjacent tools): 125 mm
- Tool change time: 2 sec
Ball screws
- Type: Hollow and cooled ball screws
Axis positioning
- Positioning accuracy: ±0.005 / 300 mm
- Repeatability: 0.005 mm
Coolant system
- Pump motor: 900 W
- Tank capacity: 660 liters
- Maximum flow rate: 130 l/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
