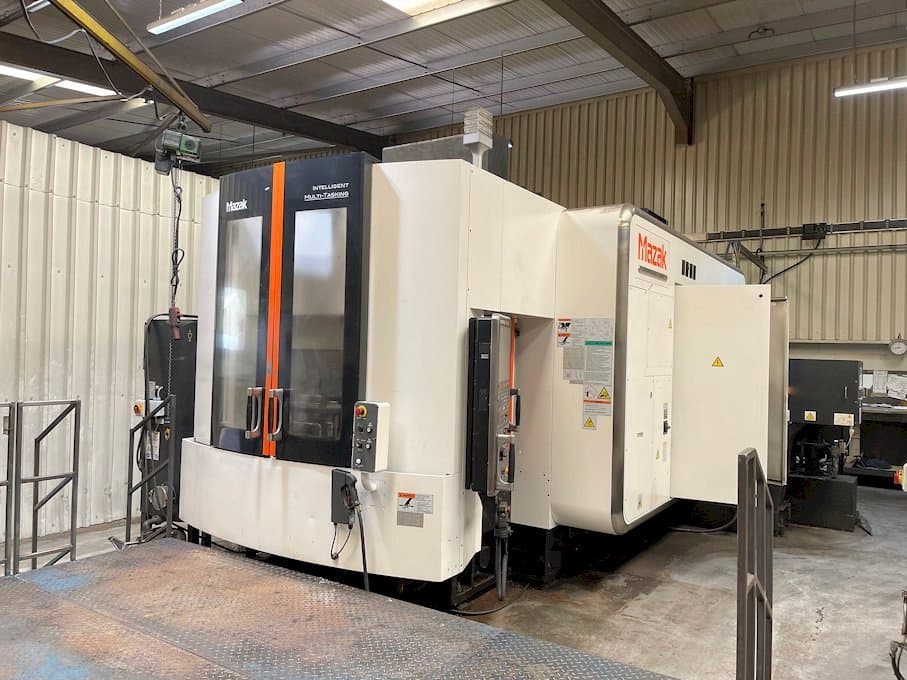

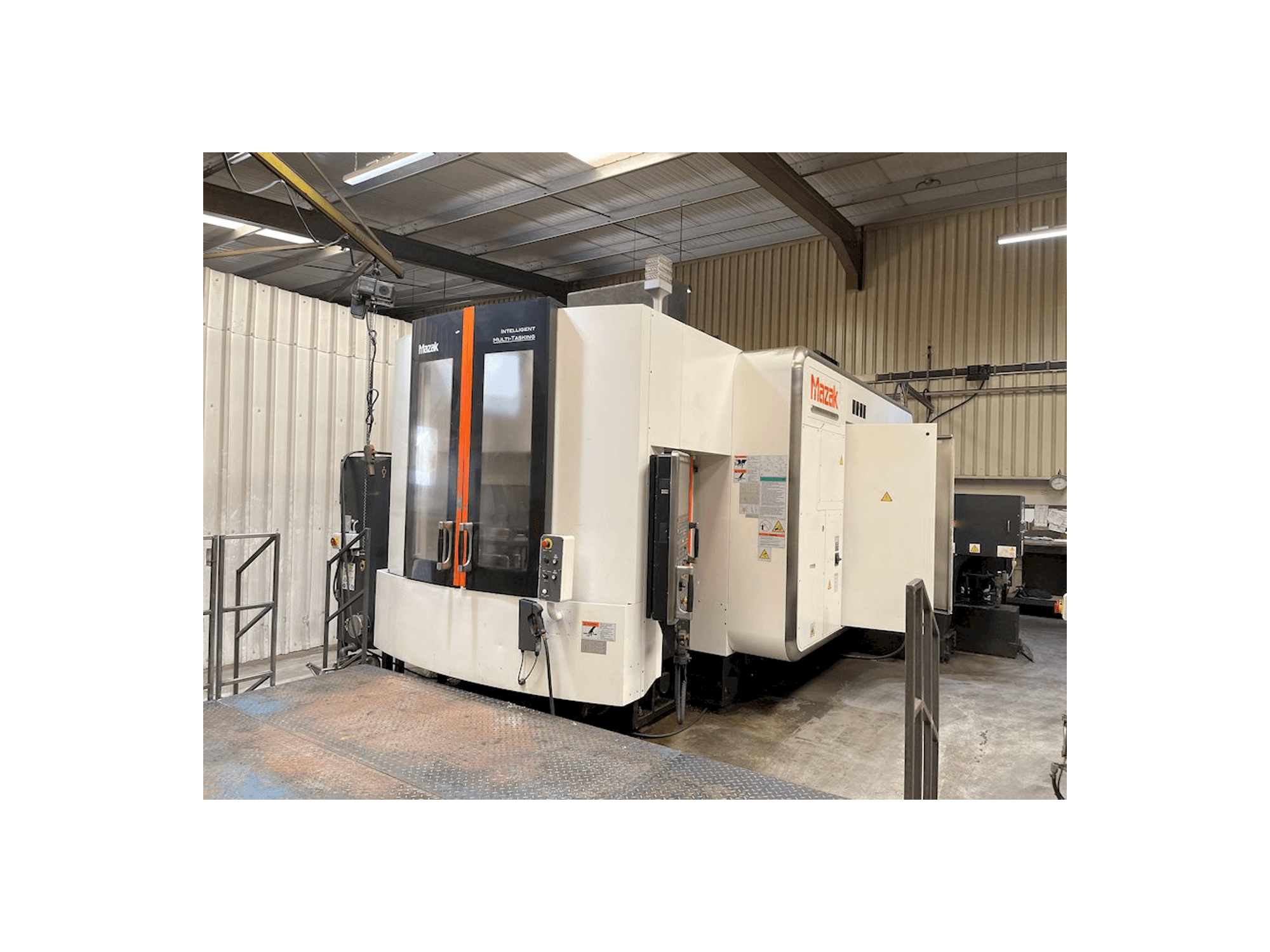

This Mazak VARIAXIS i-800 Vertical Machining center was made in Japan in 2015. It has 38723 hours of which 20364 are cutting hours. This 5 axis machine is operated through a Mazatrol Matrix 2 control unit. It works with a spindle speed up to 10000 rpm. It comes with a tool setter and a spindle probe. Very good condition.
Overview
- brand: Mazak
- year: 2015
- MODEL: VARIAXIS i-800
- production hours: 20364
- application type: Milling
- Location: United Kingdom
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Mazatrol
- GINDUMAC ID: GB-MIL-MAZ-2015-00003
Technical Information
General Data
- Measurements width: 5580 mm
- Measurements depth: 2695 mm
- Measurements height: 3494 mm
- Machine weight: 21000 KG
Control Unit
- Brand: Mazatrol
- Model: Matrix 2
Main drive
- Number of spindles: 1
- Spindle speed range: 10000 1/MIN
- Spindle motor power: 37 kW
- Number of axis: 5
Movement
- X-AXIS Movement: 730 mm
- Y-AXIS Movement: 850 mm
- Z-AXIS Movement: 560 mm
Workpiece
- Workpiece drm: 800 mm
- Workpiece weight: 1000 KG
Table
- Outer length: 800 mm
- Outer width: 800 mm
- Number of tslots: 5
- Distance between: 18 mm
- Min distance between vertical spindle and table: 230 mm
- Max distance between vertical spindle and table: 790 mm
Tools
- Slots in storage: 30
- Max weight: 20 KG
- Max tool diameter: 125 / 210 mm
- Max tool length: 400 mm
- Type of tool holder: BT 50
Media
- Main electronic connection: 400V / 60Hz
- Power consumption: 78.3 kVA
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - A-axis: −120° ~ +30°
- - C-axis: ±360°
- - Rapid feedrates x/y/z-axis: 42 m/min (a/x/c 18000 °/min)
- - Cutting feedrate x/y/z-axis: 42 m/min (a/x/c 9000 °/min)
- - Tool setter
- - Coolant
- - Spindle probe
- Qualitative Machine Benefits:
- - Includes machine manual
- - Very good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
