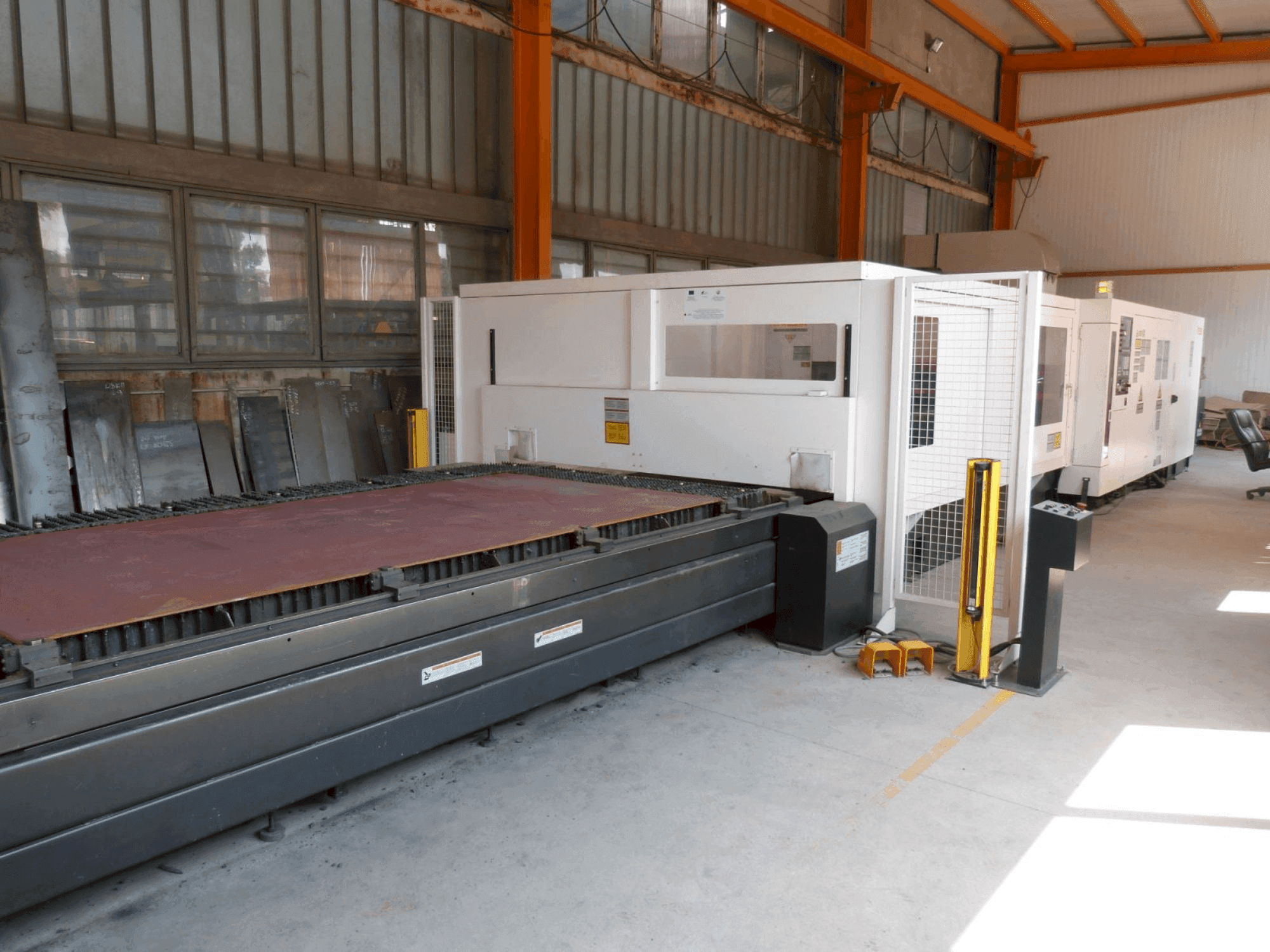

This Mazak SUPER TURBO-X 612 MK III G was manufactured in 2015. It features a maximum cutting area of 2000 × 4000 mm and a resonator power of 4 kW. Standard equipment includes an Automatic Nozzle Changer, Auto Calibration, and a Safety Cover. Additional features like a 2-Pallet Changer and a Dust Collector enhance its functionality. If you are looking to get high-quality cutting capabilities, consider the Mazak SUPER TURBO-X 612 MK III G machine we have for sale. Contact us for more information.
Overview
- brand: Mazak
- year: 2015
- MODEL: SUPER TURBO-X 612 MK III G
- application type: Cutting
- Location: Bulgaria
- machine type: CO2 Laser Cutting Machine
Additional Information
Additional equipment
- LN710 5" Servo Focus Head + LN010 5" High-Accuracy Lens (2.0 MPa)
- PC010 2-Pallet Changer
- TL322 4th Gas Line (Super High Pressure, 3 MPa)
- XXX001 Smart Junior (Software) with Training
- XXX002 Donaldson Dust Collector
- XXX003 Set-Up Kits
Machine Benefits
Technical Machine Benefits
- Max cutting area: 2000 × 4000 mm
- Stroke (x/y/z): 4020 / 2020 / 90 mm
- Positioning accuracy: ±0. 01/500 mm (x,y), ±0. 01/100 mm (z)
- Resonator: 4 kw
Extra Information
Additional Equipment AS661 Automatic Nozzle Changer (3 positions) AS670 Auto Calibration AS679 Intelligent Focus Measurement/Adjustment AS682 Nozzle Cleaning CC087 Class 1 Safety Cover CV200 Scrap Conveyor EL110 EU Transformer ES300 Side Blowing LN012 7.5" High-Accuracy Lens (2 MPa) LN711 7.5" Servo Focus Head NO871 Pointing Device SD073 Operation Manuals (CD) SD119 Intelligent Monitoring SD120 Set-Up Tools SD130 Foundation Kit SD154 Non-contact Profiler with Retry SD167 Work Clamps (5 pcs) & Locator SD170 Workpiece Lifter SD191 Air Dryer (in Chiller) SD214 3-Assist-Gas Selector (Stepless) SD216 NC Gas Pressure Control SD260 Lens Cleaning Kit SD270 Alignment Tools SD282 Oscillation Indicator Lamp SD290 Chiller Unit SD301 High-Accuracy Nozzles Ø1.2/2/3 mm SD303 Nozzle Adapters (3 pcs) SD728 Standard Mazak Color (F white / S black) TL304 Knife Edge TL321 3rd Assist Gas Line 3.0 MPa Health & Safety ES230 Dust Collector Preparation SD030 Work Light SD748 CE (EMC + Level D) AS050 Automatic Shutdown at Breaker NC Control FT460 Custom Macro MZ200 Jumping Detector NC079 Mazatrol Preview NC319 15" XGA TFT Monitor NO869 LAN, NO870 USB
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
