Mazak - Quick Turn Nexus 100-II (QTN 100-II)DE-TUR-MAZ-2008-00003

Name: Mazak Quick Turn Nexus 100-II (QTN 100-II)
Brand: Mazak
SKU: DE-TUR-MAZ-2008-00003
Price: 25357 GBP
Availability: InStock

£ 25,357

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak Quick Turn Nexus 100-II (QTN 100-II) For Sale

Show in original language

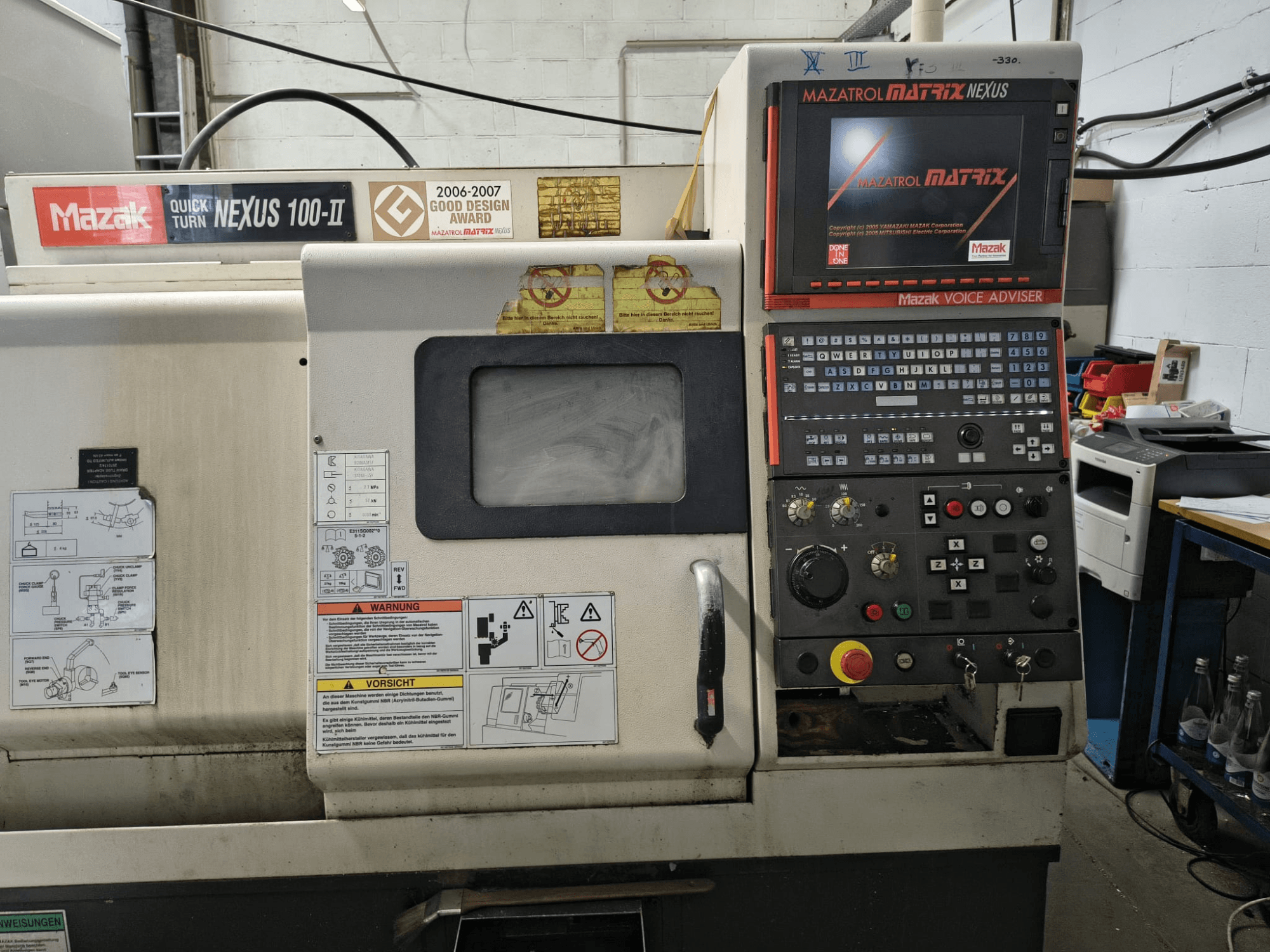

Horizontal turning machine manufactured in 2008. This Mazak Quick Turn Nexus 100-II (QTN 100-II) features a maximum turning diameter of approximately 280 mm and a turning length of about 335 mm. It includes a 12-position drum turret and a programmable tailstock. Known defects: Spindle fault: Alarm "44 SPINDEL ERROS 3" - Machine must warm up before machining, then operational. Repair costs according to quote approx. 2,800 EUR. If you are looking to get high-quality turning capabilities, consider the Mazak Quick Turn Nexus 100-II machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: Mazak
year: 2008
MODEL: Quick Turn Nexus 100-II (QTN 100-II)
production hours: 58985
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - Mazak Quick Turn Nexus 100-II (QTN 100-II)

Dimensions

Machine Weight: 3500 kg

Movement

Number of Axes: 2
X-axis Travel: 185 mm
Z-axis Travel: 385 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Speed: 6000 RPM

Additional Information

Turning Length: Approx. 335 mm (Z-travel approx. 385 mm)

- Turning Diameter: Max. turning diameter approx. 280 mm

- Swing Diameter: Approx. 550 mm

- Number of Turrets: 1 turret, 12-position drum turret (Bolt-on type)

- Tool Holder / Mounting: Mazak block mounting (Bolt-on), various tool adapters and tool holders included

- Tailstock: Available (Programmable)

- Main Spindle: Without C-axis

- Main Spindle Speed: 6,000 rpm - Spindle Nose: A2-5

- Spindle Bore: Approx. 61 mm

- Main Drive Power: Approx. 11 / 7.5 kW - Bar Capacity / Pass-Through: Ø 51 mm (Standard chuck 6" / 152 mm, 3-jaw hydraulic) - Optional (not included): Various tool adapters and holders, clamping equipment, Hainbuch clamping technology

- Chip Conveyor: None

- Documentation: Available

- Demonstration Status: Operational under power (after warm-up phase)

- Known Defects: Spindle fault Alarm "44 SPINDEL STÖRUNG 3" - Machine must warm up before machining, then operational. Estimated repair cost approx. 2,800 EUR.

- Machine Weight: 3,500 kg (7,700 lbs)

- Main Circuit Voltage: 3AC 400 V 50/60Hz

- Control Circuit Voltage: AC 100V / DC 24V

- Max Main Motor Voltage: 400 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
