Mazak - Quick Turn 10DE-TUR-MAZ-1999-00002

Name: Mazak Quick Turn 10
Brand: Mazak
SKU: DE-TUR-MAZ-1999-00002
Price: 10305 GBP
Availability: InStock

£ 10,305

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak Quick Turn 10 For Sale | gindumac.com

Show in original language

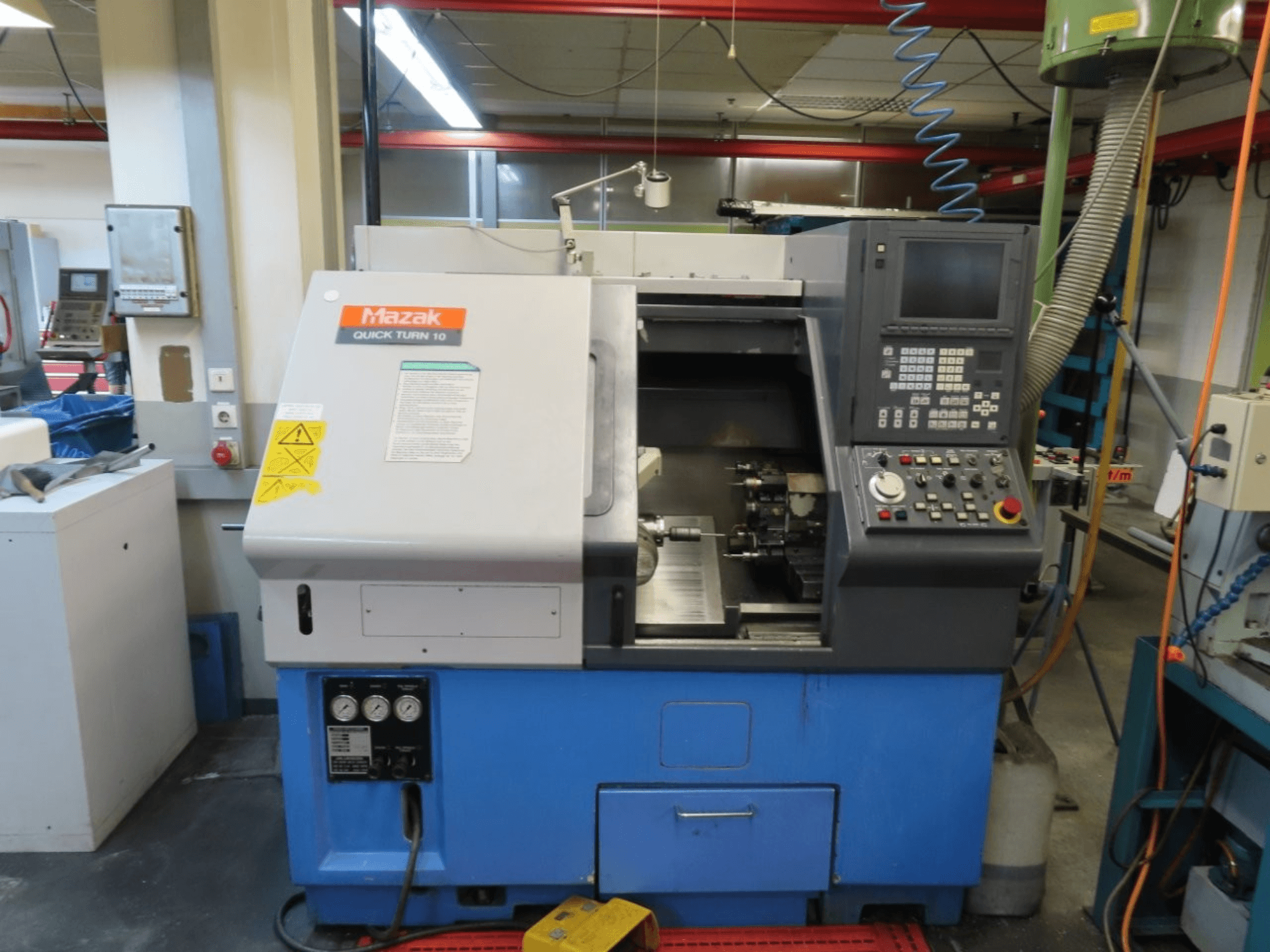

Horizontal turning machine manufactured in 1999. This Mazak Quick Turn 10 features a machine weight of 2,750 kg and a standard length of 1,800 mm. It is equipped with advanced control features such as Polar Coordinates Input and Cylindrical Interpolation. If you are looking to get high-quality turning capabilities, consider the Mazak Quick Turn 10 machine we have for sale. Contact us for further details.

Overview

brand: Mazak
year: 1999
MODEL: Quick Turn 10
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: MAZATROL

Technical Information - Mazak Quick Turn 10

Control Unit

Control Brand: MAZATROL
Control Model: Fusion 640T

Dimensions

Machine Height: 1800 mm
Machine Length: 1800 mm
Machine Weight: 2750 kg
Machine Width: 1480 mm

Movement

Number of Axes: 2
X-axis Travel: 90 mm
Z-axis Travel: 290 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Speed: 6000 RPM

Additional Information

- Machine Length with Chip Conveyor / Sub Tank: Approx. 4,423 mm (174.12 in)

- Main Motion Drives: SRV1-X (X-axis servo motor), SRV1-Z (Z-axis servo motor)

- Control Features / Options Enabled: Polar Coordinates Input, Cylindrical Interpolation, Synchro Main Spindle Tapping, Direct DWG Size Input, User Macro, G00 Macro Variables, User Macro Interrupt, Work Coordinates Select

Included Equipment:

Sub Tank High-Pressure Coolant, Chip Conveyor (Back Discharging Type), Chip Bucket

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
