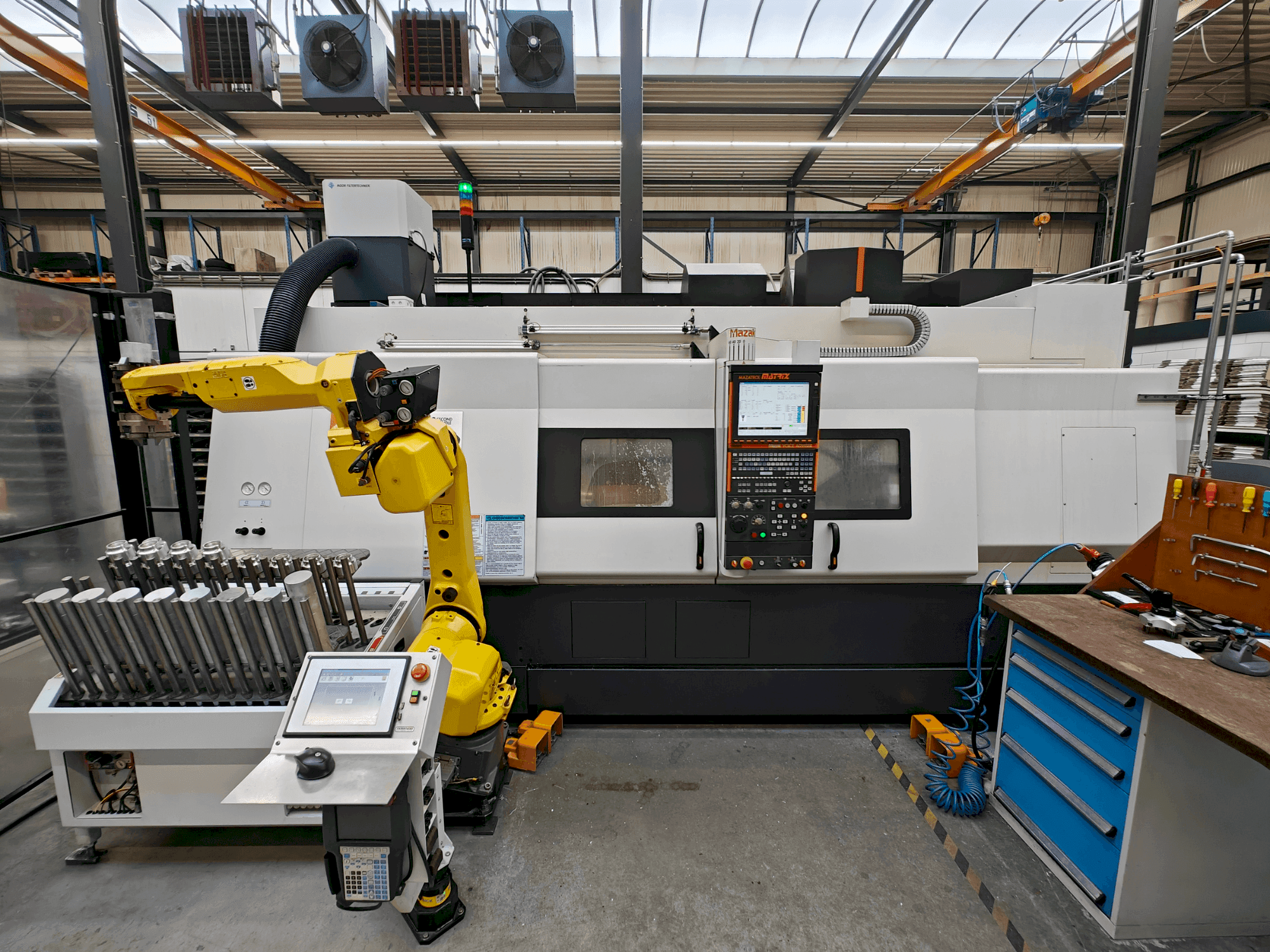

Front view of Mazak Integrex 400-IV-S x 1500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Integrex 400-IV-S x 1500

Photo Gallery

Mazak - Integrex 400-IV-S x 1500NL-TUR-MAZ-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used Lathe Mazak Integrex 400-IV-S x 1500 - 2006 - for sale | gindumac.com

Show in original language

5-Axis lathe manufactured in 2006. This MAZAK Integrex 400-IV-S x 1500 boasts a Hainbuch centrofix with a 12-inch chuck on the main spindle and a Hainbuch collet topplus 100 on the sub spindle. Equipped with a Robojob robot turn assist, Mayfran chip conveyor, and extraction system. Ideal for precision machining tasks. For those seeking efficiency and reliability, consider this MAZAK Integrex 400-IV-S x 1500 lathe we have for sale. Contact us for further information.

Overview

brand: Mazak
year: 2006
MODEL: Integrex 400-IV-S x 1500
application type: Turning
Location: Netherlands
machine type: Turn-Mill Centre
control unit brand: MAZATROL

Technical Information - Mazak Integrex 400-IV-S x 1500

General Data

Measurements width: 2343 mm
Measurements depth: 5110 mm
Measurements height: 2798 mm
Machine weight: 13300kg

Control Unit

Brand: MAZATROL
Model: MATRIX

Main drive

Number of spindles: 2
Spindle speed range: 15 to 12000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 630 MM
Y-AXIS Movement: 230 MM
Z-AXIS Movement: 1585 MM

Media

Chip conveyor: Yes

Additional Equipment

- Robojob IRS-CW 38-250 automation cell available for an extra cost of 50K.
- Hainbuch system available for an extra cost of 50K
- Extraction included.
- Ca 3 months delivery time after purchase.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - The main spindle has a hainbuch centrofix with 12 inch chuck and collet topplus 100.
- - Sub spindle also equipped with hainbuch collet topplus 100.
- - Extraction included.
- - New mayfran chip conveyor.
- - Coolant tank capacity 444l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
