Matsuura MX-520

Photo Gallery

Matsuura - MX-520ES-MIL-MAT-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

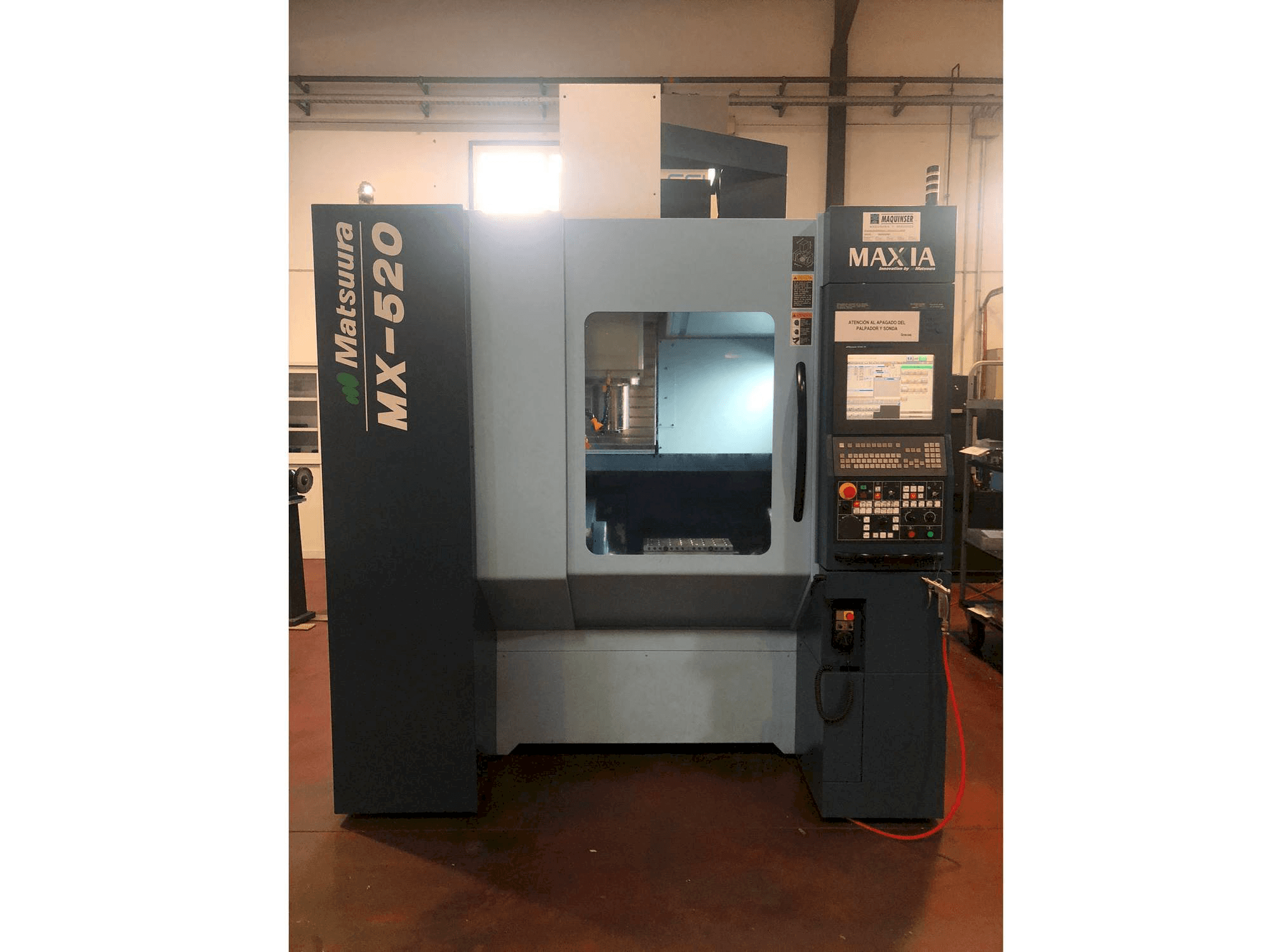

This Matsuura MX-520 Vertical Machining Center was built in the year 2017. It has a production history of only 4525 working hours. This 5 axis machine is equipped with a Matsuura G-Tech 31i control unit. It can work with a spindle speed up to 12000 rpm. This machine includes several options as 8 sets of extra M function and 3 colour patrol lights R,Y,G. It is in a very good status.

Overview

brand: Matsuura
year: 2017
MODEL: MX-520
production hours: 4525
application type: Milling
Location: Spain
machine type: Universal Machining Centre
control unit brand: MATSUURA

Technical Information - Matsuura MX-520

Control Unit

Control Brand: MATSUURA
Control Model: G-Tech 31i

Dimensions

Machine Weight: 8850 kg

Movement

Number of Axes: 5
X-axis Travel: 630 mm
Y-axis Travel: 560 mm
Z-axis Travel: 510 mm

Technical Specification

Max. Tool Weight: 10 kg
Spindle Speed: 12000 RPM
Tool Stations: 60

Additional Information

Additional equipment

Signal high speed skip.
8 sets of extra M function.
3 colour patrol light R,Y,G
Inner worm type puller
Movable manual pulse generator
X,Y,Z OPTICAL RULERS
EZ-5 5-axis re-levelling gauge, including ball
Part measuring probe and BLUM mechanical tool gauge.
Raised rear chip extractor
Transformer / Lang table not included

Machine Benefits

Qualitative Machine Benefits

Very good status
Little working hours

Technical Machine Benefits

Spindle power increased torque motor 12. 000 rpm 167 nm
Table diam. 500 mm
Blowing to piece
Spindle load monitoring function
Data server 1gb
Drill through tool 20 bar
Preparation for installation of fume extraction system.
Cnc fanuc g-tech equipped with iz1-30 nf operated through: aicc ii intelligent machining contour control; optimal torque acceleration / deceleration.
Tcpc tool centre point control (5-axis cutting) g43. 4/g49; inclined plane work command g53. 1/g68. 2/g69; work preparation error compensation g54. 4
Tool position control by tool centre control; compensation of 3 d cutting g41. 2/g42. 2/g41. 3; feed time reversal g93

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
