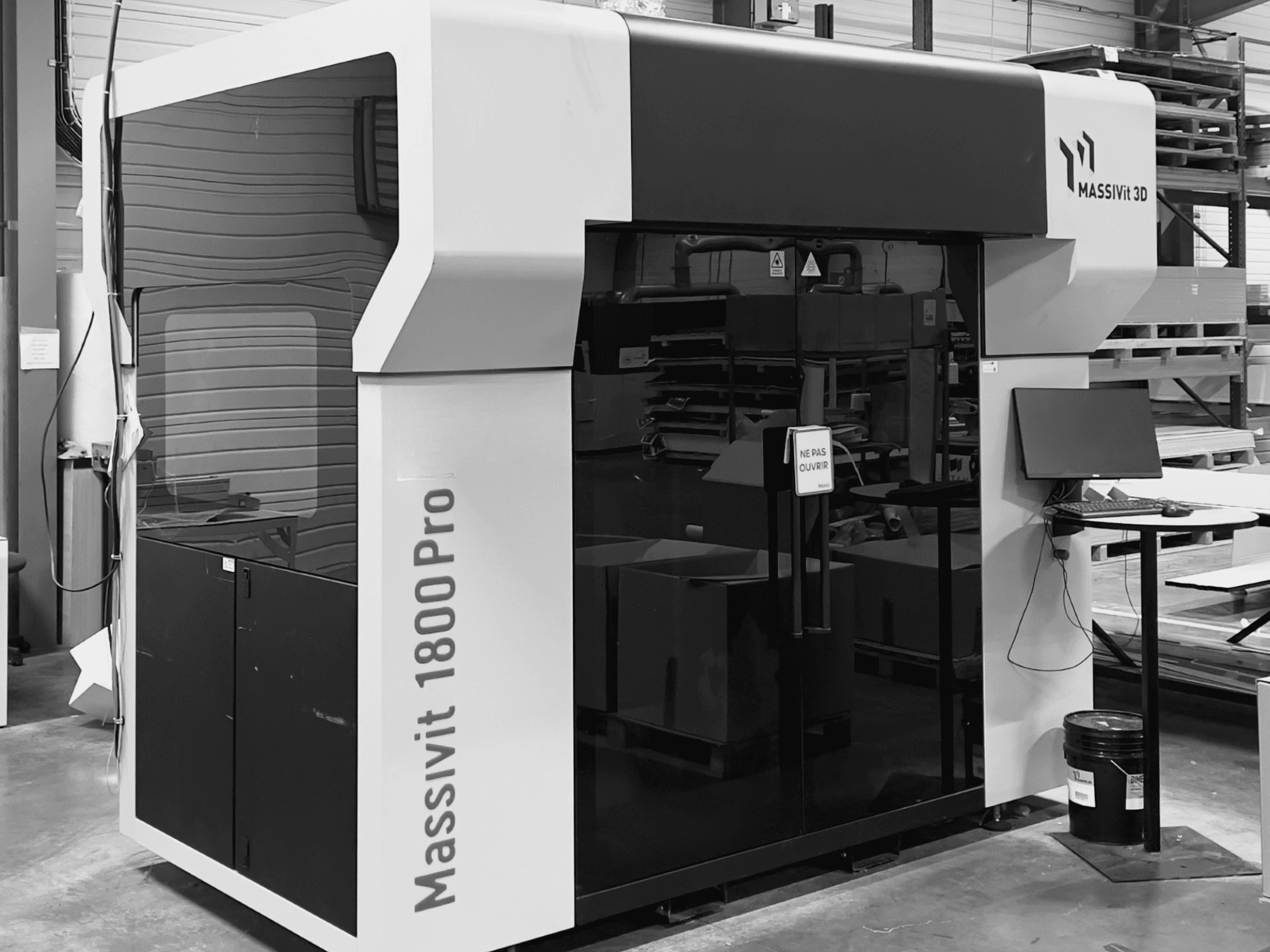

MASSIVIT - 1800 PROFR-3DP-MAS-2019-00001

Printing technology: Gel Dispensing Printing (GDP)

Printing heads: 1 installed; upgradable to 2

Max build volume (X/Y/Z): 1,450 × 1,110 × 1,800 mm

Max linear printing speed: 300 mm/s

Z-axis printing speed: up to 350 mm/hour (specified for a 1 m diameter cylinder)

Layer thickness / resolution: 1.3 mm (Normal), 1.0 mm (Quality), 0.8 mm (High Resolution)

Special printing modes: Mega-Quality, Variable Resolution, Mold Mode

Supported materials: Dimengel 90 (all-purpose), Dimengel 100 (translucent), Dimengel 300 (transparent)

Material system: Single-material

Software: Integrated software incl. Massivit SMART Pro Slicer and Estimator Tool; advanced slicing algorithms; Mold Mode; Variable Resolution; Mega-Quality

Monitoring & automation: Automatic time-based cleaning; camera on printing head tip; remote monitoring; remote operation/support via computers, tablets, and phones

Current configuration / pricing: Equipped with one printing head; optional second printing head available for an additional EUR 5,000

Current machine status: Two units available; being replaced by new machines. Replacement container ETA 29 Oct 2026; installations expected early November. Both units purged/drained and currently not in operation.
