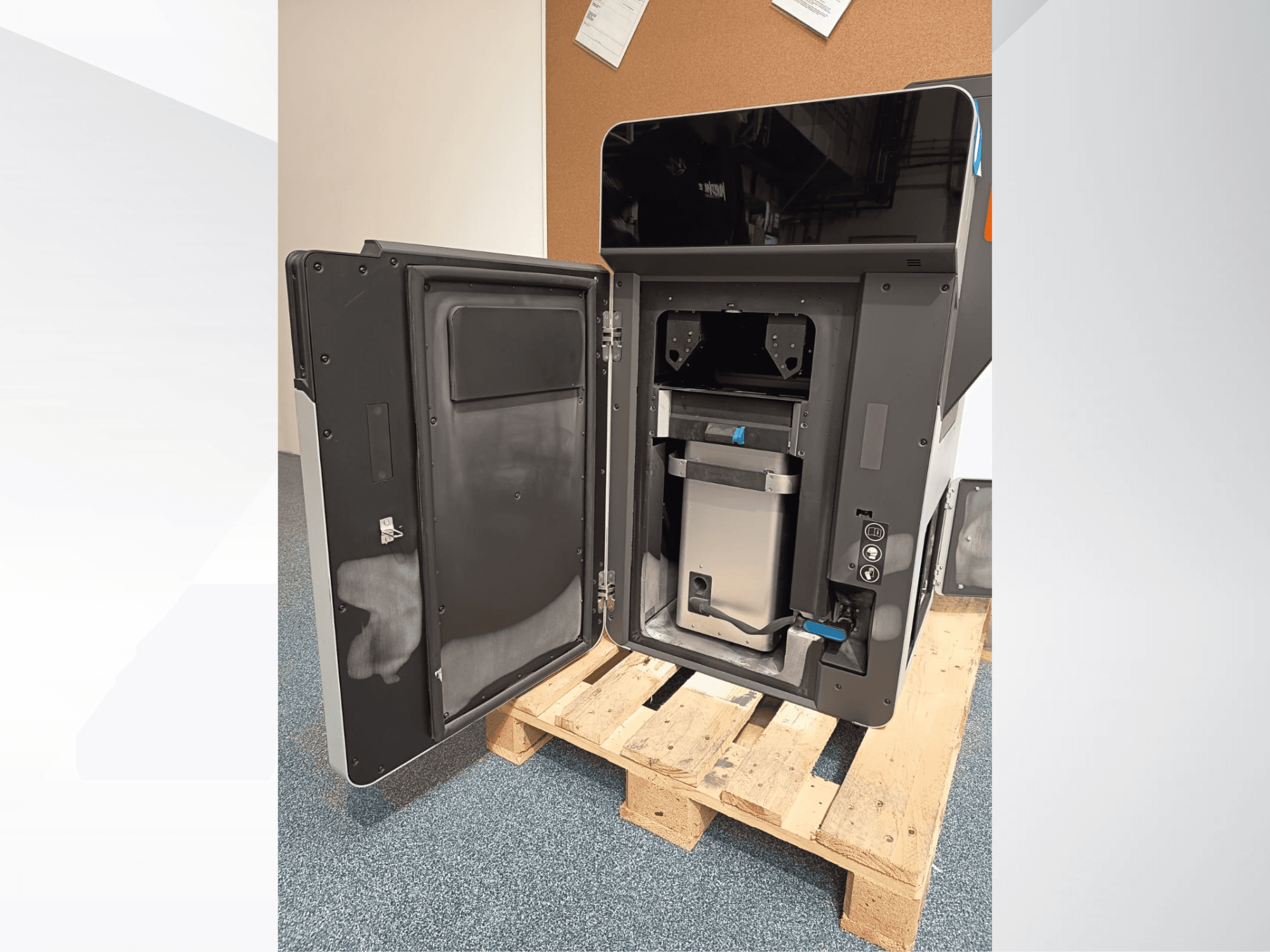

Plastic 3D printer manufactured in 2021. This FORMLABS Fuse 1 features a build volume of 165 x 165 x 300 mm and a hopper capacity of 8.5 kg for PA12 nylon. It operates with a laser type of Ytterbium Fiber and has a maximum part size of 15.9 x 15.9 x 29.5 cm. If you are looking to get high-quality 3D printing capabilities, consider the FORMLABS Fuse 1 machine we have for sale. Contact us for further details.
Overview
- brand: FORMLABS
- year: 2021
- MODEL: Fuse 1
- application type: 3D Printing
- Location: Austria
- machine type: Plastic 3D Printer
- control unit brand:
Technical Information - FORMLABS Fuse 1
Dimensions
- Machine Height: 1065 mm
- Machine Length: 685 mm
- Machine Weight: 114 kg
- Machine Width: 645 mm
Movement
- Number of Axes: 3
- X-axis Travel: 165 mm
Additional Information
Formlabs Fuse 1
Build Volume 165 x 165 x 300 mm 6.5 x 6.5 x 11.8 in
Layer Thickness 110 microns 0.004 in
Build Speed 10 mm per hour 0.39 in per hour
Laser Type Ytterbium Fiber
Laser Spot Size 200 microns 0.0079 in
Material Refresh Rate 30 to 50 percent
Hopper Capacity 8.5 kg PA12 nylon 18.7 lb
Dimensions 685 x 645 x 1065 mm
Maximum Part Size 15.9 x 15.9 x 29.5 cm 6.3 x 6.3 x 11.6 in
Minimum Access Dimensions 125.5 x 149.5 x 187.0 cm 49.4 x 59.0 x 73.6 in
Printer Dimensions 64.5 x 68.5 x 107 cm 165.5 cm with stand
Weight 114 kg
Startup Time 60 minutes
Operating Environment 18 to 28 degrees Celsius 68 to 82 Fahrenheit less than or equal to 30 percent humidity
Internal Temperature 200 degrees Celsius 392 Fahrenheit
Temperature Control Quartz tube heating elements PTC cartridges
Air Handling pressure controlled two stage filtration HEPA and carbon
Power Requirements EU 230 VAC 7.5 A US 120 VAC 15 A
Galvanometers Formlabs custom
Laser Wavelength 1065 nm
Laser Power maximum 10 watts
Beam Divergence 4.01 mrad
Laser Class Class 1
Connectivity WiFi 2.4 GHz Ethernet 1000 Mbit USB 2.0
Touchscreen 10.1 inch 1280 x 800
Control Brand Formlabs
The display is damaged however this does not affect the function
Fuse Sift
OPTIONAL: Fuse Sift price on request
Fuse Sift Dimensions 99.1 × 61.0 × 188.8 cm 39.0 × 24.0 × 61.8
Fuse Sift Weight 93 kg without build chamber or powder 205 lb
Build Chamber Dimensions 27.9 × 34.2 × 48.9 cm 11.0 × 13.5 × 19.3 in
Build Chamber Weight 11 kg 17.6 kg full with 20 percent packed powder 24.3 lb 38.8 lb
Build Volume 16.5 × 16.5 × 30.0 cm 6.5 × 6.5 × 11.8 in
Fresh Powder Hopper Capacity 8.5 kg Nylon 12 18.7 lb
Used Powder Hopper Capacity 9.1 kg Nylon 12 20 lb
Air Filtration Technology replaceable HEPA filter
Operating Environment 18 to 26 degrees Celsius 68 to 80 Fahrenheit less than or equal to 30 percent humidity
Air Handling negatively pressurized hood with replaceable HEPA filter independent venting system
Power Requirements EU 230 VAC 7.5 A dedicated circuit US 120 VAC 15 A dedicated circuit
Power Requirements high power vacuum EU 230 VAC 10 A US 120 VAC 20 A
Vacuum Requirements auxiliary vacuum with static dissipative grounded components
Sound Emission maximum 76.5 dB
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
