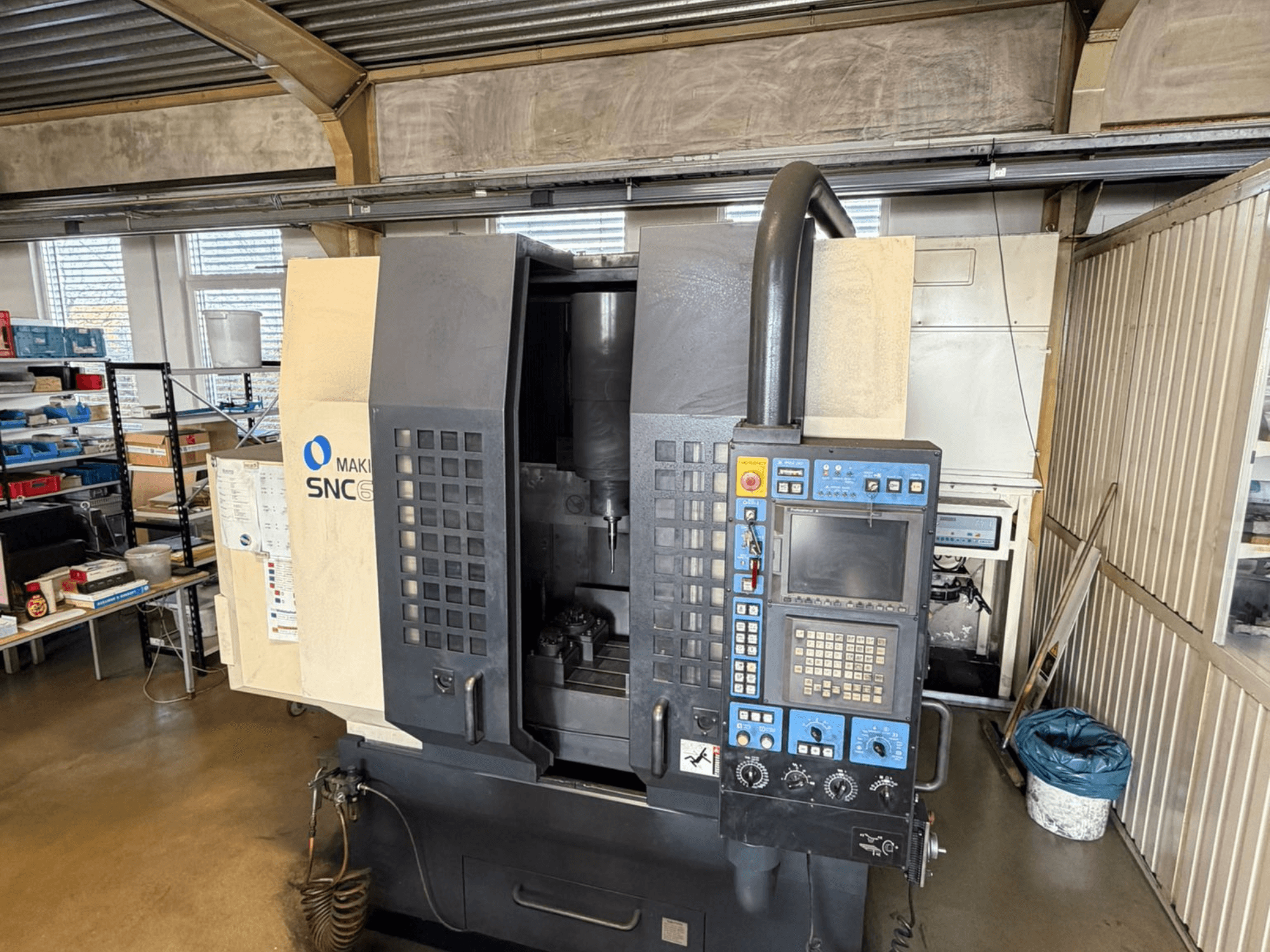

Makino - SNC 64-A15AT-MIL-MAK-2001-00001

Electrical

• Operating voltage: 400 V

• Frequency: 50 Hz

• Phases: 3-phase

• Nominal current: 90 A

• Recommended supply fuse: 100 A (slow-blow/time delay)

• Supply cable size: 35 mm² copper

• Wiring diagram: 4036 EP 0024

CNC / Control

• Microcomputer control: Professional A

• CNC: FANUC System 16iM

• DNC connection: Data server interface

• Integrated IC memory: 160 MB

• Interpolation: NURBS

• Programs: 125 main and sub-programs storable simultaneously

• Coordinate input: Polar coordinate input available

• High-speed contour control: Super-GI

• Processor: RISC for fast 3D machining calculations

Mechanical construction

• Machine frame: Cast iron welded construction

• Axes layout: Cross table system (X, Y); Z-axis console type

• Guides: Preloaded ball linear guideways

• Thermal stability: Oil circulation cooling for spindle temperature stabilization

Axis performance

• Rapid traverse: up to 16,000 mm/min

• Simultaneous machining: 3-axis contour milling

• Contour accuracy: High (Super-GI control)

Spindle

• Tool holder: HSK-A63F

• Torque: 21 Nm

• Front bearing diameter: 55 mm

Tool system

• Tool magazine capacity: 15 tools

• Tool breakage monitoring: Yes

• Automatic tool changing: Yes

Applications / capabilities

• Graphite electrode milling (incl. long tools)

• Copper electrode machining

• Hardened steel milling

• Designed for automatic production sequences

• Optimized surface finish capability

• Contour-accurate 3D milling capability

Standard/integrated systems

• Graphite dust extraction system

  • Dust removal via: air blast, spindle suction, tool suction

• Filter system with automatic collection container

• Minimum quantity lubrication (MQL)

• Designed for high-speed graphite machining

• Suitable for hardened mold cores
