➤ Used Matec MATEC 30 HV/K For Sale | gindumac.com

Show in original language

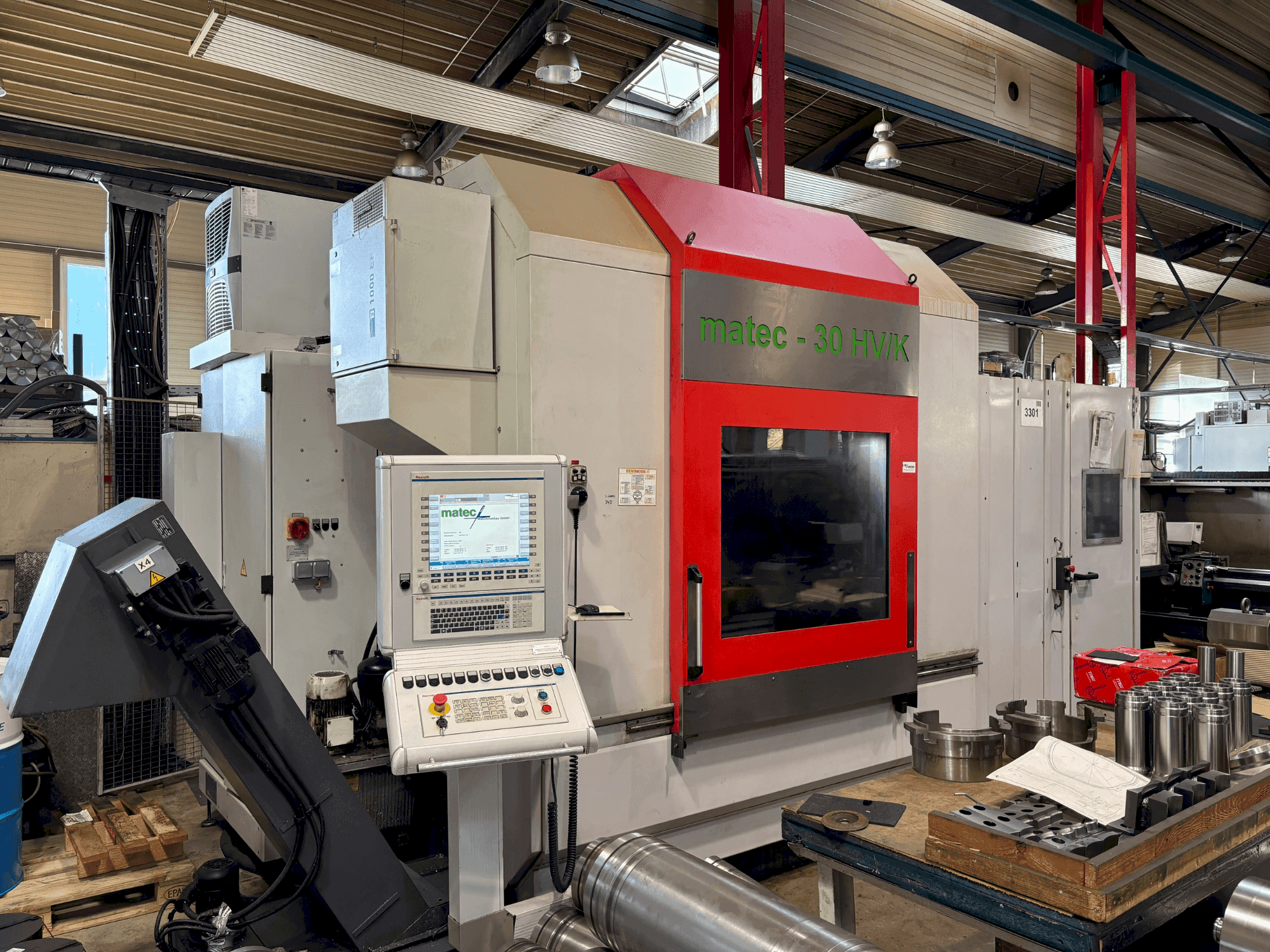

This 4-axis Matec MATEC 30 HV/K was manufactured in 2007, featuring a robust vertical machining center design. It includes a Rexroth control, a standard spindle with a speed range of 20-15,000 rpm, and a maximum torque of 100 Nm. The machine offers a tool changer with a capacity of 36 tools and a machine table that supports up to 400 kg. If you are looking to get high-quality milling capabilities consider the Matec MATEC 30 HV/K machine we have for sale. Contact us for more information.

Overview

brand: Matec
year: 2007
MODEL: MATEC 30 HV/K
production hours: 14136
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Matec MATEC 30 HV/K

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC530

Dimensions

Table Load: 400 kg

Movement

Number of Axes: 4
X-axis Travel: 1300 mm
Y-axis Travel: 600 mm
Z-axis Travel: 800 mm

Technical Specification

Spindle Power: 16 kW
Spindle Speed: 15000 RPM
Taper Size: HSK 63

Additional Information

Machine Benefits

Qualitative Machine Benefits

The machine was manufactured in 2007 but was retrofitted in 2016

Technical Machine Benefits

Hard disk: 26 gb
Integrated network card
Max. Torque: 100 nm (40% ed)
Temperature-controlled liquid cooling
Work area: fully encapsulated with roof, bellows (steel slats)
Installation: height-adjustable set-up elements
Matec hv 30 was overhauled in 2016 by manufacturer matec maschinenbau

Extra Information

Cooling & Accessories Coolant: High-pressure Coolant Supply (20 bar, optional 40 bar) Paper Belt Filter (30 µm fineness) Tank Volume: 450 l Chip Conveyor: Integrated Scraper Conveyor Oil Mist Extraction: Electrostatic Filter (1000 m³/h) Measuring & Safety Technology Direct Measuring System: Linear encoder in all axes 3D Measuring Probe: Radio transmission to the control system Tool Monitoring: Laser-supported Tool Breakage Monitoring Tool Length Measurement (software) Optional Spindle (HSK 63-A): Higher Power: 30 kW / 190 Nm Drilling Capacity (steel): up to 60 mm Milling Capacity: approx. 500 cm³/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
