LVD - Phoenix FL 3015IT-CUT-LVD-2018-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used LVD Phoenix FL 3015 For Sale | gindumac.com

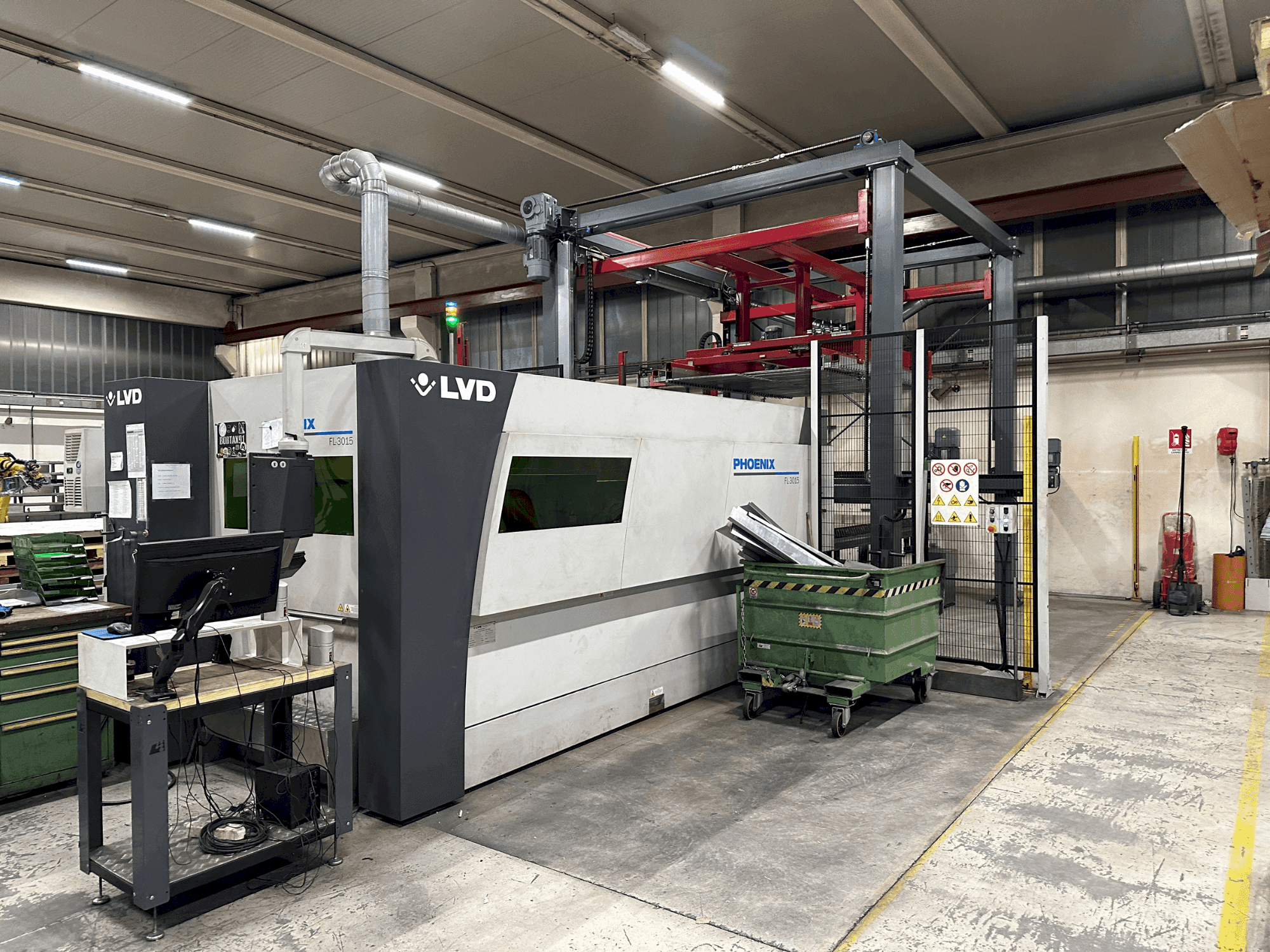

This LVD Phoenix FL 3015 was manufactured in 2018. A robust fiber laser cutting machine, it's ideal for precision cutting tasks. If you are looking to get high-quality cutting capabilities, consider the LVD Phoenix FL 3015 machine we have for sale. Contact us for more information.
Overview
- brand: LVD
- year: 2018
- MODEL: Phoenix FL 3015
- application type: Cutting
- Location: Italy
- machine type: Fiber Laser Cutting Machine
Technical Information - LVD Phoenix FL 3015
Dimensions
- Machine Depth: 10500 mm
- Machine Height: 2250 mm
- Machine Weight: 14000 kg
Additional Information
Additional equipment
- Starmatik loading/unloading system
- LM4400: Interface for third-party loading/unloading
- LM5130: Automatic nozzle changer
- LM5610: Brushes between tables
Machine Benefits
Technical Machine Benefits
- Maximum sheet dimensions: 3000 x 1500 mm
- Positioning speed: x-y axes: 140 m/min
- Repeatability accuracy: ±0. 025 mm
- Positioning accuracy: ±0. 05 mm/m
- Rated power: 36 kw (6 kw laser)
- Power range: 100 to 6000 w
- Compressed air requirements: 6 bar – 30 nm³/h peak (filter)
- Cutting gas (consumption): o2 (oxygen) or n2 (nitrogen): minimum pressure 12 bar – maximum pressure 32 bar
- Cutting gas (connections): 50 m³/hour at 6-7 bar (maximum 12 bar)
Extra Information
Software Cadman L 3D CNC TOUCH-L Electra Update
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
