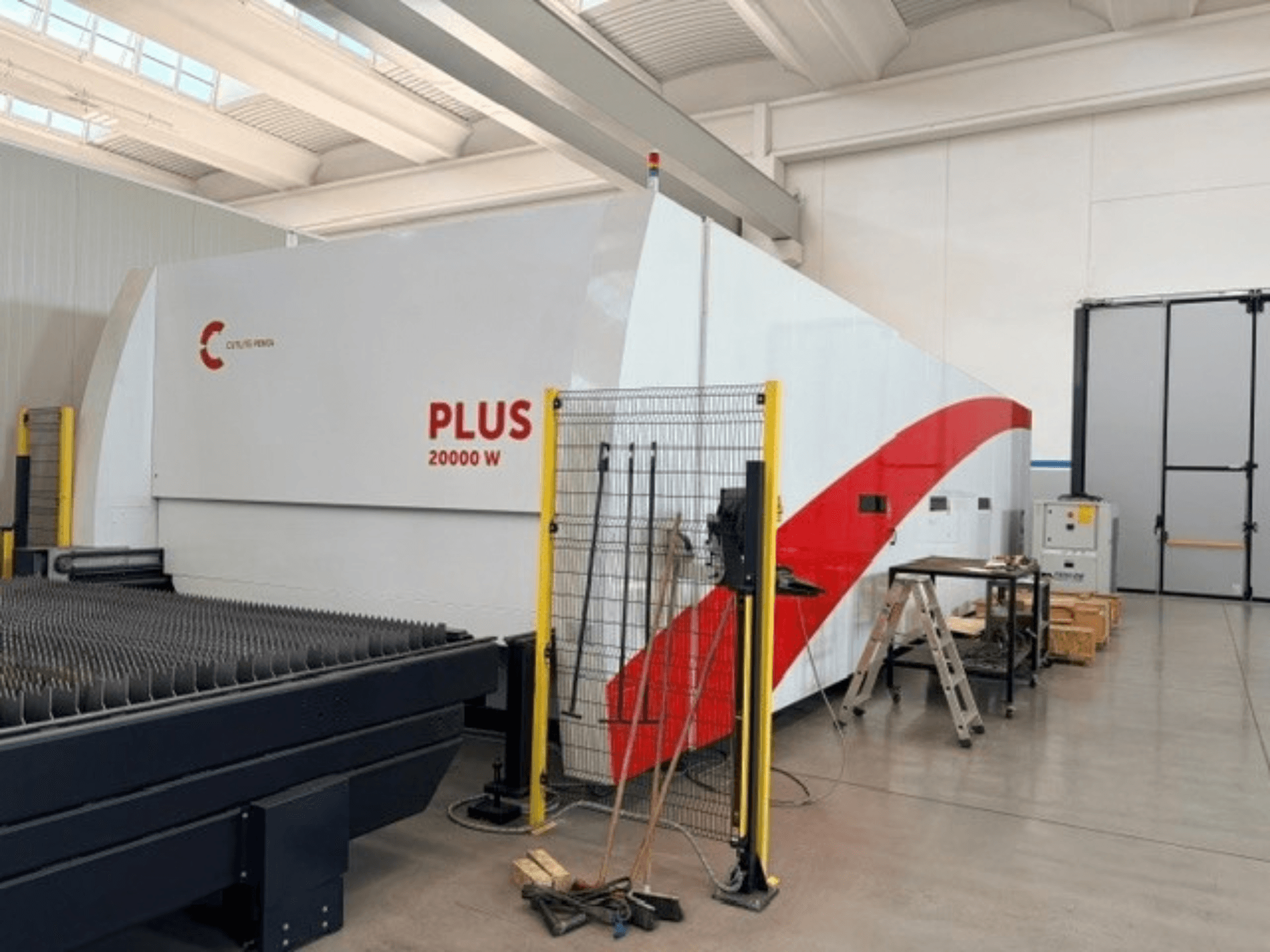

CUTLITE - PENTA PLUS LM 9030 IT-CUT-CUT-2024-00001

• Laser source: RAYCUS Fiber Laser

• Working range:

  • BEVEL working area: 8,500 × 2,500 mm

• Dynamics:

  • Maximum speed: 140 m/min

  • Maximum acceleration: 2.5 G

• Precision:

  • Mechanical accuracy: ±0.05 mm / 500 mm

  • Position repeatability: ±0.02 mm

• Cutting head / axes:

  • BEVEL autofocus cutting head

  • B/C-axis rotation range: ±45°

  • Non-contact capacitive sensor

  • Automatic focus adjustment

  • Maximum assist-gas pressure: 20 bar

  • Automatic nozzle cleaning and capacitive sensor calibration

• Control:

  • CNC: D.Electron Florenz Z32

  • Machine supervision: Smart Manager 6

  • Industrial PC with Windows 11

  • 22" Full HD touchscreen

  • Connectivity: Ethernet, USB 3.0, Wi‑Fi

  • Industry 4.0 / MES integration capability

• Installation requirements:

  • Power supply: 400 V

  • Recommended compressed-air pressure: 10 bar

  • Assist gases: Oxygen / Nitrogen / Air

Additional equipment

• Automatic LIFT pallet changer

• Double pallet system

• Chiller

• Compressed-air filter

• Internal monitoring camera

• Standard fume extraction system

• Automatic assist-gas change

• Automatic sheet recognition

• Lantek post processor for BEVEL cutting

• Full-table protective enclosure
