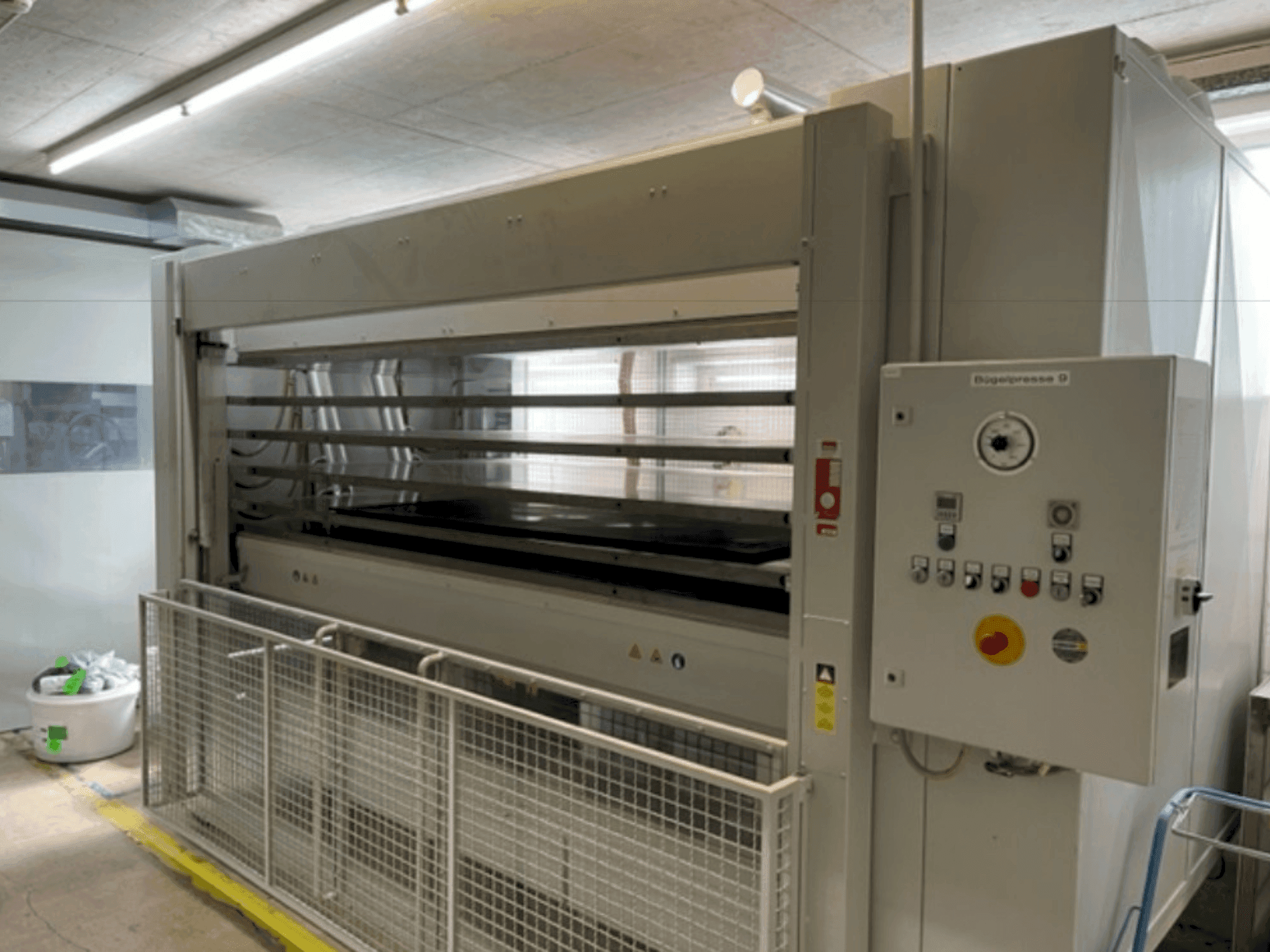

Front view of LANGZAUNER LZT 80 /5-SO machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

LANGZAUNER LZT 80 /5-SO

Photo Gallery

LANGZAUNER - LZT 80 /5-SODE-OTH-LAN-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used LANGZAUNER LZT 80 /5-SO - For Sale | gindumac.com

Show in original language

This LANGZAUNER LZT 80 /5-SO was manufactured in 2013. It features a pressing force of 800kN, five layers with a spacing of 120 mm each, and a pressing area of 3100 x 1600 mm. The hydraulic system includes eight adjustable cylinders and operates at a maximum pressure of 200 bar. Ideal for high-quality woodworking applications. Contact us for more information about this machine.

Overview

brand: LANGZAUNER
year: 2013
MODEL: LZT 80 /5-SO
application type: Other Woodworking Machinery
Location: Germany
machine type: Other (Wood)

Technical Information - LANGZAUNER LZT 80 /5-SO

Dimensions

Machine Depth: 4500 mm
Machine Height: 3000 mm
Machine Weight: 17000 kg

Additional Information

Additional equipment

Control Cabinet Key: 1
Operating Instructions in German: 1

Extra Information

Press Press Power: 800 kN Press Area: 3100 x 1600 mm Specific Pressure: Approximately 16 N/cm² Working Height: Approximately 1310 mm Hydraulics Maximum System Pressure: Approximately 200 bar Number of Press Cylinders: 8 (switchable to 4) Press Cylinder Diameter: EW 80 mm Stroke of Press Cylinders: 600 mm Tank Capacity: Approximately 90 liters Hydraulic Oil: Hyspin AWS 32 Opening Speed: Approximately 40 mm/s Closing Speed: Approximately 20 – 30 mm/s Heating / Cooling Maximum Operating Temperature: 200 °C Number of Heating/Cooling Circuits per Heating Plate: Connections on the end face 3/4 Fluid Quantity for Press (without cooling unit): Approximately 160 liters Electrical Total Power Consumption: Approximately 9.3 kW Pump Drive Power: 7.3 kW Operating Voltage: 3x 400V + N Operating Current: 29A Frequency: 50 Hz Protection Class of Electrical System: IP54 Short Circuit Protection for Installation: 32A Installation Connection Cross Section: 6 mm²

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
