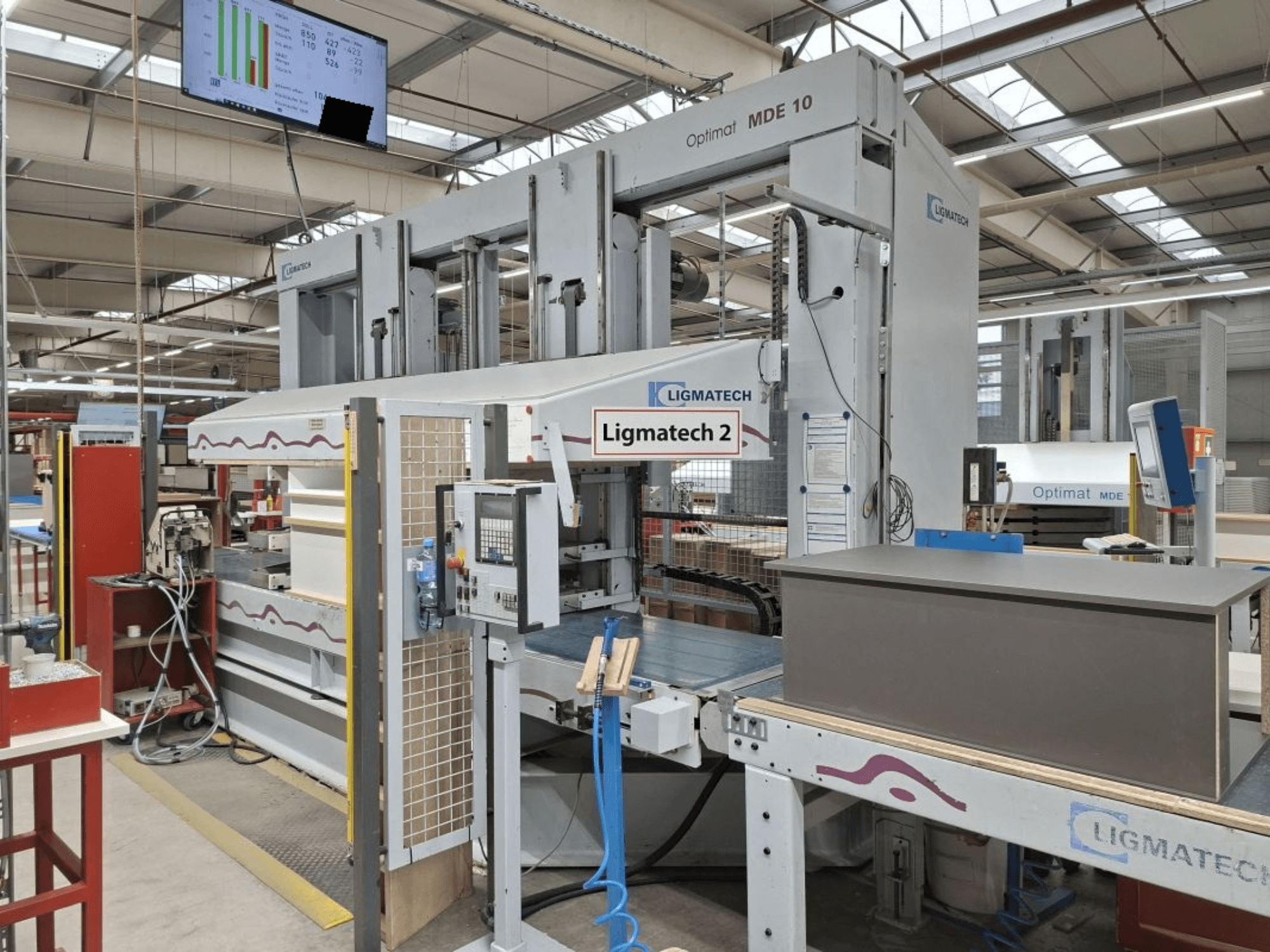

Casing press manufactured in 2001. This LIGMATECH Optimat MDE 10 features adjustable pressing forces applied both vertically and horizontally, ensuring precise operation. The machine allows for casing dimensions ranging from 300 to 2500 mm in length and 300 to 1300 mm in height. If you are looking to get high-quality casing capabilities, consider the LIGMATECH Optimat MDE 10 machine we have for sale. Contact us for further details.
Overview
- brand: LIGMATECH
- year: 2001
- MODEL: Optimat MDE 10
- application type: Other Woodworking Machinery
- Location: Germany
- machine type: Other (Wood)
Technical Information - LIGMATECH Optimat MDE 10
Dimensions
- Machine Height: 1300 mm
- Machine Length: 2500 mm
Additional Information
Casing dimensions:
Length: 300–2500 mm
Height: 300–1300 mm
Depth: 120–600/800 mm
Pressing system:
Pressing forces generated electrically in both horizontal and vertical directions, adjustable separately
Vertical pressing via pressure plate
Horizontal pressing via 3 pressure cheeks on each side
Pressing is center-aligned at a zero line on the operator side
Positioning of pressure cheeks:
Upper pressure cheek: forced guidance on the upper pressure plate; optionally lowerable via a cylinder
Middle pressure cheek: freely programmable, motor-driven
Lower pressure cheek: freely programmable, movable via a common drive with the middle pressure cheek
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
