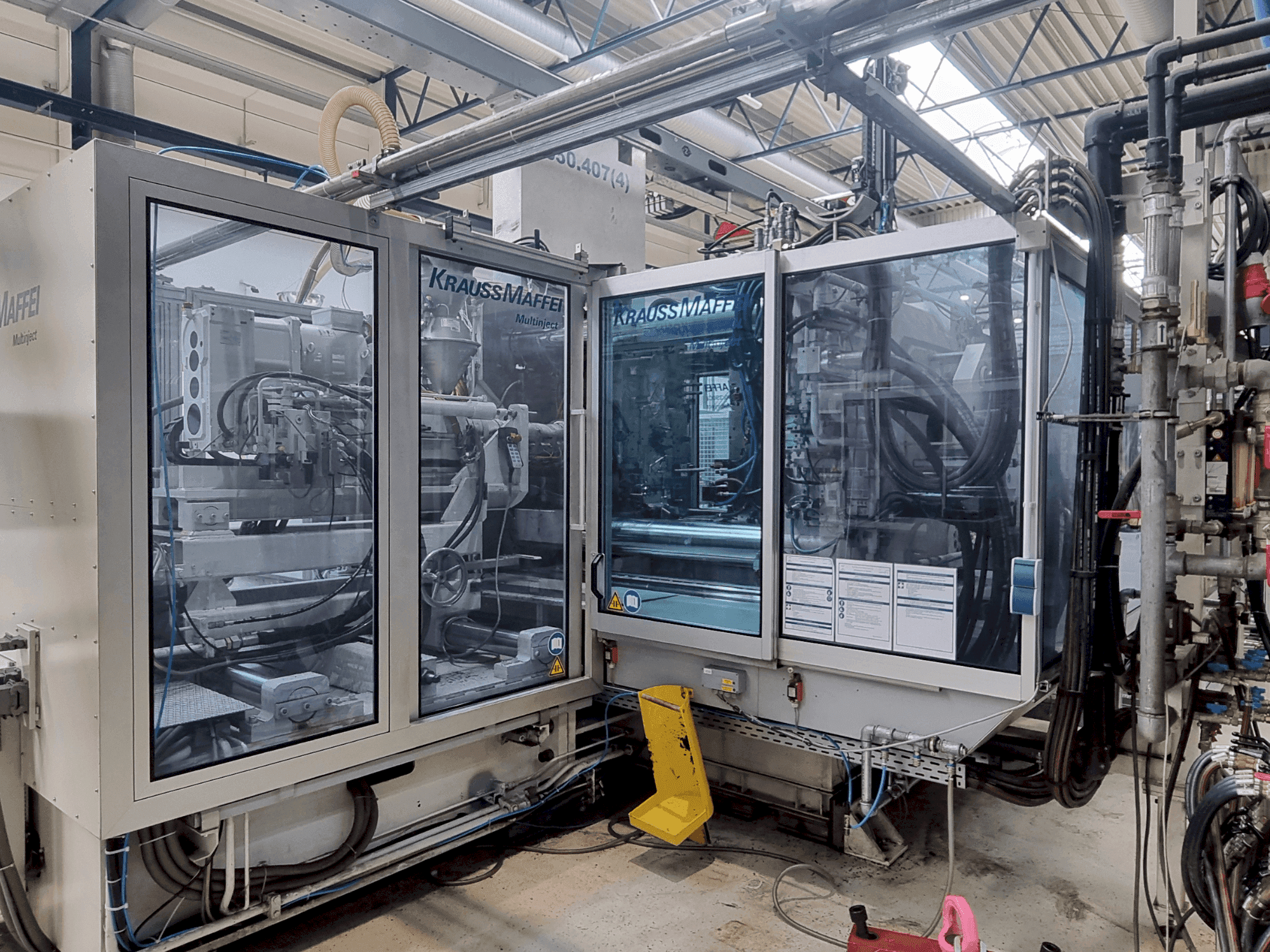

This plastic processing machine was manufactured in 2005 by Krauss Maffei. It features a clamping force of 6500 KN and a robust screw diameter of 80 mm for Injection Unit 1, ensuring efficient production capabilities. The machine also boasts a significant mould weight capacity up to 11400 kg and an opening stroke of 1300 mm. Ideal for those looking to enhance their production with a reliable machine. For more information about this plastic processing machine, please reach out to us.
Overview
- brand: Krauss Maffei
- year: 2005
- MODEL: 650-2700-390 CL
- application type: Injection Moulding
- Location: Germany
- machine type: Plastic Processing Machine
- availability: Immediately
Technical Information - Krauss Maffei 650-2700-390 CL
General Data
- Machine weight: 33370 kg
Control Unit
- Model: 2K
Injection Unit
- Screw diameter: 80 mm / 35 mm
- Stroke volume: 1433 cm³ / 155 cm³
- Injection pressure: 250 bar / 740 bar
- Plasticizing rate max.: 108 g/s / 22 g/s
Clamping unit
- Clamping force: 6500 KN
- Opening stroke: 1300 mm
- Max open daylight: 1842 mm
- Distance between bars: Horizontal: 1000 mm, Vertical: 930 mm
- Mould height min: 542 mm
Media
- Oil tank: 1240 liters
Additional Information
- - Machine still under power
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
