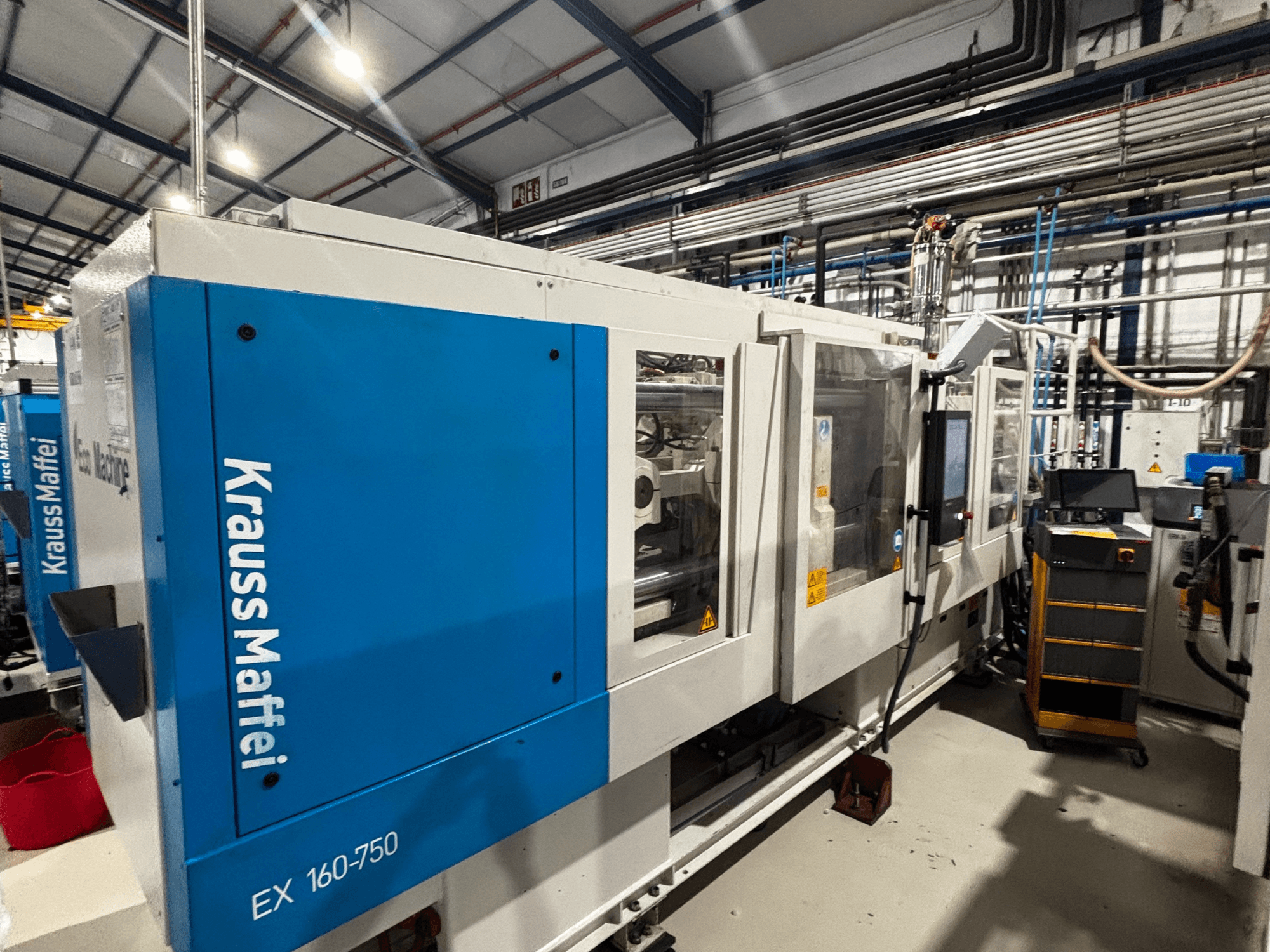

This 5s Krauss Maffei 160-750 EX was manufactured in 2015. It features a clamping force of 1600 kN and a fully electric drive system, ensuring efficient operation. The machine has a screw diameter of 45 mm and a calculated shot volume of 302 cm³, making it suitable for various injection molding applications. Consider the opportunity to buy this Krauss Maffei 160-750 EX electrical injection moulding machine. Contact us for further details.
Overview
- brand: Krauss Maffei
- year: 2015
- MODEL: 160-750 EX
- production hours: 74114
- application type: Injection Moulding
- Location: Spain
- machine type: Electrical Injection Moulding Machine
Technical Information - Krauss Maffei 160-750 EX
Technical Specification
- Clamping Force: 1600 kN
- Screw Diameter: 45 mm
Additional Information
Injection unit size: 750 (International size rating)
Drive system: Fully electric (EX series)
Calculated shot volume: 302 cm³
Max. injection pressure: 2429 bar
Distance between tie bars: 520 x 520 mm
Mold opening stroke: 450 mm
Mold height: min 200 mm, max 600 mm
Ejector stroke: 150 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
