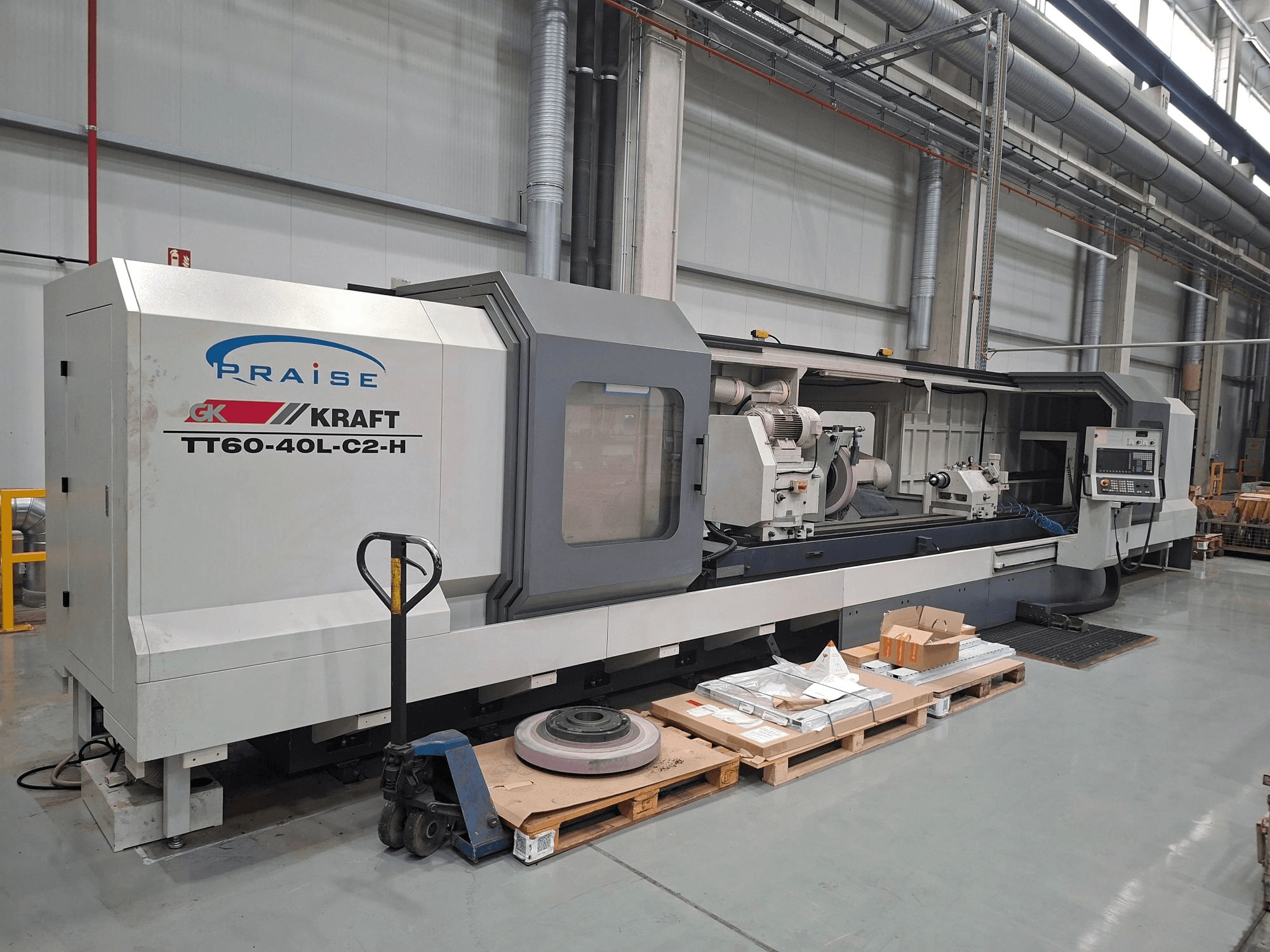

KRAFT - TT60-40L-C2-HDE-GRI-KRA-2017-00001

- Grinding Diameter: 600 mm

- Grinding Length: 4000 mm

- Center Height: 320 mm

- Max. Workpiece Weight (Between Centers): 3000 kg

- Max. Workpiece Weight (With Steady Rests): 6000 kg

- Grinding Wheel Diameter: 760 mm

- Grinding Wheel Width: 100 mm

- Grinding Wheel Speed: 45 m/sec

- Table Travel: 4400 mm

- Table Speed (Continuously Variable): 10 - 6000 mm/min

- Workpiece Drive Speed: 8 - 80 1/min

- Tailstock Quill Stroke: 100 mm

- Tailstock Quill Taper: 6 MK

- CNC Control: Siemens 828D with grinding cycles

- Guideways and Spindle Bearings: Hydrostatic

- Electrical Specification: Metric execution, 400V, 50 Hz, 3 Phases

- Included Equipment & Features:

* Hydraulically actuated tailstock quill

* CE execution

* Full enclosure

* Automatic coolant and lubrication system

* Manual grinding wheel dresser

* Grinding wheel flange

* Open steady rests (2 pcs)

* Magnetic and paper band filter

* Telescopic cover

* Live center (2 pcs)

* Set of operating tools

* Adjustable grinding headstock

* Faceplate

* Technical documentation in German
