KOVOSVIT MAS MCV 1270

Photo Gallery

KOVOSVIT MAS - MCV 1270SK-MIL-KOV-2016-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

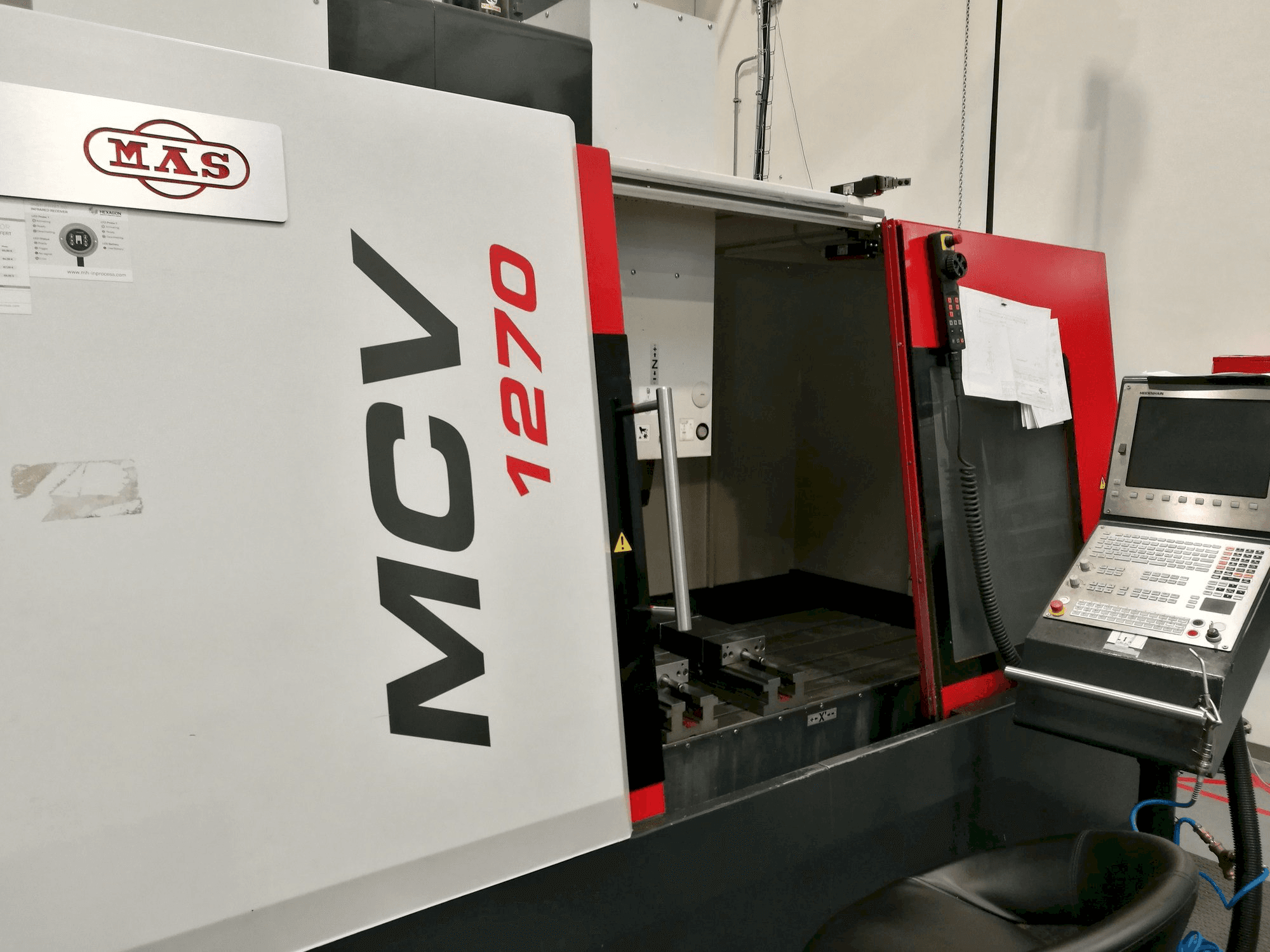

KOVOSVIT MAS MCV 1270 Milling Machine

Show in original language

This KOVOSVIT MAS MCV 1270 Milling Machine was manufactured in 2016 in the Czech Republic. It has a working record of only 5840 (1506 spindle) production hours. It is equipped with a HIEDENHAIN iTNC 530 HSCI control unit. This machine can work with a spindle speed range up to 8000 rpm, and incorporates a working table of 1500x670 mm. It includes a workpiece probe, and a tool probe. This KOVOSVIT MAS is like new.

Overview

brand: KOVOSVIT MAS
year: 2016
MODEL: MCV 1270
production hours: 5840
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - KOVOSVIT MAS MCV 1270

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530 HSCI

Dimensions

Machine Depth: 3600 mm
Machine Height: 3330 mm
Machine Weight: 11800 kg
Table Length: 1500 mm
Table Width: 670 mm

Movement

X-axis Travel: 1270 mm
Y-axis Travel: 610 mm
Z-axis Travel: 720 mm

Technical Specification

Max. Tool Weight: 15 kg
Spindle Speed: 8000 RPM
Tool Stations: 40

Additional Information

Additional equipment

Workpiece probe
Tool probe

Machine Benefits

Qualitative Machine Benefits

Machine like new

Technical Machine Benefits

Spindle power (s1/s6 - 40%) 28 / 43 kw
Spindle torque (s1/s6 - 40%) 406 / 623 nm
Work feed x, y, z 40000 mm. Min-1
Rapid feed x, y, z 40 m. Min-1
Thermal compensation
Handwheel
Automatic lubrication of moving parts
Direct measuring system
Cooling aggregate for external cooling

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
