➤ Used FERMAT VMF 1000 For Sale | gindumac.com

Show in original language

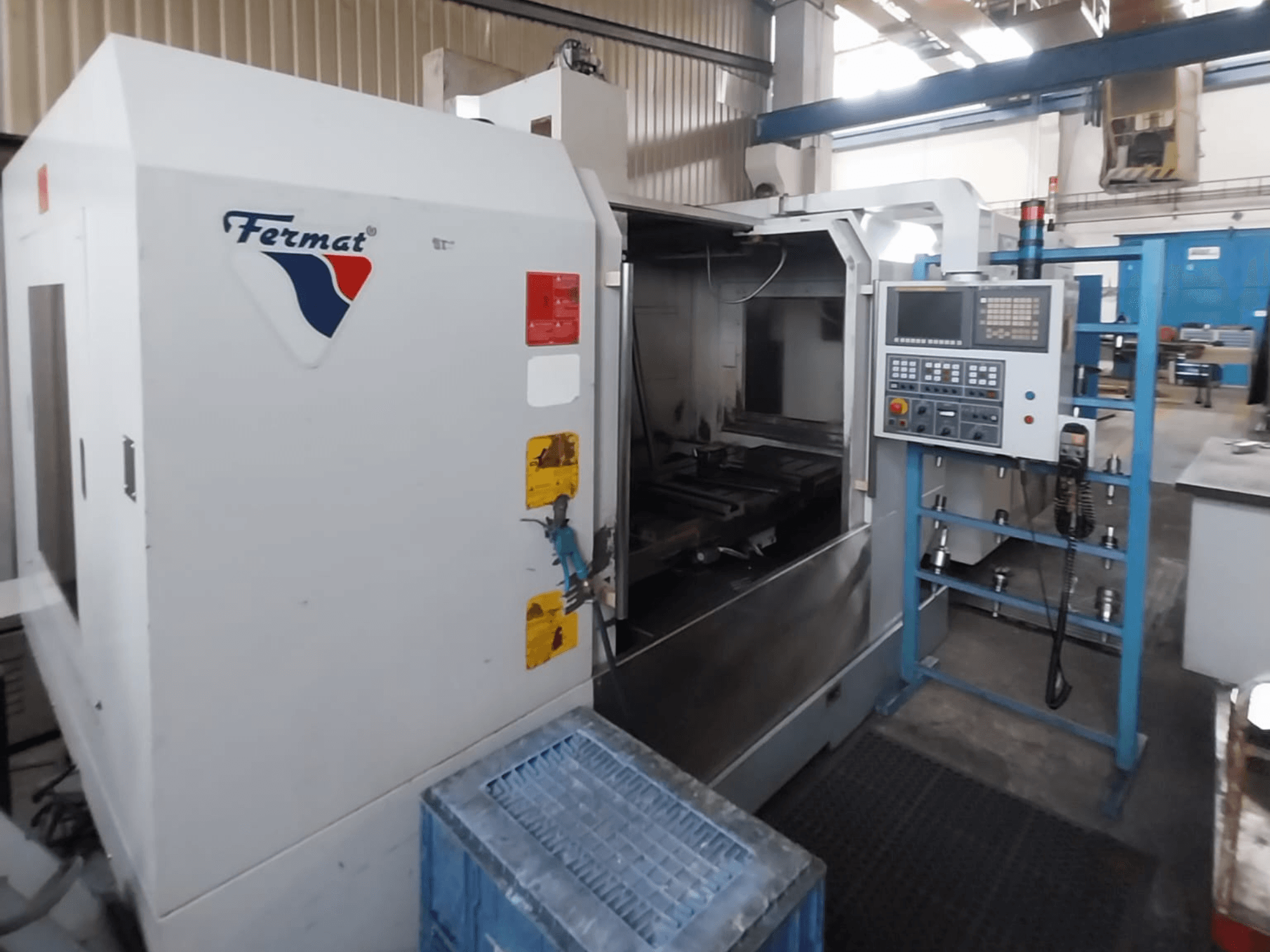

This 3-axis FERMAT VMF 1000 vertical machining centre was manufactured in 2008. It features a table size of 1300 x 600 mm and a maximum table load capacity of 800 kg. The machine offers impressive X, Y, and Z-axis travels of 1000 mm, 600 mm, and 570 mm, respectively. If you are looking to get high-quality machining capabilities, consider the FERMAT VMF 1000 machine we have for sale. Contact us for further details.

Overview

brand: FERMAT
year: 2008
MODEL: VMF 1000
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - FERMAT VMF 1000

Control Unit

Control Brand: FANUC
Control Model: Series Oi-MC

Dimensions

Machine Height: 2800 mm
Machine Length: 3300 mm
Machine Weight: 5500 kg
Machine Width: 2900 mm
Table Load: 800 kg

Movement

Number of Axes: 3
X-axis Travel: 1000 mm
Y-axis Travel: 600 mm
Z-axis Travel: 570 mm

Technical Specification

Max. Tool Weight: 8 kg
Spindle Power: 15 kW
Spindle Speed: 10000 RPM
Taper Size: ISO 40
Tool Stations: 24

Additional Information

Table dimensions: 1300 x 600 mm
Distance table to floor: 880 mm
T-slots (width x pitch x number): 16 x 86 x 5 mm
Spindle bearing inner diameter: 70 mm
Distance table to spindle: 115–685 mm
Main motor power: 11/15 kW (Standard), 12/16 kW (Standard), 15/18.5 kW (Optional)
X/Y/Z ball screw: Ø40 x P12 x C3
Drive type: Direct
XYZ rapid traverse: 24 m/min
XYZ max. working feed: 10 m/min
X-axis guideway (W x T x D): 80 x 35 x 460 mm
Y-axis guideway (W x T x D): 110 x 35 x 600 mm
Z-axis guideway (W x T x D): 80 x 35 x 300 mm
Tool shank: ISO 40
Tool change time (tool to tool): 4 sec
Magazine pocket pitch: 76.2 mm
Max. tool length: 300 mm
Positioning accuracy: ±0.005/300 mm
Repeatability: 0.005 mm
Compressed air pressure: 6 bar
Total power requirement: 35 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
