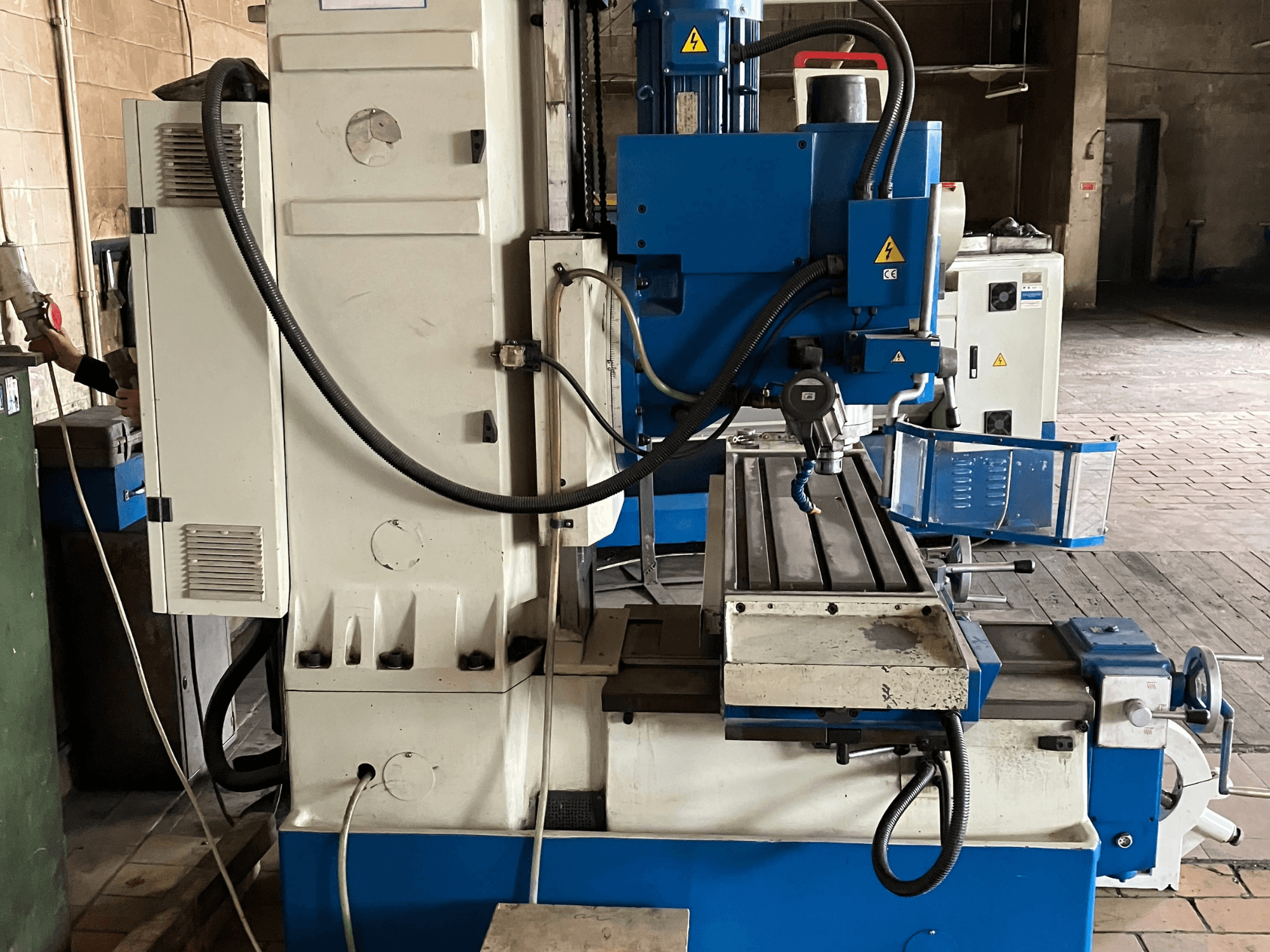

This 3-axis KNUTH KB 1400 was manufactured in 2018. It features a travel of 950 mm on the X-axis, 400 mm on the Y-axis, and 500 mm on the Z-axis. The machine is equipped with a spindle speed range of 30 to 1800 rpm and a table setup area of 1400 mm x 400 mm. If you are looking to get high-quality milling capabilities, consider the KNUTH KB 1400 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: KNUTH
- year: 2018
- MODEL: KB 1400
- application type: Milling
- Location: Romania
- machine type: Vertical Machining Centre
Technical Information - KNUTH KB 1400
Dimensions
- Machine Height: 2120 mm
- Machine Length: 2290 mm
- Machine Weight: 3660 kg
- Machine Width: 1770 mm
Movement
- Number of Axes: 3
- X-axis Travel: 950 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 500 mm
Technical Specification
- Spindle Speed: 1800 RPM
- Taper Size: SK 50
Additional Information
Feed
Feed speed X-axis: 18–627 mm/min
Feed speed Y-axis: 18–627 mm/min
Feed speed Z-axis: 18–627 mm/min
Rapid feed
Rapid feed X-axis: 1670 mm/min
Rapid feed Y-axis: 1670 mm/min
Rapid feed Z-axis: 1670 mm/min
Vertical milling head
Throat: 510 mm
Spindle speed (vertical): 30–1800 1/min (rpm)
Quill stroke: 105 mm
Head swivel range: ±30°
Working area
Spindle axis-to-table surface distance: 150–650 mm
Table set-up area: 1400 × 400 mm
Number of T-slots: 3
T-slot width: 18 mm
T-slot spacing: 100 mm
Speed height-adjustment (max.): 1670 mm/min
Coolant pump flow rate: 12 l/min
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
