Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Kitamura - HX400IES-MIL-KIT-2001-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Kitamura HX400I For sale | gindumac.com

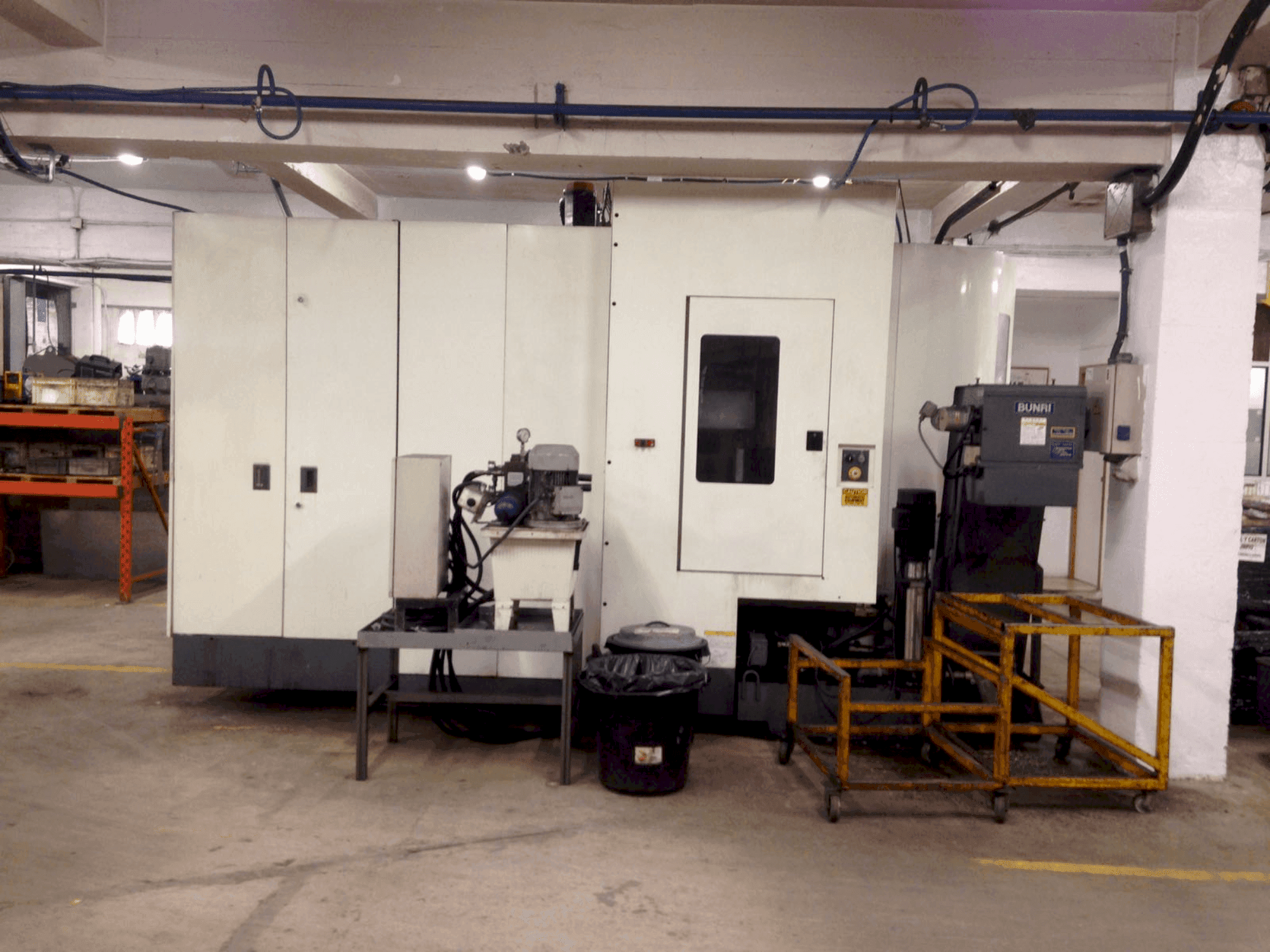

This 4-axis Kitamura HX400I horizontal machining center was manufactured in 2001. It features a table work area of 400 x 400 mm, a maximum work size of 610 x 960 mm, and a table load capacity of 400 kg. The machine includes a tool storage capacity of 50 tools with a random selection method. Ideal for complex machining tasks, the Kitamura HX400I machine we have for sale. Contact us for further details regarding this horizontal machining center.
Overview
- brand: Kitamura
- year: 2001
- MODEL: HX400I
- application type: Milling
- Location: Spain
- machine type: Horizontal Machining Centre
- availability: Sold
Technical Information - Kitamura HX400I
General Data
- Machine weight: 16,000 KG
Main drive
- Spindle speed range: 35-13,000 1/MIN
- Tool taper: NST NO.40
Movement
- X-AXIS Movement: 660 mm
- X-AXIS Rapid traverse: 50 mm/min
- Y-AXIS Movement: 610 mm
- Z-AXIS Movement: 560 mm
Workpiece
- Workpiece x: Max 610 mm
- Workpiece y: Max 960 mm
Table
- Outer length: 400 mm
- Outer width: 400 mm
- Min distance between vertical spindle and table: 50 mm
- Max distance between vertical spindle and table: 660 mm
- Table load: 400 kg
Tools
- Slots in storage: 50
- Max weight: 10 kg
- Max tool diameter: 95 mm
Additional Information
- Technical Machine Benefits:
- - Table indexing 4th axis: 0. 001º
- - Distance from table center to spindle nose: 150 - 710 mm
- - Tool selection method random, tool identified at magazine
- - Max. Tool size: 95 mm x 360mm
- - High precision 4th axis indexing, large tool storage capacity.
- - Tool change time: 1 sec
- Qualitative Machine Benefits:
- - Accommodates a variety of workpieces, precise positioning capabilities.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
