KERN - KER60120-KT500 OPFAT-CUT-KER-2022-00001

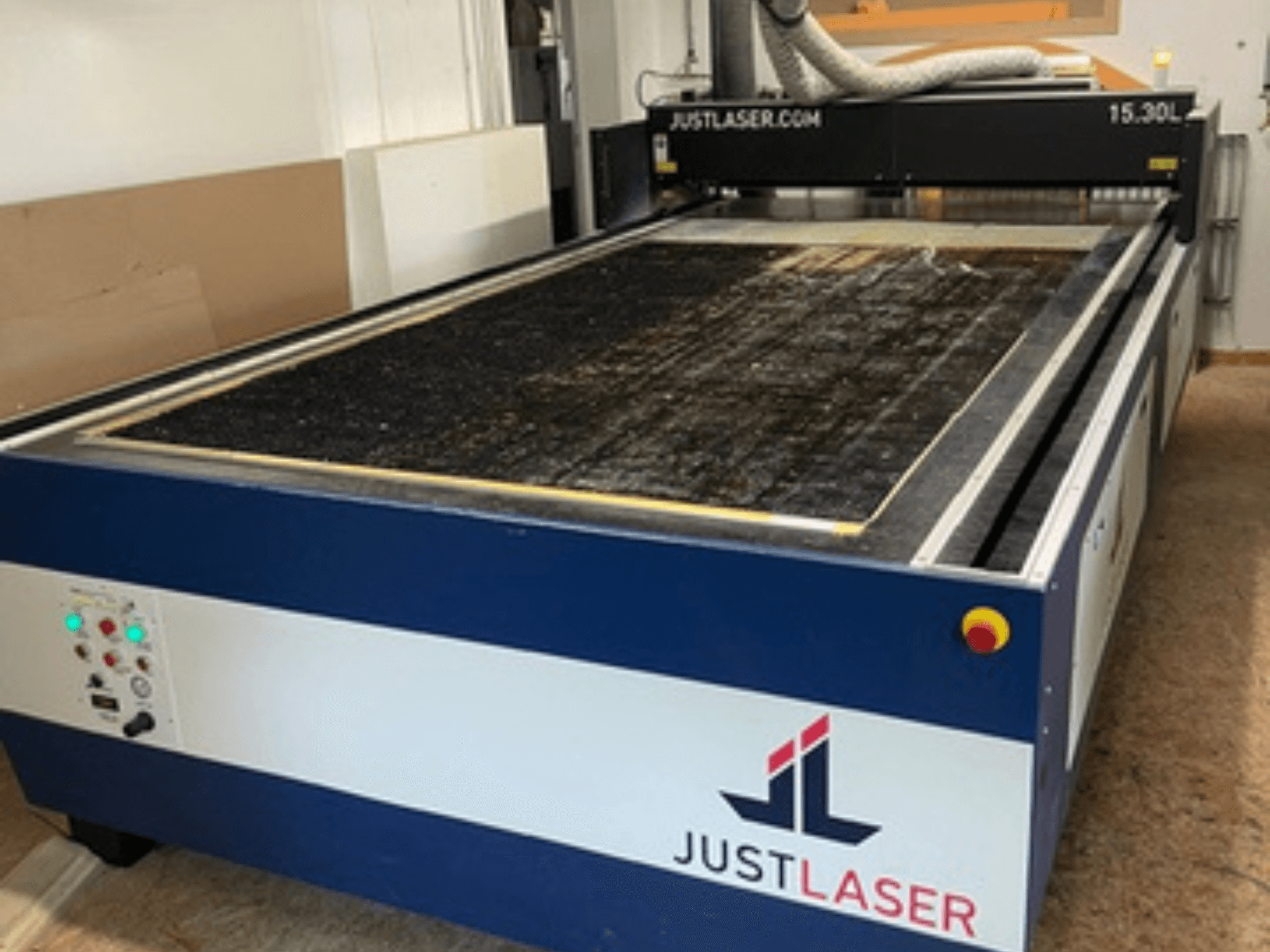

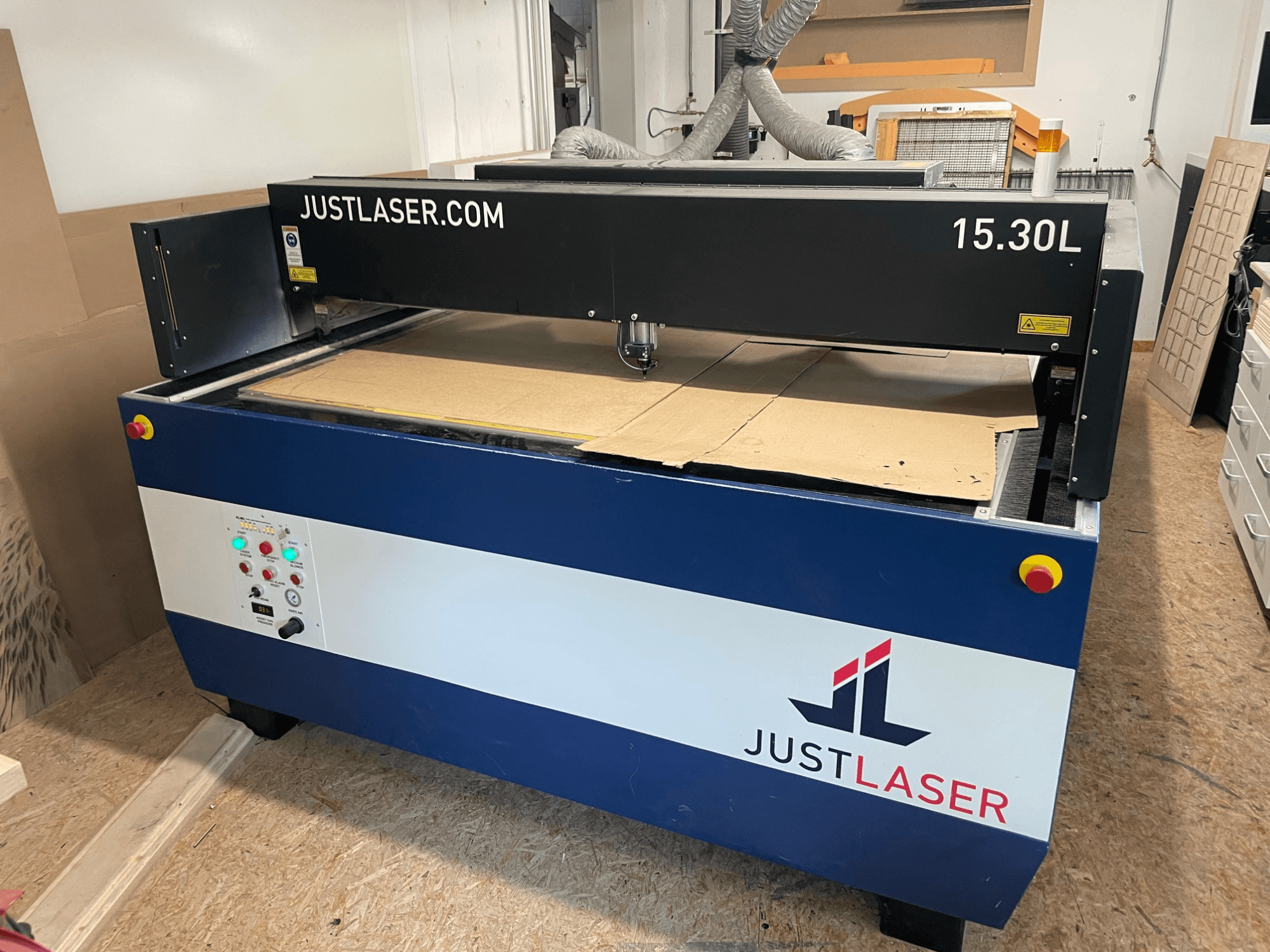

Machine – JustLaser 15.30L-C500-MC

• Machine Type: CO₂ Laser Cutting and Engraving System

• Configuration: Open Flatbed Gantry Laser System

• Maximum Workpiece Height: 50 mm

• Maximum Engraving Speed: 3.8 m/s

• Maximum Engraving Speed (Metal Cutting Option): 3.2 m/s

• Maximum Engraving Speed (Z12 Option): 1.5 m/s

• Maximum Cutting Speed: 0.5 m/s

• Motors: Brushless DC Servo Motors

• Encoder System: Incremental Measurement System

• Optics: Air-purged telescope, lenses and mirrors

• Standard Lens: 2.5"

• Optional Lens: 5.0"

• Software: KCAM Laser Software

• Interface: G-Code, HPGL, AD-Logic System

• Control Board: KLCM Controlboard

• Operator Controls: Key Switch, Emergency Stop, Mouse, Keyboard, Monitor and PC Included

• Electrical Supply: 3 × 400 V (3L + N + PE), 50/60 Hz

• Table Exhaust Requirement: 3000 m³/h

• Axis Exhaust Requirement: 1500 m³/h

• Maximum Air Pressure: 10 bar

• Maximum Inlet Pressure: 12 bar

• Maximum Air Flow: 240 l/min

• Connection Size: 6 mm

• Noise Level: 55 dB

• Certification: CE

• Operating Temperature: +15 °C to +25 °C

• Humidity: 40–70 % Non-Condensing

• Environment: Dust-Free

• Active Laser Protection Shield

• Pressure Sensors

• Light Curtain

• Interlock Safety System

• Metal Cutting Option Included

• Capacitive Height Follower

• Metal Cutting Table

• Copper Nozzle

• 2.5" Lens Set

• k-vision Print & Cut Camera System

• JustAIR High Performance Turbines (2 × 1500 m³/h)

Laser Source – Kern Laser Systems

• Model: KER50120-4K500 OPP

• Laser Type: Sealed-off CO₂ Laser

• Laser Power: 500 W (0.5 kW)

• Laser Wavelength: 10.6 µm

• Supply Voltage: 380–415 VAC

• Phase: 3 Phase (4 Wire + Ground)

• Frequency: 50/60 Hz

• Maximum Fuse Size: 40 A

• Full Load Current: 32.3 A

• Disconnect Rating: 40 A

• Short Circuit Current Rating: 5000 A

• Interrupt Capacity: 35000 A

• Largest Amp Load: 16 A

• Laser Class: Class 4

• Country of Manufacture: USA

Chiller – SMC HRS090-AF-40

• Cooling Type: Water Cooling

• Cooling Capacity: 5 kW

• Refrigerant: R410A

• Refrigerant Charge: 1.5 kg

• Weight: 136 kg

• Power Supply: 3~ 380–415 V, 50/60 Hz
