KELLENBERGER 100

Photo Gallery

KELLENBERGER - 100NL-GRI-KEL-2020-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used KELLENBERGER 100 For Sale | gindumac.com

Show in original language

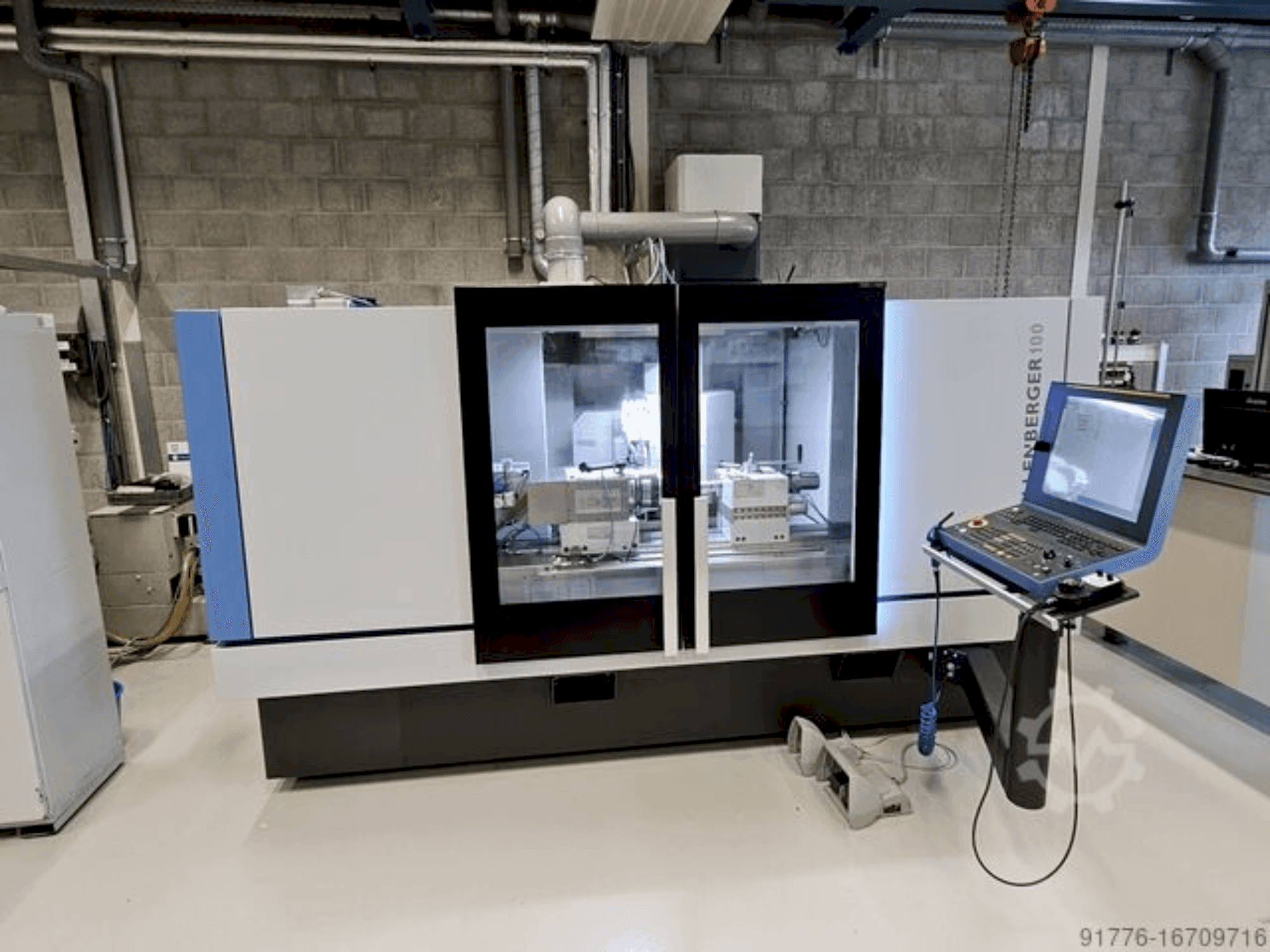

This cylindrical grinding machine was manufactured in 2020. It features a robust KELLENBERGER 100 design with a CNC Control Fanuc 31i-B, advanced graphic-interface, and a wheelhead UR-RS 1-5-6. It supports non-cylindrical contour grinding and has a grinding wheel flange of Ø 203.2 mm. Consider the opportunity to buy this KELLENBERGER 100 cylindrical grinding machine. For more information about this machine, please reach out to us.

Overview

brand: KELLENBERGER
year: 2020
MODEL: 100
production hours: 1700
application type: Grinding
Location: Netherlands
machine type: Cylindrical Grinding Machine
control unit brand: FANUC

Technical Information - KELLENBERGER 100

Control Unit

Control Brand: FANUC
Control Model: 31i

Technical Specification

Spindle Speed: 90000 RPM

Additional Information

Additional equipment

Profibus Interface for Handling System
Electrical Driving Unit for Automatic Sliding Door
Two-Stage Foot Switch for Permission

Machine Benefits

Qualitative Machine Benefits

Kellenberger advanced graphic-interface
Module for non-cylindrical contour grinding
Numerically controlled b-axis direct drive
Wheelheads and equipment: ur-rs 1-5-6 wheelhead
Reinforced workhead direct drive 150 with c-axis
Coolant supply through workhead spindle
Dressing device on upper table
Form dresser for internal and external grinding
8-m multi-grain diamond (free cut)
Coolant filter units: paper band filter 480 litres / spb 5 full machine enclosure for emulsion prep for mist collector

Technical Machine Benefits

Grinding wheel flange: diameter 203. 2 mm, cone 63
Oil-air lubrication
Swivelling diamond holder: diameter 9. 525 mm
Single-point profiling diamond: diameter 9. 525 mm
Form roll Ø100/120x17x40h5 x=5 w=2/2. 5
Tactile measuring head on wheelhead
Wheel and workpiece contact sensor on workhead 150
Measuring control units: movomatic esz 400 or marposs p7 me
Fluid contact sensor with magnetic base
Balancing units for two external grinding wheels

Extra Information

Machine still under power Software: Module for Out of Round Grinding X/C Interpolation RED Solution - HMI GRAPHIC Guide for 2D Component Drawings and DXF Data ICON Guide for ISO-Based Program Design APP Out Of - Round for Non-Circular Contours (Rectangle, Polygon, etc.) Tailstock 150 with Pneumatic Sleeve Retraction Sleeve Taper: Morse 4 Sleeve Stroke: 50 mm Peak Force Adjustable 200-700 N Max. Loading Capacity: 150 kg Pneumatic Assistance and Micro-Adjustment for Fine Correction Clamping Devices: Quickchange System from Erowa Heyn 3-Jaw Chuck Collet Adapter Magnetholder

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
