➤ Used Johnford SL60-AC For Sale | gindumac.com

Show in original language

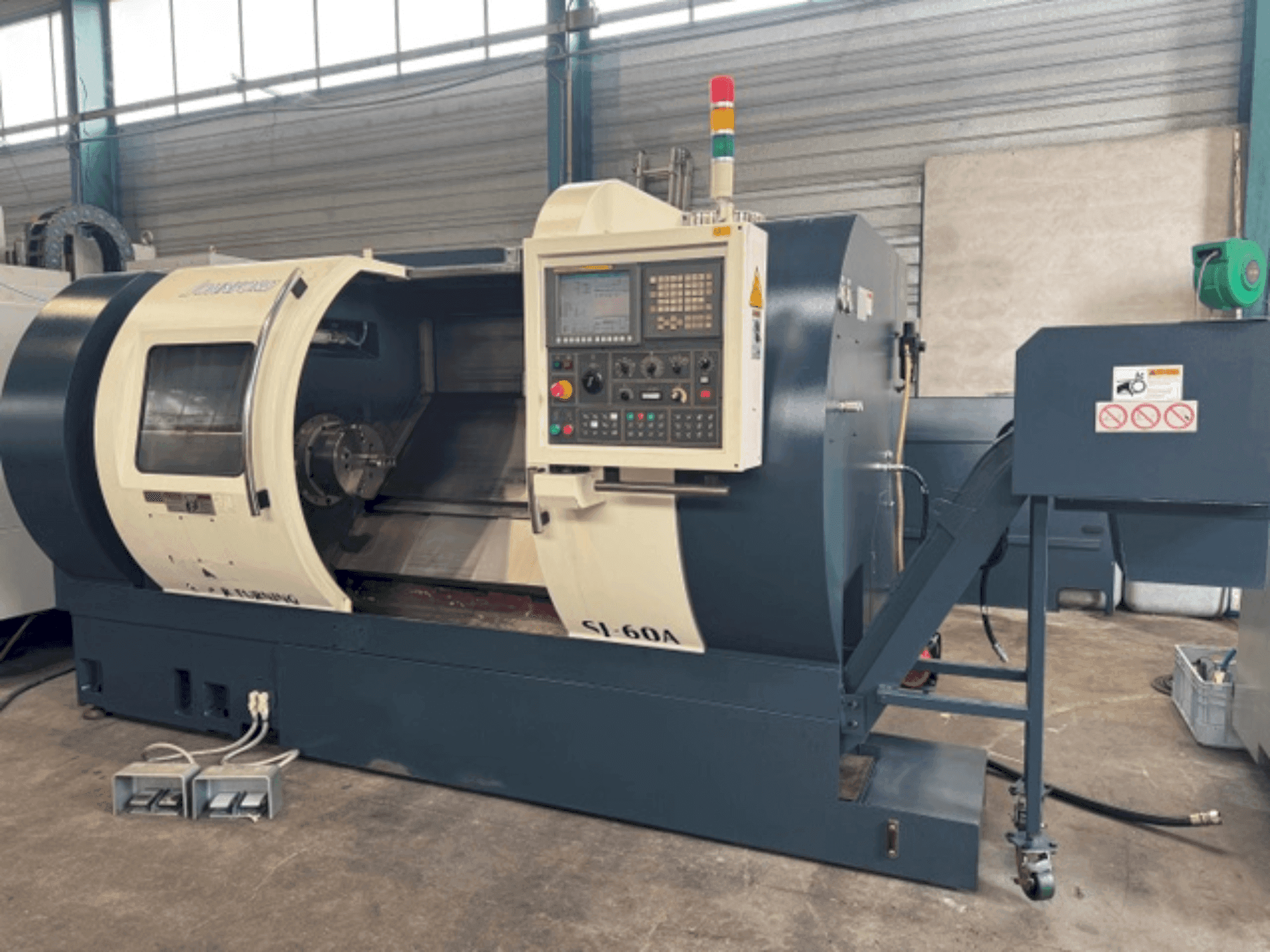

This 3-axis Johnford SL60-AC was manufactured in 2008. It features a 580 mm passage over bench, 450 mm over carriage, and a bar capacity of 91 mm. The spindle supports speeds up to 3000 rpm with a 22/26 kW motor. Includes a 12-station VDI40 turret, all motorized, and a programmable tailstock with a 900 mm stroke. Equipped with a FANUC Oi-TC CNC, chip conveyor, and a coolant system. Contact us for more information about this machine.

Overview

brand: Johnford
year: 2008
MODEL: SL 60A CS
production hours: 8438
application type: Turning
Location: France
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Johnford SL 60A CS

Control Unit

Control Brand: FANUC
Control Model: Series Oi-TC

Movement

Number of Axes: 3

Technical Specification

Spindle Speed: 3000 RPM

Additional Information

Additional equipment

Air-conditioned cabinet
3-jaw quick-change hydraulic chuck ø 300 mm, adjustable pressure
Set of hard jaws and large set of soft jaws
Turning point
Lighting system
Coolant system
Centralized lubrication
3-color status light
Full documentation

Machine Benefits

Qualitative Machine Benefits

Machine in excellent condition

Technical Machine Benefits

Passage over bench: 580 mm
Passage over carriage: 450 mm
Bar capacity: 91 mm
12-station vdi40 turret, all motorized
3 radial motorized tool holders
3 axial motorized tool holders
32 axial and radial toolholders
Programmable adjustable pressure tailstock, 900 mm stroke
Quill stroke: 100 mm
Spindle nose: a2-8

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
