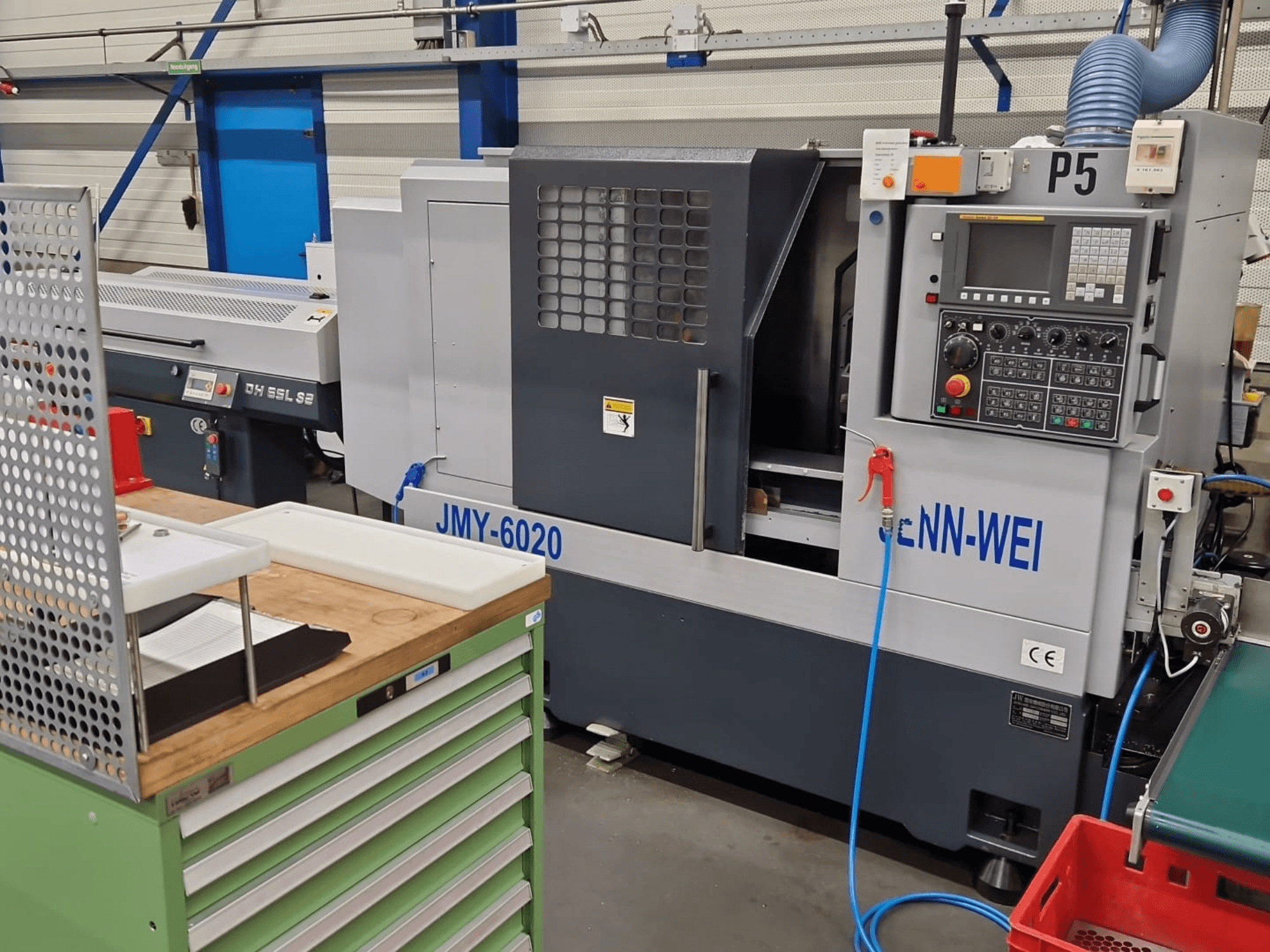

This 3s JENN-WEI JMY-6020 horizontal turning machine was manufactured in 2015. It features a maximum turning diameter of 180 mm and a turning length of 300 mm, with a spindle speed of 5,000 rpm. The machine is equipped with a Fanuc Oi-TD control and includes a bar feeder, extraction system, and chip conveyor. If you are looking to get high-quality turning capabilities, consider the JENN-WEI JMY-6020 machine we have for sale. Contact us for further details.
Overview
- brand: JENN-WEI
- year: 2015
- MODEL: JMY-6020
- production hours: 52333
- application type: Turning
- Location: Netherlands
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - JENN-WEI JMY-6020
Control Unit
- Control Brand: FANUC
- Control Model: 0i-TD
Movement
- Number of Axes: 3
- X-axis Travel: 170 mm
- Y-axis Travel: 90 mm
- Z-axis Travel: 300 mm
Technical Specification
- Spindle Power: 22 kW
- Spindle Speed: 5000 RPM
Additional Information
Max. turning diameter: 180 mm
Max. turning length: 300 mm
Rapid traverse: X 20 m/min, Z 24 m/min, Y 10 m/min
Drive: Direct drive on all axes
A2-6 spindle nose, 60 mm bar bore
Turret: VDI-30 driven, 20 positions, tool holder 20 mm, round tool 25 mm, 2.2/3.7 kW
Power-on time: approx. 52,333 hours
Production run: approx. 900,000 items
Additional equipment
Bar feeder
Extraction system
Chip conveyor
Green discharge conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
