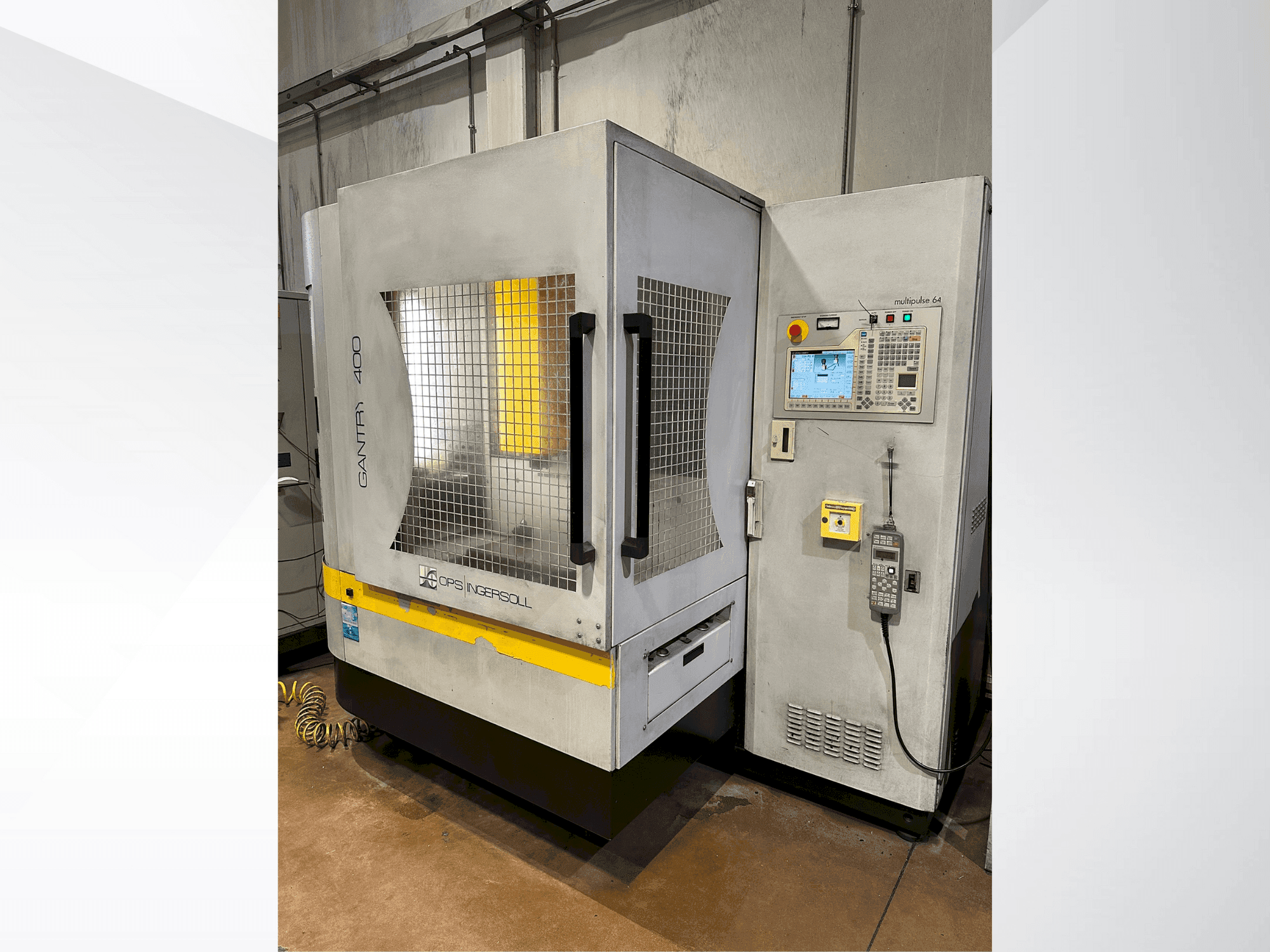

Front view of INGERSOLL Gantry 400 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

INGERSOLL Gantry 400

Photo Gallery

INGERSOLL - Gantry 400IT-EDM-ING-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used INGERSOLL Gantry 400 For Sale | gindumac.com

Show in original language

This 4-axis INGERSOLL Gantry 400 die-sinking EDM machine was manufactured in 2002. Consider the opportunity to buy this INGERSOLL Gantry 400 die-sinking EDM machine. Contact us for more information about this machine.

Overview

brand: INGERSOLL
year: 2002
MODEL: Gantry 400
application type: EDM
Location: Italy
machine type: Die-Sinking EDM Machine

Technical Information - INGERSOLL Gantry 400

Dimensions

Table Length: 550 mm
Table Load: 500 kg
Table Width: 470 mm

Movement

Number of Axes: 4
X-axis Travel: 420 mm
Y-axis Travel: 300 mm
Z-axis Travel: 400 mm

Additional Information

Additional equipment

Mecatool Electrode Holders (various sizes): 200 pieces
Chiller Refrigerator: Model ZCM103-O

Machine Benefits

Technical Machine Benefits

Z-axis rapid jump speed: up to 18000 mm/min
Minimum/maximum distance between table and electrode: 135 mm / 535 mm
Maximum electrode weight: 15 kg
Work tank dimensions: 650 x 500 x 340 mm
Electrode changing system: 20-position tool changer
Numerical control: pc-nc-dialogue 2 x 32 bit
Drive type: ac digital servo drives

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
