Hyundai Wia - L300LMAHU-TUR-HYU-2017-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Hyundai Wia L300LMA Horizontal Lathe
Show in original language

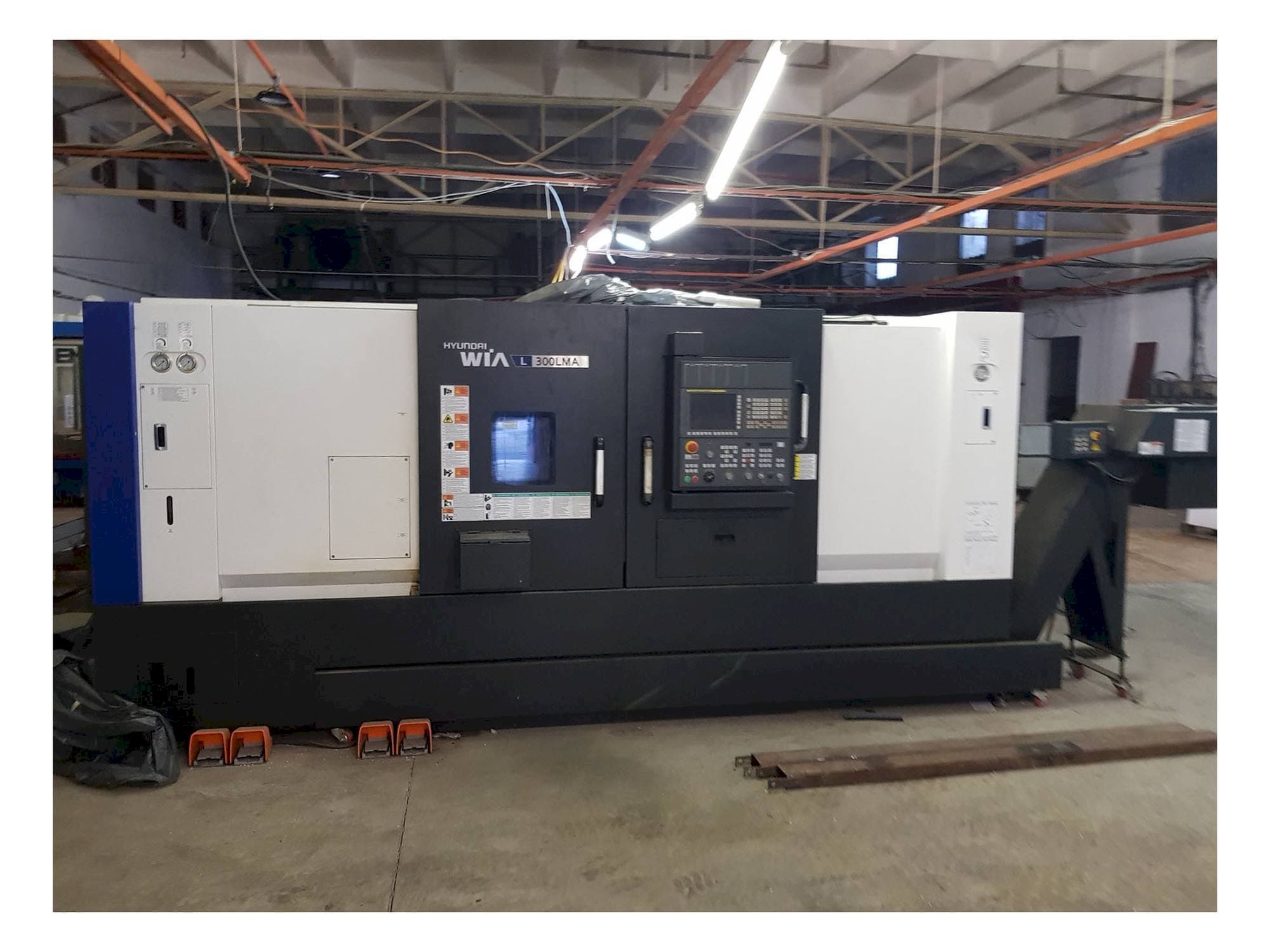

This Hyundai Wia L300LMA Horizontal Lathe was made in 2017 in Korea and has only 421 production hours. It is equipped with a Fanuc Series 32i-B control unit. The machine has a spindle speed of 3500 rpm.
Overview
- brand: Hyundai Wia
- year: 2017
- MODEL: L300LMA
- production hours: 421
- application type: Turning
- Location: Hungary
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Hyundai Wia L300LMA
Control Unit
- Control Brand: FANUC
- Control Model: Series 32i-B
Dimensions
- Machine Depth: 4171 mm
- Machine Height: 1997 mm
- Machine Weight: 7700 kg
Technical Specification
- Number of Tools: 12
- Spindle Power: 22 kW
- Spindle Speed: 3500 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Lubricant tank volume: 1,8 l
- Coolant tank volume: 270 l
Technical Machine Benefits
- Diameter over machine bed: 750 mm
- Diameter over cross slide: 480 mm
- Max. Machinable diameter: 410 mm
- Max. Machinable length: 1280 mm
- Chuck size main spindle: 10
- Torque (max/running) {nm} 493,2/414,7
- Max. Tool size (square tool clamp/circular tool clamp): 25/50 mm
- Speed (x/z/b): 20/24 m/min
- Range of motion (x/z/b) : 290/1350 mm
- Range of movement of clamping of segment: 1350 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
